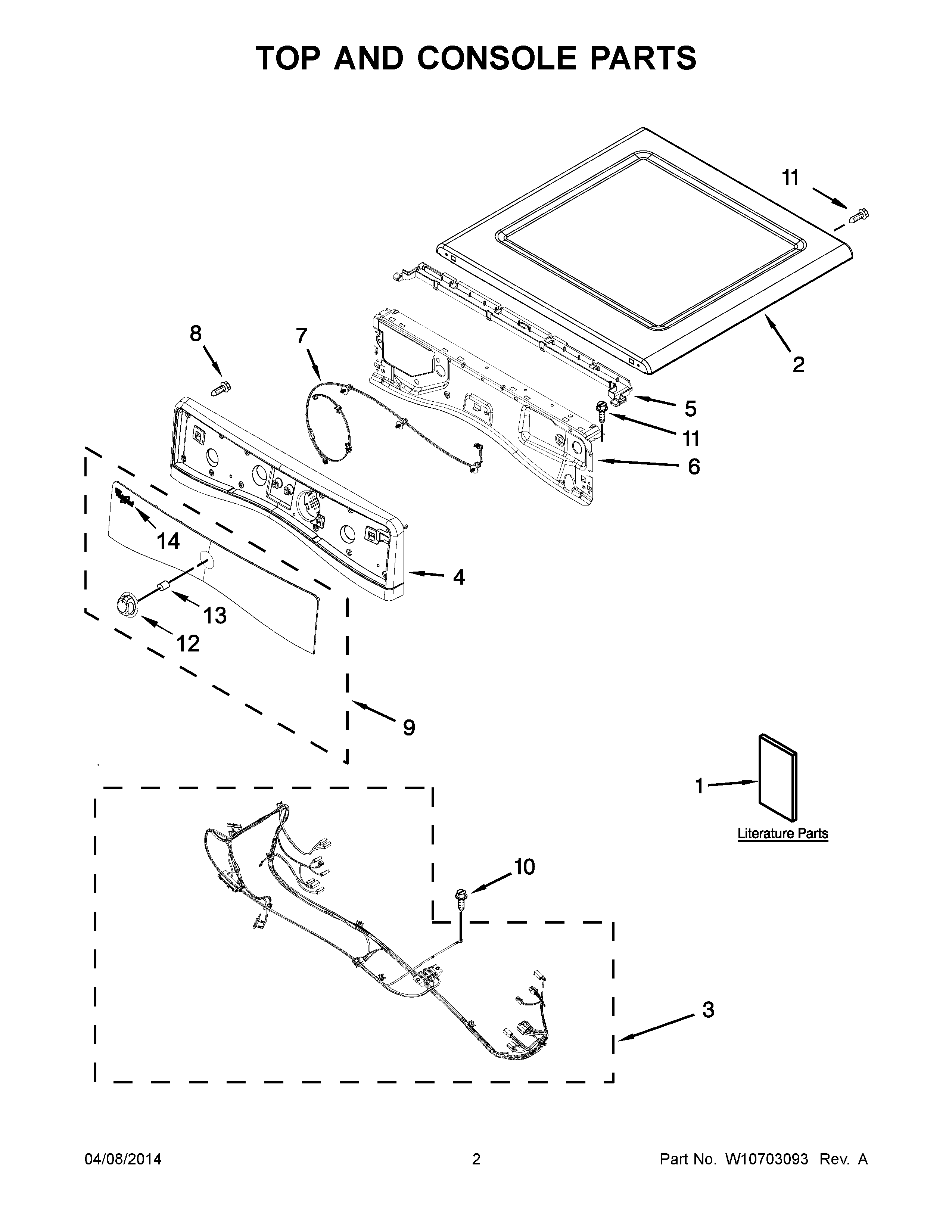

WGD8740DC0 02 – TOP AND CONSOLE PARTS

WGD8740DC0 02 – TOP AND CONSOLE PARTS

Written by

in

WGD8740DC0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1WIRING DIAGRAM
1QUICK START GUIDE
1INSTALLATION INSTRUCTIONS
1TECH SHEET
2WPW10208383 Whirlpool Top Panel
2WPW10460919 Whirlpool Top
3HARNESS, MAIN WIRING
4WPW10446407 Whirlpool Console
4WPW10463687 Whirlpool Console Assembly
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W10837344 Whirlpool Wire Harness
8WP489463 Whirlpool Refrigerator Screw
9W10861218 Whirlpool Control Panel
9IML ASSEMBLY (CHROME SHADOW)
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12WPW10631127 Whirlpool Knob
12W10875909 Whirlpool Timer Knob
13WP8536939 Whirlpool Spring Clip
14W11178521 Whirlpool Dishwasher Nameplate
