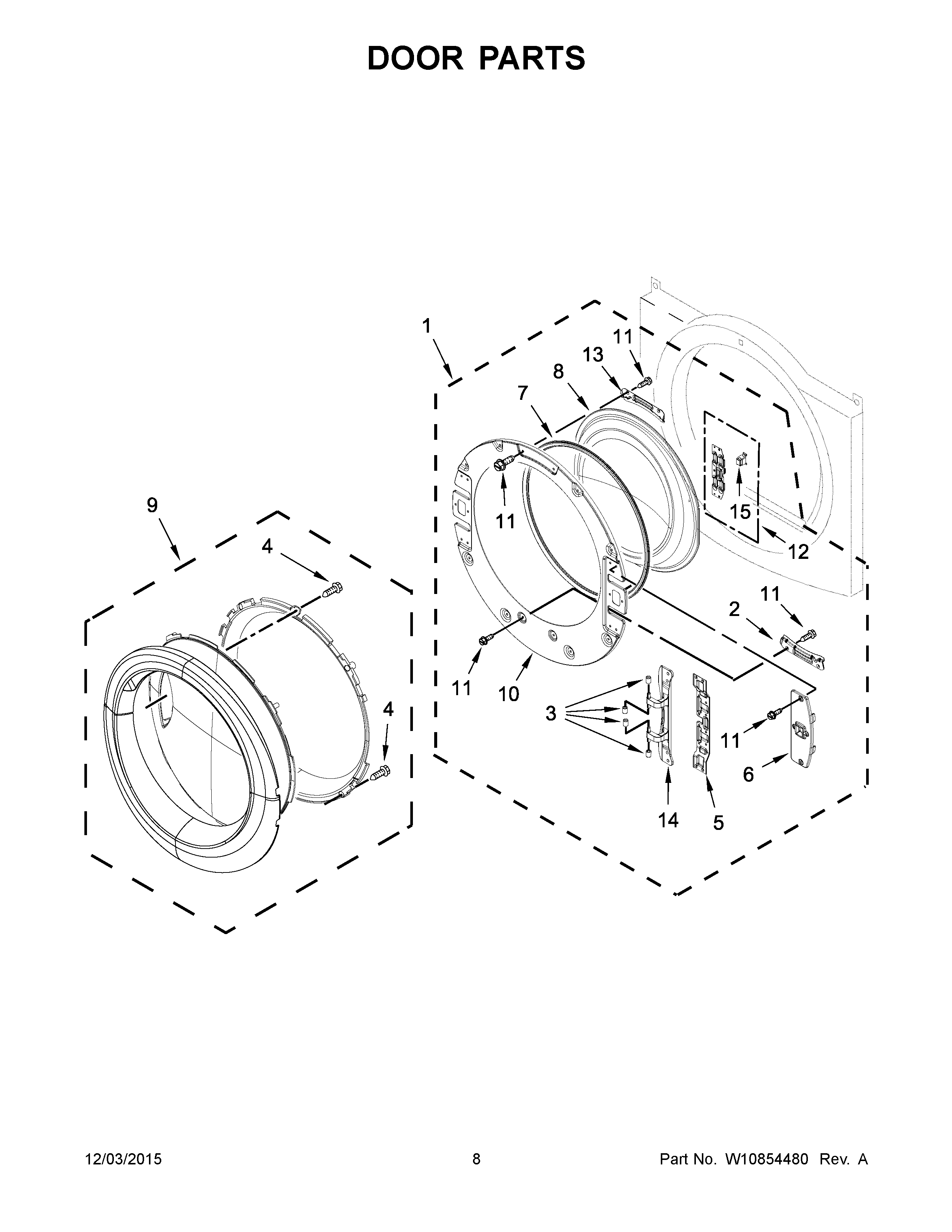

WGD87HEDC1 05 – DOOR PARTS

WGD87HEDC1 05 – DOOR PARTS

Written by

in

WGD87HEDC1 05 – DOOR PARTS

Products

PositionProduct
2HINGE
3WPW10208398 Whirlpool Hinge Pin Cap
4SCREW
5WPW10208419 Whirlpool Plate
6W10772469 Whirlpool Door Catch Cover
7W11126230 Whirlpool Seal
8W10823368 Whirlpool Window Assembly
9W10877391 Whirlpool Door Assembly
10DOOR, INNER
11SCREW
12WPW10208254 Whirlpool Catch
13W10208252 Whirlpool Retainer
14HINGE
15W11240283 Whirlpool Catch Assembly
