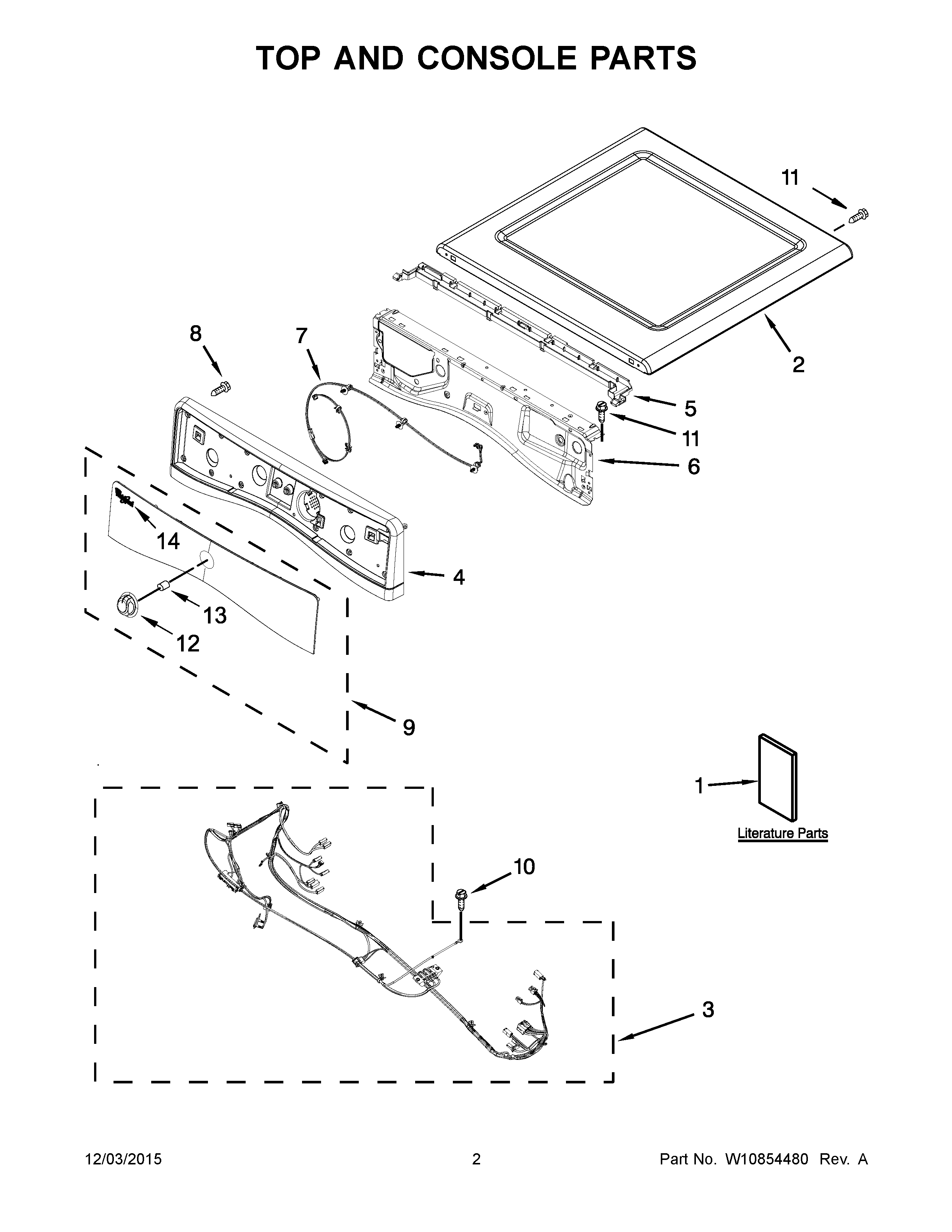

WGD87HEDW1 02 – TOP AND CONSOLE PARTS

WGD87HEDW1 02 – TOP AND CONSOLE PARTS

Written by

in

WGD87HEDW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1CQUICK START GUIDE
1ATECH SHEET
1BINSTALLATION INSTRUCTIONS
2AWPW10460919 Whirlpool Top
2WPW10208383 Whirlpool Top Panel
3HARNESS, MAIN WIRING
4AW10876224 Whirlpool Console
4WPW10391519 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W10837344 Whirlpool Wire Harness
8WP489463 Whirlpool Refrigerator Screw
9W11126011 Whirlpool Control Panel
9AIML ASSEMBLY (CHROME SHADOW)
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10875909 Whirlpool Timer Knob
12AWPW10631127 Whirlpool Knob
13WP8536939 Whirlpool Spring Clip
14W11178521 Whirlpool Dishwasher Nameplate
