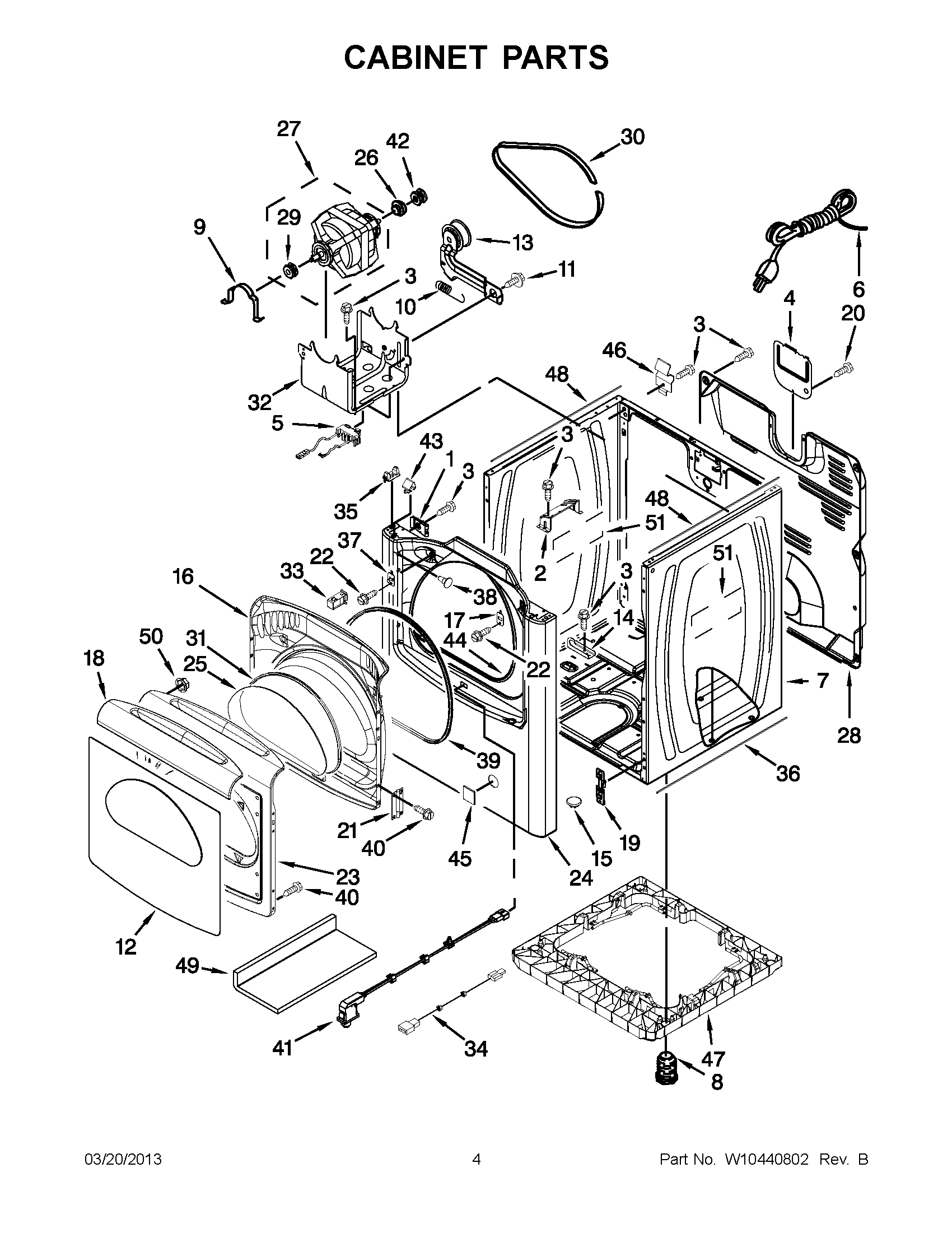

WGD8800YW0 02 – CABINET PARTS

Products

PositionProduct
1Clip, Ground (2)
2BRACKET, BURNER
3WP3390631 Whirlpool Screw
4W11736322 Whirlpool Cover Assembly
5WPW10411937 Whirlpool Switch
6W11222083 Whirlpool Power Cord
7W10223154 Whirlpool Cabinet Assembly
7W10391494 Whirlpool Cabinet
8W10813918 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WINDOW, OUTER DOOR
13WPW10547292 Whirlpool Dryer Idler Pulley
14BRACKET-GAS PIPE
158578560 Whirlpool Plug
16DOOR, INNER (WHITE)
17WPW10111888 Whirlpool Plate Assembly
18WPW10402478 Whirlpool Handle
19W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
20W10850756 Whirlpool Screw
21HINGE ASSEMBLY (CHROME SHADOW)
21WP8565018 Whirlpool Hinge
22WP3400805 Whirlpool Screw Assembly
23DOOR, OUTER (CHROME SHADOW)
23DOOR, OUTER (WHITE)
24W10312757 Whirlpool Oven Panel
24FRONT PANEL (CHROME SHADOW)
25WPL 8558846
26WP3393657 Whirlpool Belt Retainer
27WPW10448896 Whirlpool Drive Motor
28Panel, Rear
29PULLEY, BLOWER
30WP8547157 Whirlpool Dryer Drum Drive Belt
31W10076050 Whirlpool Gasket
32BRACKET, MOTOR
33WPW10111905 Whirlpool Dryer Door Catch
34JUMPER, DOOR
35WP8568303 Whirlpool Lock Assembly
36WPW10224768 Whirlpool Foam Spill Guard Seal
37W10295405 Whirlpool Strike
38PLUG, HOLE
39W10239307 Whirlpool Door Seal
40WP488627 Whirlpool Refrigerator Screw
41W10318609 Whirlpool Dryer Door Switch
42WP8547171 Whirlpool Motor Pulley
43WP8576625 Whirlpool Lock
44W10044490 Whirlpool Seal Assembly
45W10811916 Whirlpool Plug
45W10391496 Whirlpool Plug
46WP8066217 Whirlpool Hinge
47W10838688 Whirlpool Base
48WPW10157932 Whirlpool Seal Foam
49W11037143 Whirlpool Shield
50WP308499 Whirlpool Nut
51W10123957 Whirlpool Sound Absorber
