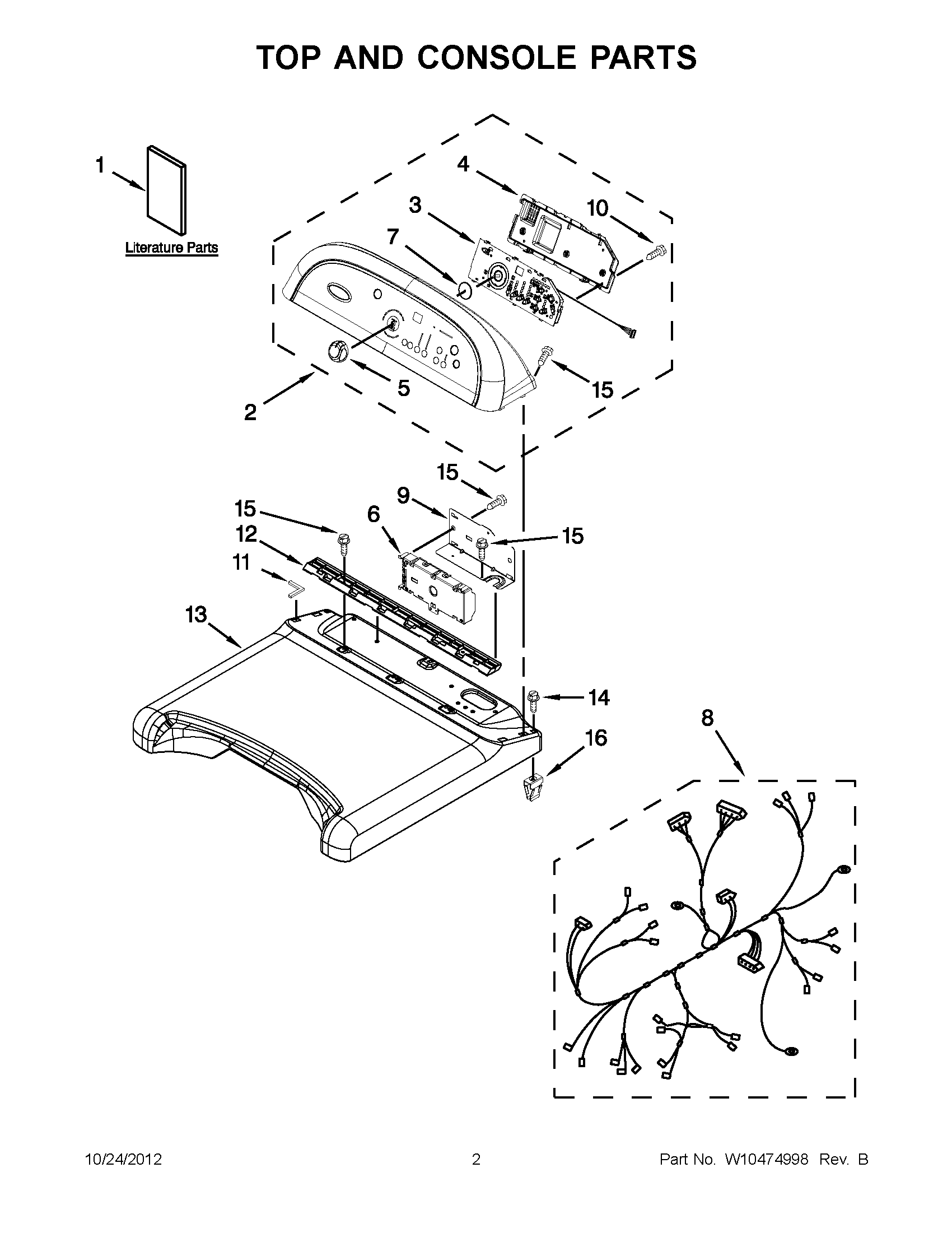

WGD8800YW1 01 – TOP AND CONSOLE PARTS

WGD8800YW1 01 – TOP AND CONSOLE PARTS

Written by

in

WGD8800YW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1GUIDE, USE & CARE
1INSTALLATION, INSTRUCTION
1TECH SHEET
2PANEL, CONSOLE (CHROME SHADOW)
2PANEL, CONSOLE (WHITE)
3WPW10388673-includeCORE Whirlpool WPW10388673 Washer Electronic Control Board + Core
48564265 Whirlpool Cover
5WPW10211335 Whirlpool Knob
6WPW10432258-includeCORE Whirlpool WPW10432258 Washer Electronic Control Board + Core
7SEAL, USER INTERFACE
8HARNESS, WIRING
9BRACKET, MACHINE CONTROLLER
10WP4449745 Whirlpool Screw
11W10185554 Whirlpool Seal Assembly
12Bracket, Console
13TOP
13TOP (CHROME SHADOW)
14W10131402 Whirlpool Screw
15WP33001882 Whirlpool Screw
16W10112673 Whirlpool Clip
