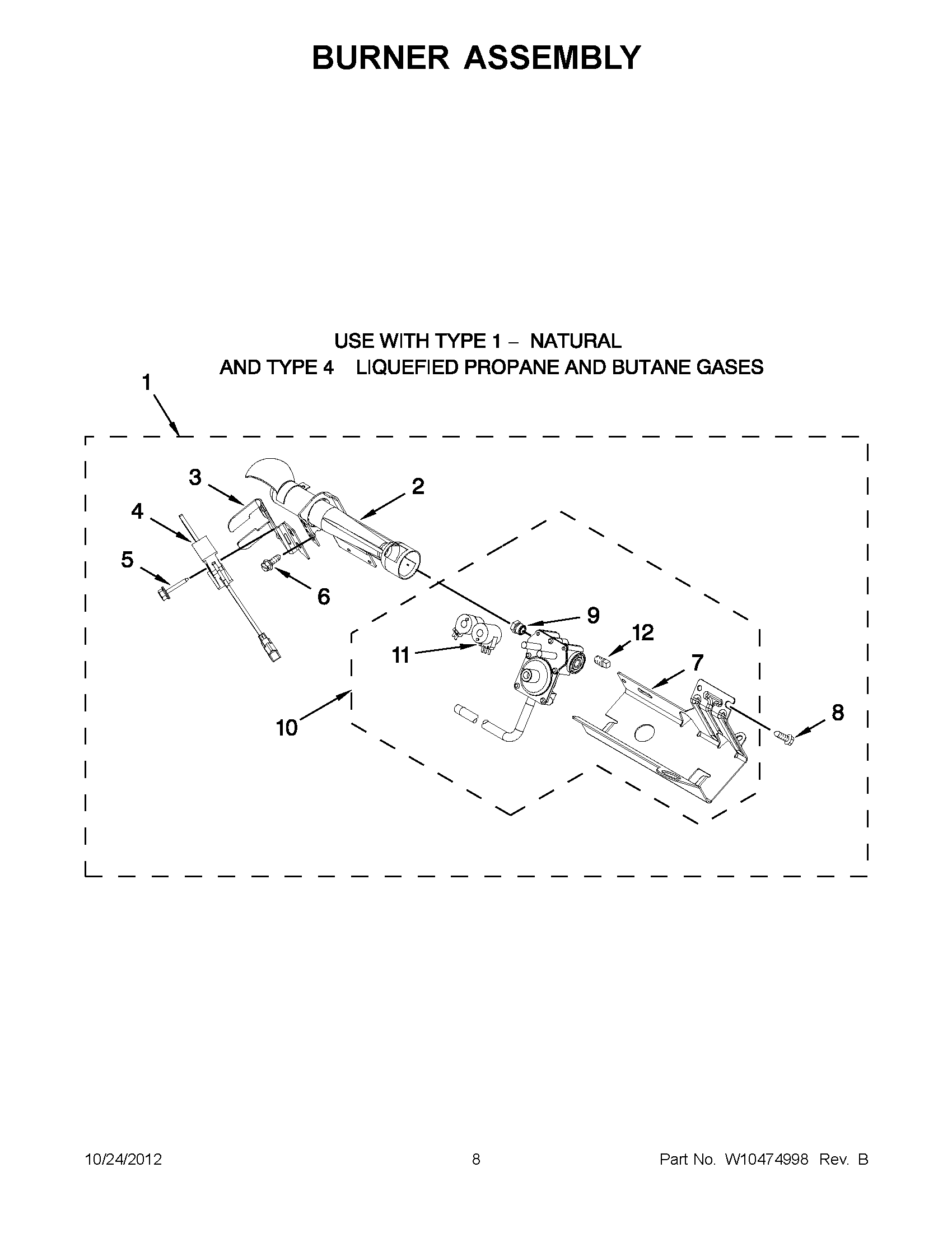

WGD8800YW1 04 – BURNER ASSEMBLY

WGD8800YW1 04 – BURNER ASSEMBLY

Written by

in

WGD8800YW1 04 – BURNER ASSEMBLY

Products

PositionProduct
NIW11581317 Whirlpool LP Gas Connector
NICABINET (NOT A SERVICEABLE PART)
1WP8557891 Whirlpool Gas Burner
2WPW10536683 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7W10183823 Whirlpool Bracket
8WP693995 Whirlpool Screw
9WP15418 Whirlpool Gas Orifice
9WP229742 Whirlpool Gas Orifice
10WP8573071 Whirlpool Gas Valve
11WPW10368268 Whirlpool Coil Valve
12W10295523 Whirlpool Plug
