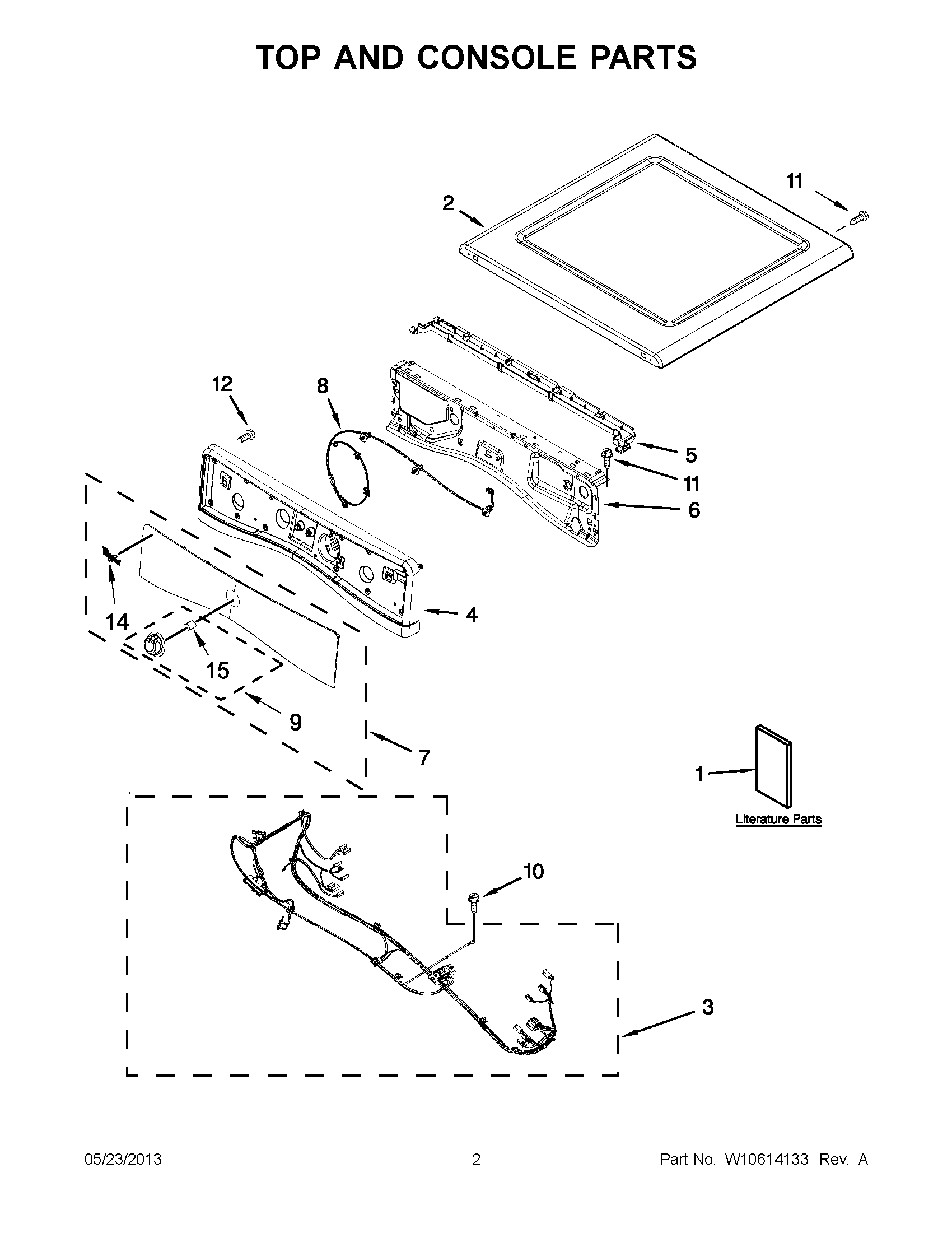

WGD88HEAW1 01 – TOP AND CONSOLE PARTS

WGD88HEAW1 01 – TOP AND CONSOLE PARTS

Written by

in

WGD88HEAW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1OWNERS MANUAL
1TECH SHEET
1WIRING DIAGRAM
1INSTALLATION INSTRUCTIONS
2WPW10460919 Whirlpool Top
2WPW10208383 Whirlpool Top Panel
3HARNESS, MAIN WIRING
4WPW10391519 Whirlpool Console
4W10876224 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W10446435 Whirlpool Control Panel
7IML ASSEMBLY (CHROME SHADOW)
8W10837344 Whirlpool Wire Harness
9KNOB ASSEMBLY
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10853898 Whirlpool Screw
14WPW10393264 Whirlpool Refrigerator Nameplate
14W11178521 Whirlpool Dishwasher Nameplate
15WP8536939 Whirlpool Spring Clip
