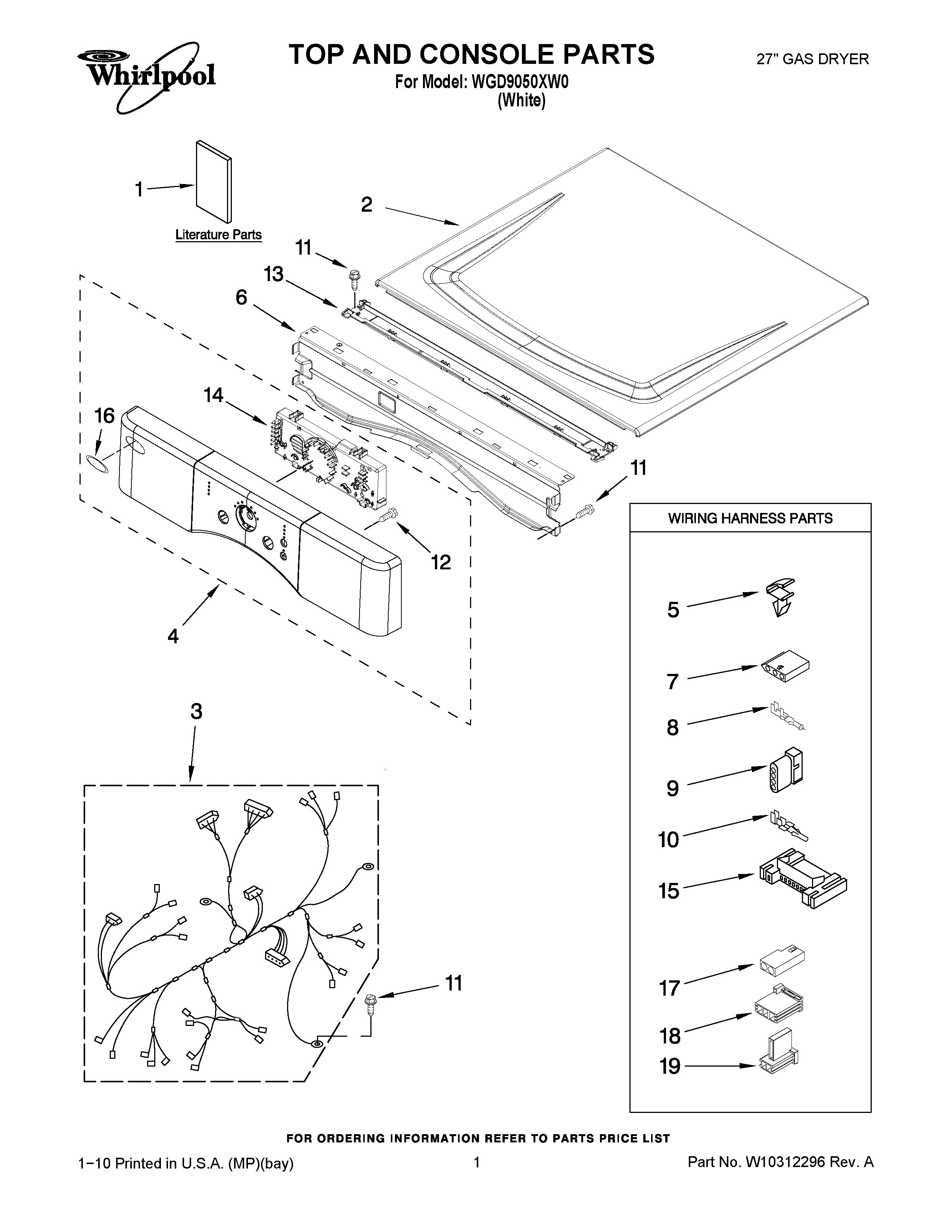

WGD9050XW0 01 – TOP AND CONSOLE PARTS

WGD9050XW0 01 – TOP AND CONSOLE PARTS

Written by

in

WGD9050XW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1TECH SHEET
1INSTALLATION INSTRUCTIONS
2WPW10336080 Whirlpool Top Assembly
3W10251443 Whirlpool Wire Harness
4WPW10215458 Whirlpool Console
5WP3394427 Whirlpool Clip
6WP8565237 Whirlpool Bracket Assembly
7353424 Whirlpool Connector
8WP94614 Whirlpool Terminal
93936144 Whirlpool Connector
10WP596797 Whirlpool Terminal
11WP488729 Whirlpool Refrigerator Door Screw
12W10006580 Whirlpool Screw
13WPW10266747 Whirlpool Channel
14ASSEMBLY, USER INTERFACE
153395683 Whirlpool Connector
16Medallion
17Receptacle, Latching (2-Way) (Uses Terminal 94614)
18WP3403498 Whirlpool Connector
19WP3403499 Whirlpool Connector
