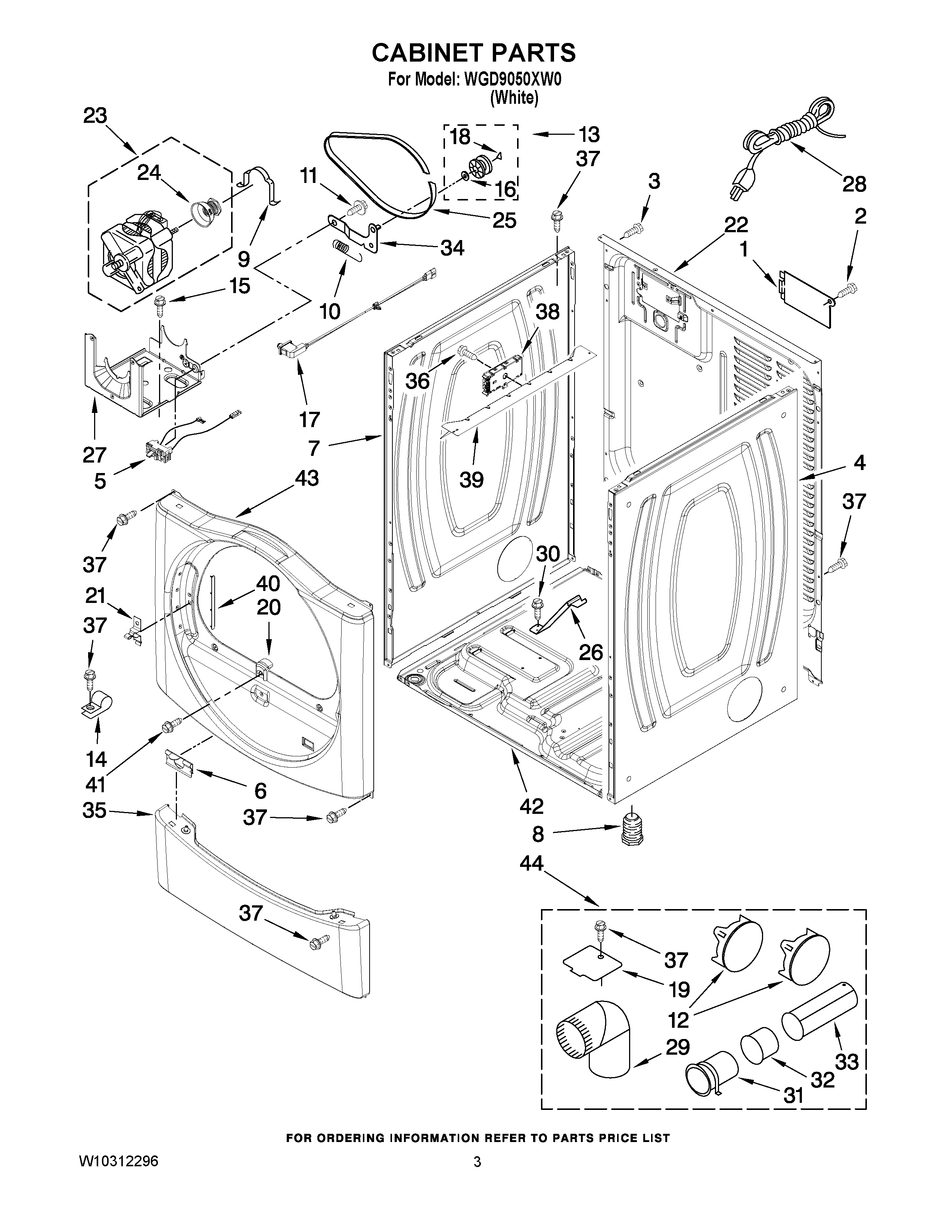

WGD9050XW0 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	W10819767 Whirlpool Cover
2	WP90767 Whirlpool Screw
3	W10850756 Whirlpool Screw
4	W10542714 Whirlpool Panel
5	WPW10411937 Whirlpool Switch
6	W11295573 Whirlpool Clip
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	279640 Whirlpool Dryer Idler Pulley Kit
14	3978776 Whirlpool Bracket
15	SCREW
16	WPW10121334 Whirlpool Washer
17	W10128087 Whirlpool Door Switch
19	WPW10354249 Whirlpool Cover
20	8565083 Whirlpool Ramp Assembly
21	WP8565122 Whirlpool Strike Assembly
22	Panel, Rear
23	279787 Whirlpool Dryer Drive Motor
24	W10837625 Whirlpool Dryer Motor Pulley
25	661570V Whirlpool Dryer Drum Belt
26	W10181903 Whirlpool Bracket
27	W11481730 Whirlpool Bracket
28	W11628810 Whirlpool Power Cord
29	WPW10416072 Whirlpool Elbow
30	WP693995 Whirlpool Screw
31	WP8563747 Whirlpool Exhaust Pipe
32	WPW10331278 Whirlpool Exhaust Pipe
33	WP8563749 Whirlpool Exhaust Pipe
34	W10837240 Whirlpool Dryer Idler Pulley
35	WP8540621 Whirlpool Toe Panel
37	WP488729 Whirlpool Refrigerator Door Screw
38	CONTROL BOARD
39	WP8563727 Whirlpool Bracket
40	W10085210 Whirlpool Label
41	WP308685 Whirlpool Microwave Screw
42	W11215531 Whirlpool Base
43	FRONT PANEL
44	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
