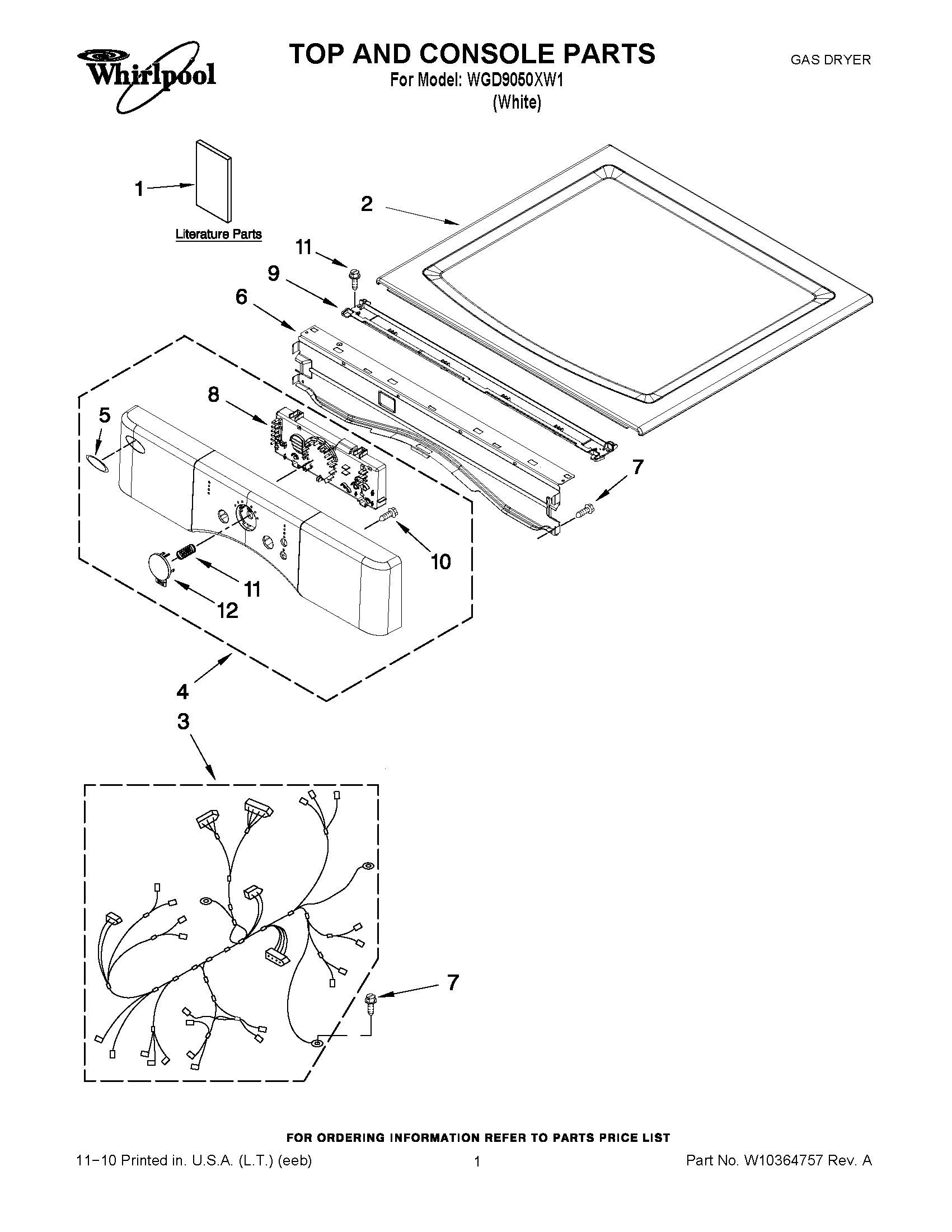

WGD9050XW1 01 – TOP AND CONSOLE PARTS

WGD9050XW1 01 – TOP AND CONSOLE PARTS

Written by

in

WGD9050XW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
1TECH SHEET
2WPW10336080 Whirlpool Top Assembly
3W10251443 Whirlpool Wire Harness
4WPW10215458 Whirlpool Console
5Medallion
6WP8565237 Whirlpool Bracket Assembly
7WP488729 Whirlpool Refrigerator Door Screw
8ASSEMBLY, USER INTERFACE
9WPW10266747 Whirlpool Channel
10W10006580 Whirlpool Screw
11W10215807 Whirlpool Spring
12W10212800 Whirlpool Push Button Switch
