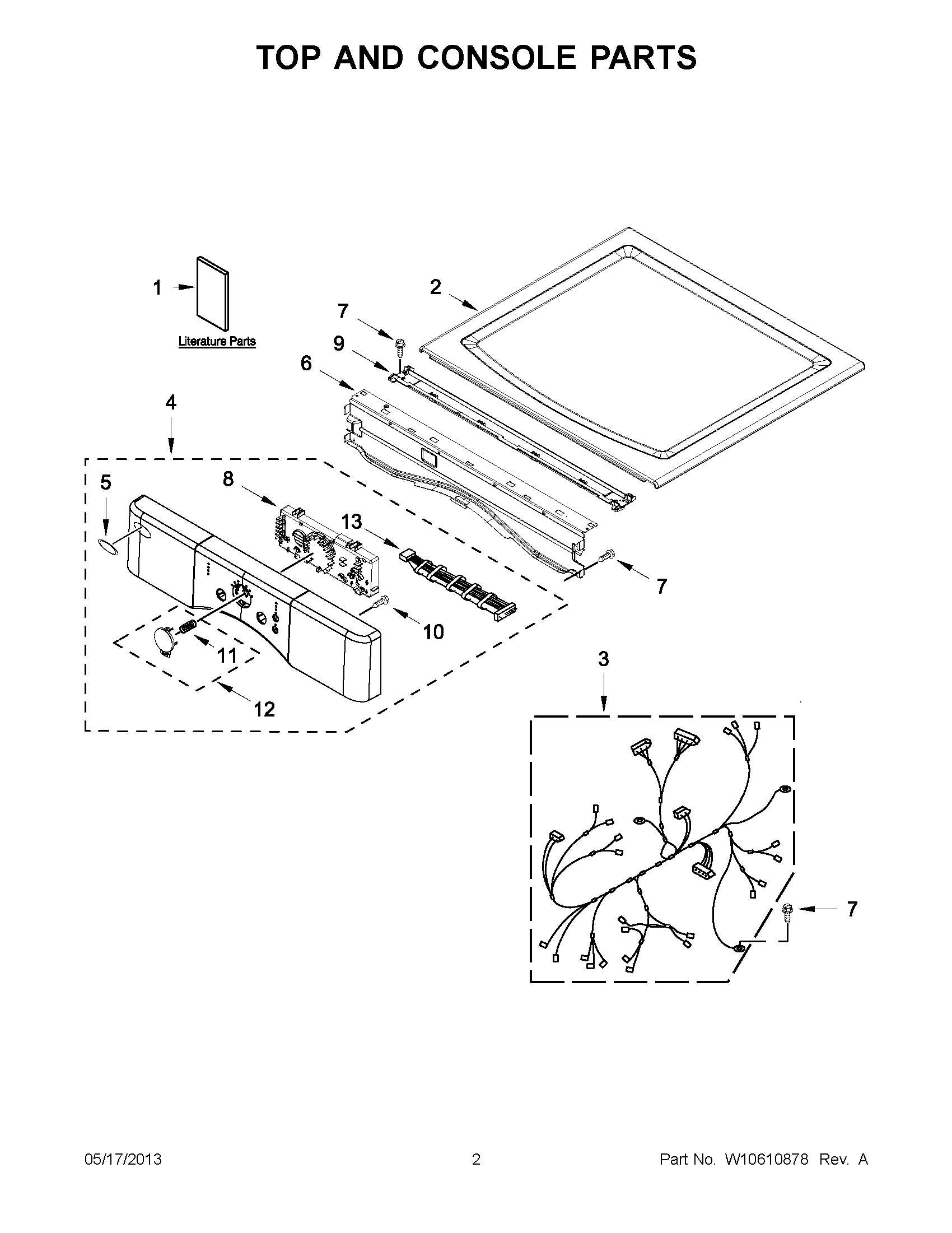

WGD9050XW2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
2WPW10336080 Whirlpool Top Assembly
3HARNESS, MAIN
4WPW10215458 Whirlpool Console
5Medallion
6WP8565237 Whirlpool Bracket Assembly
7WP488729 Whirlpool Refrigerator Door Screw
8ASSEMBLY, USER INTERFACE
9WPW10266747 Whirlpool Channel
10W10006580 Whirlpool Screw
11W10215807 Whirlpool Spring
12W10212800 Whirlpool Push Button Switch
13W10259049 Whirlpool Wire Harness
