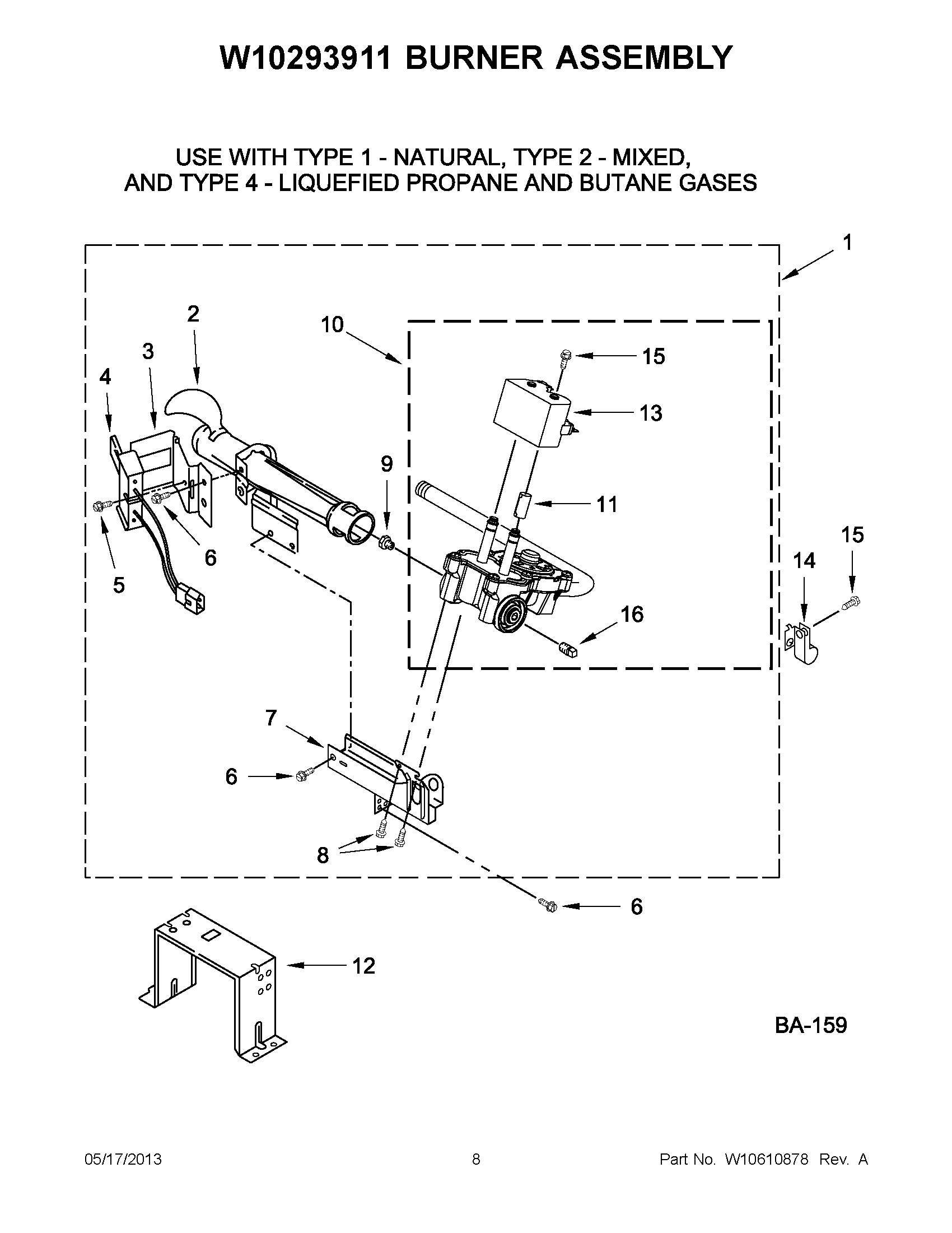

WGD9050XW2 04 – W10293911 BURNER ASSEMBLY

Products

Position	Product
NI	W11581317 Whirlpool LP Gas Connector
NI	CABINET (NOT A SERVICEABLE PART)
1	280119 Whirlpool Gas Burner
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	Base, Burner
8	WP693995 Whirlpool Screw
9	WP15418 Whirlpool Gas Orifice
9	ORIFICE, BURNER (TYPE 4 (BUTANE))
9	WP229742 Whirlpool Gas Orifice
10	WPW10118347 Whirlpool Gas Valve
11	WPW10328463 Whirlpool Valve Coil
12	Bracket, Support
14	3978776 Whirlpool Bracket
16	WP488729 Whirlpool Refrigerator Door Screw
17	W10295523 Whirlpool Plug
