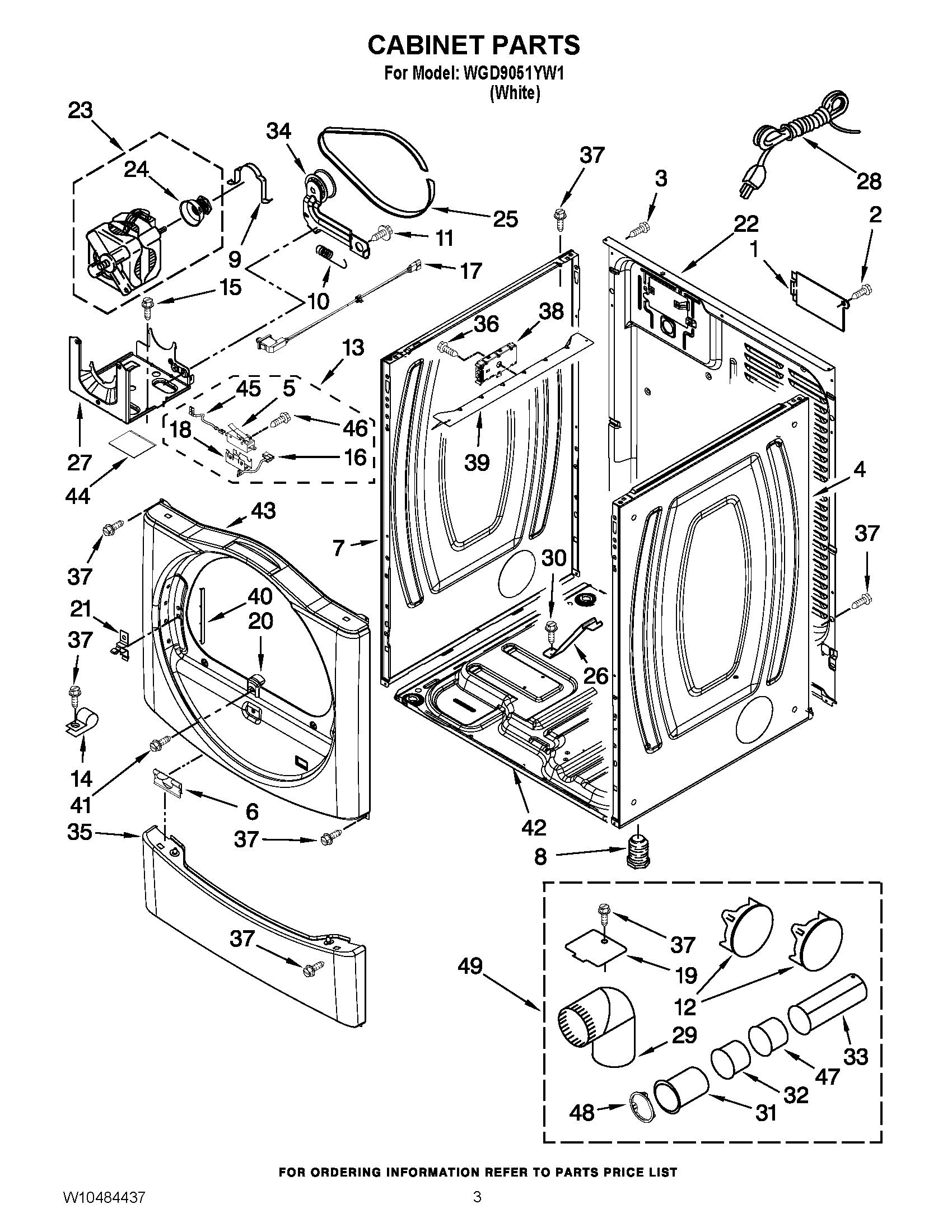

WGD9051YW1 02 – CABINET PARTS

Products

Position	Product
NI	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
NI	49621 Whirlpool Leveling Feet
1	W10819767 Whirlpool Cover
2	WP90767 Whirlpool Screw
3	W10850756 Whirlpool Screw
4	W10542714 Whirlpool Panel
5	WP8564010 Whirlpool Plug Switch
6	W11295573 Whirlpool Clip
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	W11247665 Whirlpool Switch
14	3978776 Whirlpool Bracket
15	SCREW
16	WIRE, MOTOR TO BELT SWITCH
17	W10318609 Whirlpool Dryer Door Switch
18	8564011 Whirlpool Bracket
19	WPW10354249 Whirlpool Cover
20	8565083 Whirlpool Ramp Assembly
21	WP8565122 Whirlpool Strike Assembly
22	Panel, Rear
23	W11234001 Whirlpool Drive Motor
24	WP8066184 Whirlpool Dryer Motor Pulley
25	WPW10131172 Whirlpool Belt
26	W10181903 Whirlpool Bracket
27	W11676491 Whirlpool Base
28	W11222083 Whirlpool Power Cord
29	WPW10416072 Whirlpool Elbow
30	WP693995 Whirlpool Screw
31	WP8563747 Whirlpool Exhaust Pipe
32	WPW10331278 Whirlpool Exhaust Pipe
33	WP8563749 Whirlpool Exhaust Pipe
34	WPW10344192 Whirlpool Idler Pulley
35	WP8540621 Whirlpool Toe Panel
37	WP488729 Whirlpool Refrigerator Door Screw
38	WPW10450081-includeCORE Whirlpool WPW10450081 Washer Electronic Control Board + Core
39	WP8563727 Whirlpool Bracket
40	W10085210 Whirlpool Label
41	WP308685 Whirlpool Microwave Screw
42	W11215531 Whirlpool Base
43	W10251264 Whirlpool Panel
44	W11113654 Whirlpool Pad
45	W10167613 Whirlpool Wire
46	W10002600 Whirlpool Screw
47	WP8563748 Whirlpool Exhaust Pipe
48	WPW10344699 Whirlpool Collar
