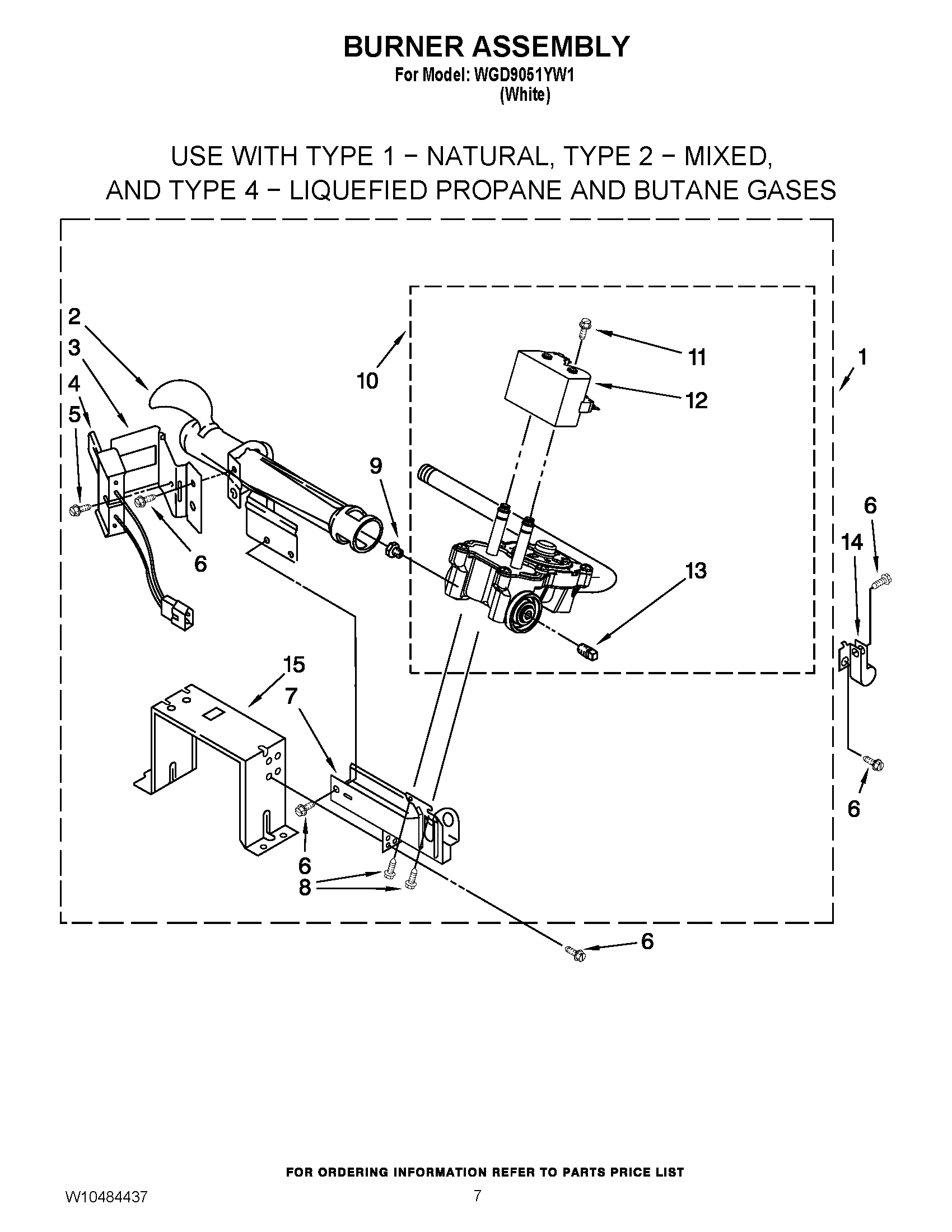

WGD9051YW1 04 – BURNER ASSEMBLY

WGD9051YW1 04 – BURNER ASSEMBLY

Written by

in

WGD9051YW1 04 – BURNER ASSEMBLY

Products

PositionProduct
NIW10436933 Whirlpool LP Gas Connection
1BURNER ASSEMBLY 60 HZ. (TYPE 1) (COPRECI)
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9Orifice, Burner (Type 1)
10W11676916 Whirlpool Gas Burner
11326049536 Whirlpool Screw
12WPW10328463 Whirlpool Valve Coil
13W10295523 Whirlpool Plug
143978776 Whirlpool Bracket
15Bracket, Support
