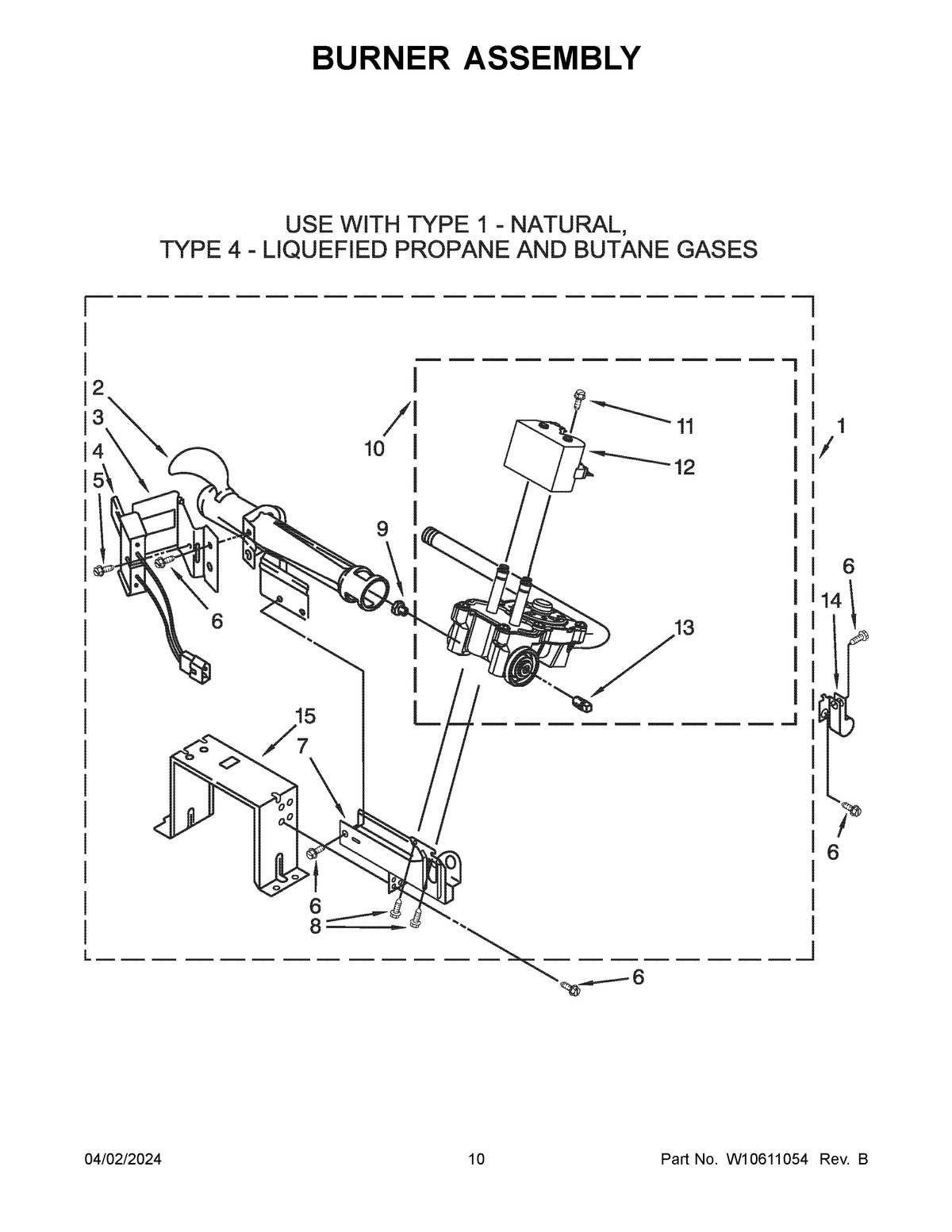

WGD9051YW2 06 – BURNER ASSEMBLY

Products

Position	Product
NI	W10436933 Whirlpool LP Gas Connection
NI	FOLLOWING PARTS NOT ILLUSTRATED
1	BURNER ASSEMBLY 60 HZ. (TYPE 1) (COPRECI)
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	Base, Burner
8	WP693995 Whirlpool Screw
9	Orifice, Burner (Type 1)
9A	WPW10165431 Whirlpool Gas Orifice
9B	WP229742 Whirlpool Gas Orifice
10	W11676916 Whirlpool Gas Burner
11	326049536 Whirlpool Screw
12	WPW10328463 Whirlpool Valve Coil
13	W10295523 Whirlpool Plug
14	3978776 Whirlpool Bracket
15	Bracket, Support
