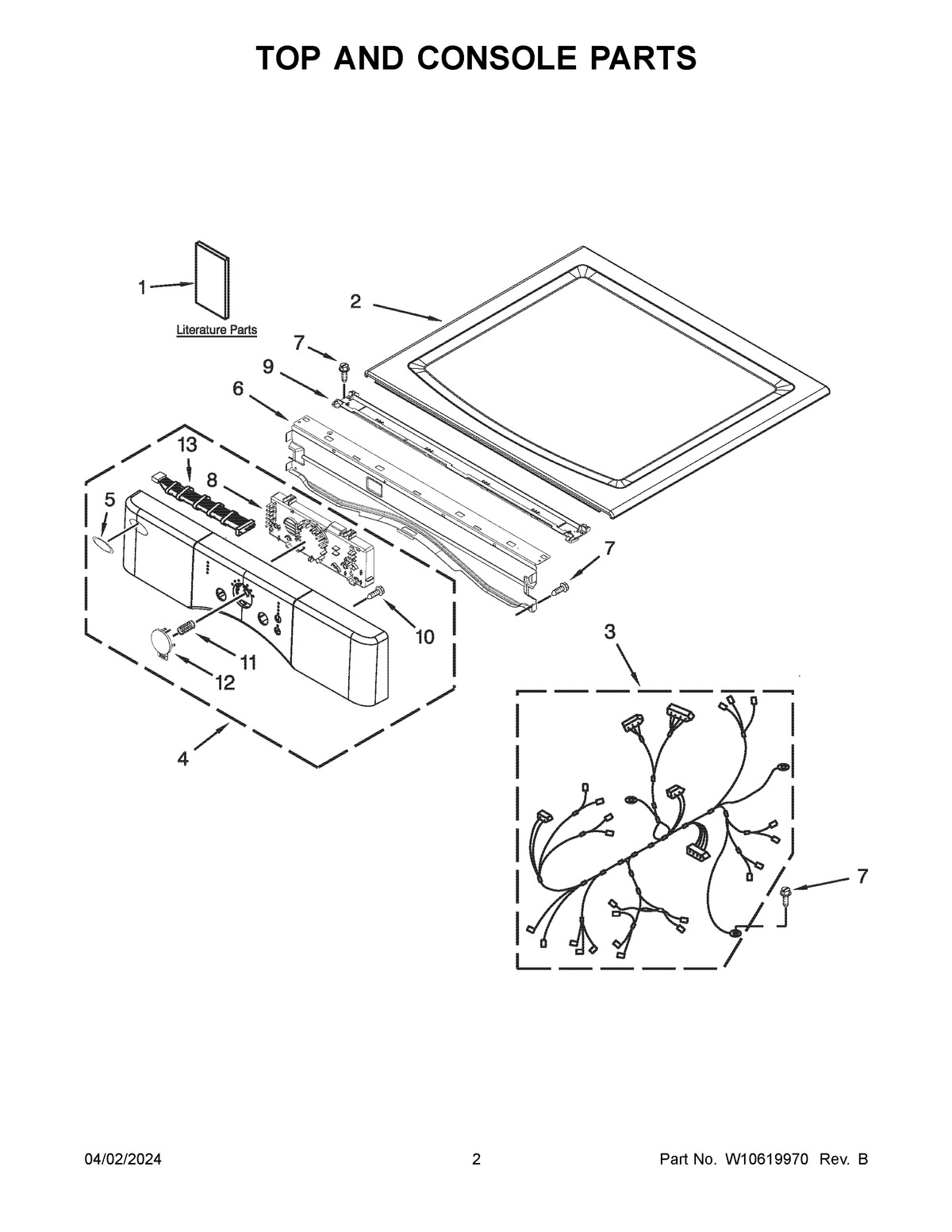

WGD9051YW3 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BTECH SHEET
1USE & CARE GUIDE
1AINSTALLATION INSTRUCTIONS
2WPW10336080 Whirlpool Top Assembly
3HARNESS, MAIN
4WPW10444970 Whirlpool Console
5Medallion
6WP8565237 Whirlpool Bracket Assembly
7WP488729 Whirlpool Refrigerator Door Screw
8WPW10444971-includeCORE Whirlpool WPW10444971 Refrigerator Electronic Control Board + Core
9WPW10266747 Whirlpool Channel
10W10006580 Whirlpool Screw
11W10215807 Whirlpool Spring
12W10212800 Whirlpool Push Button Switch
13W10259049 Whirlpool Wire Harness
