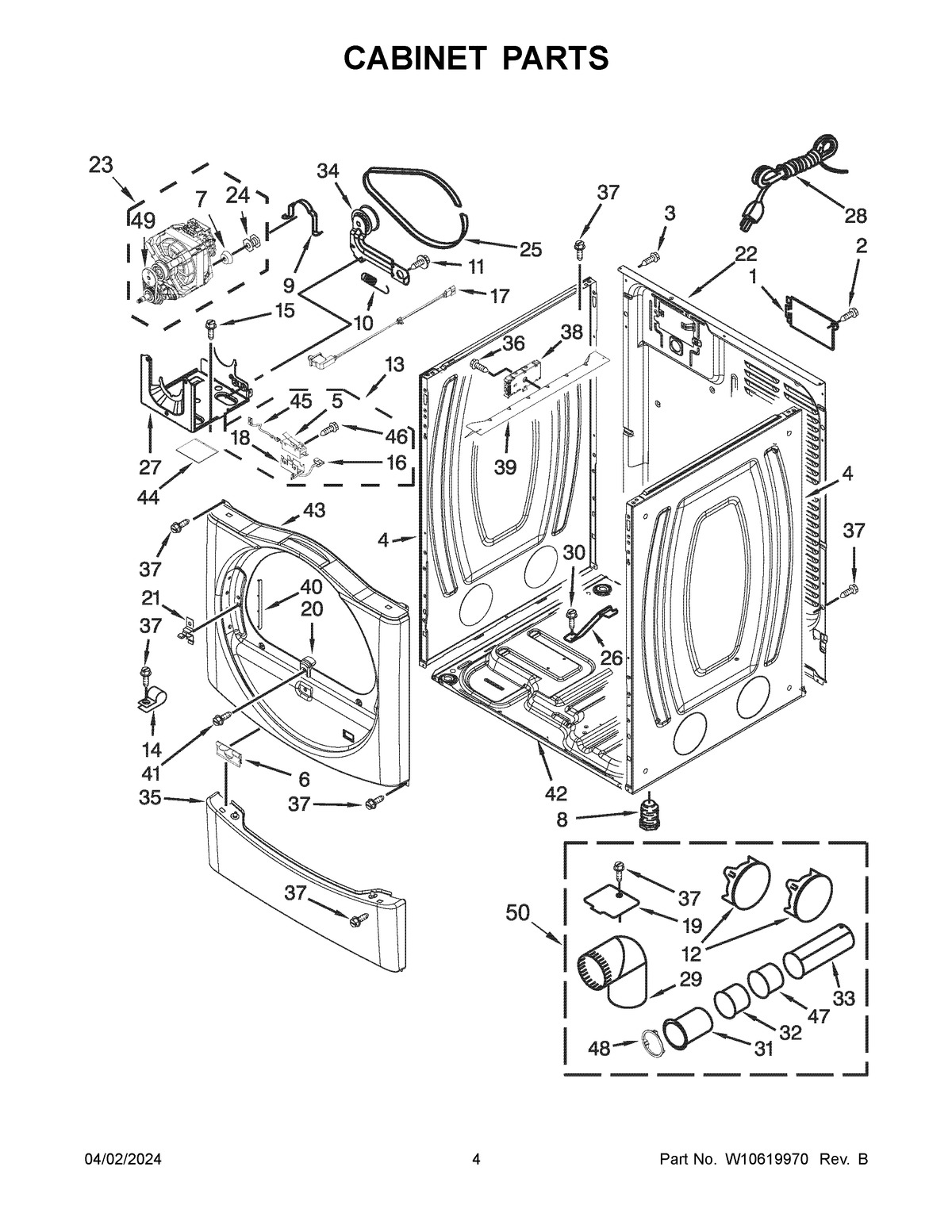

WGD9051YW3 03 – CABINET PARTS

WGD9051YW3 03 – CABINET PARTS

Written by

in

WGD9051YW3 03 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1W10819767 Whirlpool Cover
2WP90767 Whirlpool Screw
3W10850756 Whirlpool Screw
4W10542714 Whirlpool Panel
5WP8564010 Whirlpool Plug Switch
6W11295573 Whirlpool Clip
7WP3393657 Whirlpool Belt Retainer
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13W11247665 Whirlpool Switch
143978776 Whirlpool Bracket
15SCREW
16WIRE, MOTOR TO BELT SWITCH
17WPW10350910 Whirlpool Door Switch
188564011 Whirlpool Bracket
19WPW10354249 Whirlpool Cover
208565083 Whirlpool Ramp Assembly
21WP8565122 Whirlpool Strike Assembly
22Panel, Rear
23W11234001 Whirlpool Drive Motor
24WP8066184 Whirlpool Dryer Motor Pulley
25WPW10131172 Whirlpool Belt
26W10181903 Whirlpool Bracket
27W11676491 Whirlpool Base
28W11222083 Whirlpool Power Cord
29WPW10416072 Whirlpool Elbow
30WP693995 Whirlpool Screw
31WP8563747 Whirlpool Exhaust Pipe
32WPW10331278 Whirlpool Exhaust Pipe
33WP8563749 Whirlpool Exhaust Pipe
34WPW10344192 Whirlpool Idler Pulley
35WP8540621 Whirlpool Toe Panel
37WP488729 Whirlpool Refrigerator Door Screw
38WPW10450081-includeCORE Whirlpool WPW10450081 Washer Electronic Control Board + Core
39WP8563727 Whirlpool Bracket
40W10085210 Whirlpool Label
41WP308685 Whirlpool Microwave Screw
42W11215531 Whirlpool Base
43PANEL, FRONT (WHITE)
44W11113654 Whirlpool Pad
45W10167613 Whirlpool Wire
46W10002600 Whirlpool Screw
47WP8563748 Whirlpool Exhaust Pipe
48WPW10344699 Whirlpool Collar
49WP3405160 Whirlpool Belt Assembly
50W10470674 Whirlpool Dryer Side Vent Exhaust Kit
