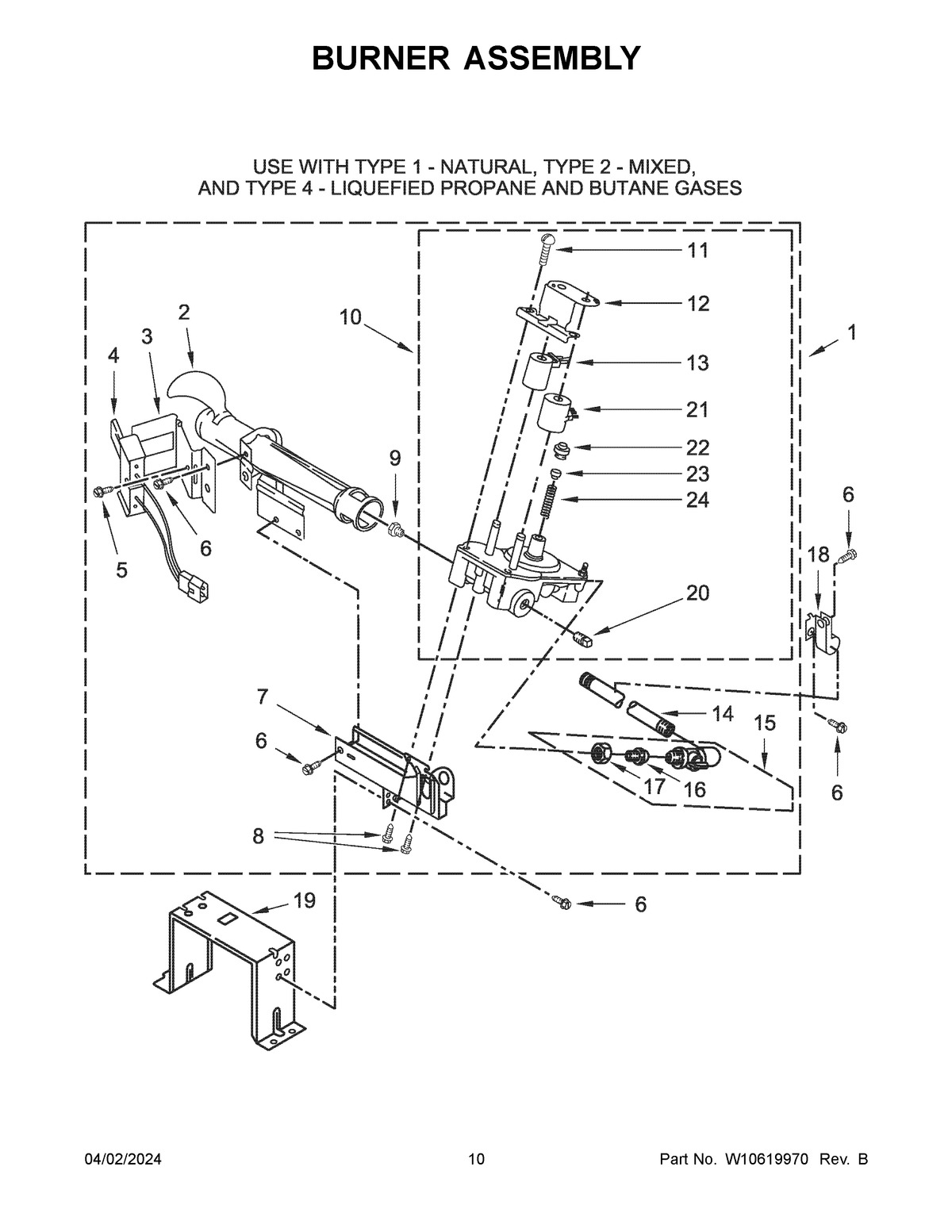

WGD9051YW3 06 – BURNER ASSEMBLY

Products

PositionProduct
NIFOLLOWING PARTS NOT ILLUSTRATED
NIW10402145 Whirlpool LP Gas Connection
1Burner Assembly 60 Hz. (Type 1, 2 & 3) (White Rodgers)
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9Orifice, Burner (Type 1)
9AWP234868 Whirlpool Gas Orifice
10WPW10141728 Whirlpool Gas Valve
11694421 Whirlpool Screw Assembly
12694538 Whirlpool Bracket
14W10110395 Whirlpool Pipe
15697441 Whirlpool Valve
163393767 Whirlpool Pipe
17Nut, Compression
183387561 Whirlpool Clamp
19Bracket, Support
20W10295523 Whirlpool Plug
21279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
22WP694424 Whirlpool Limiter
23WP694423 Whirlpool Regulator
24WP694422 Whirlpool Spring
