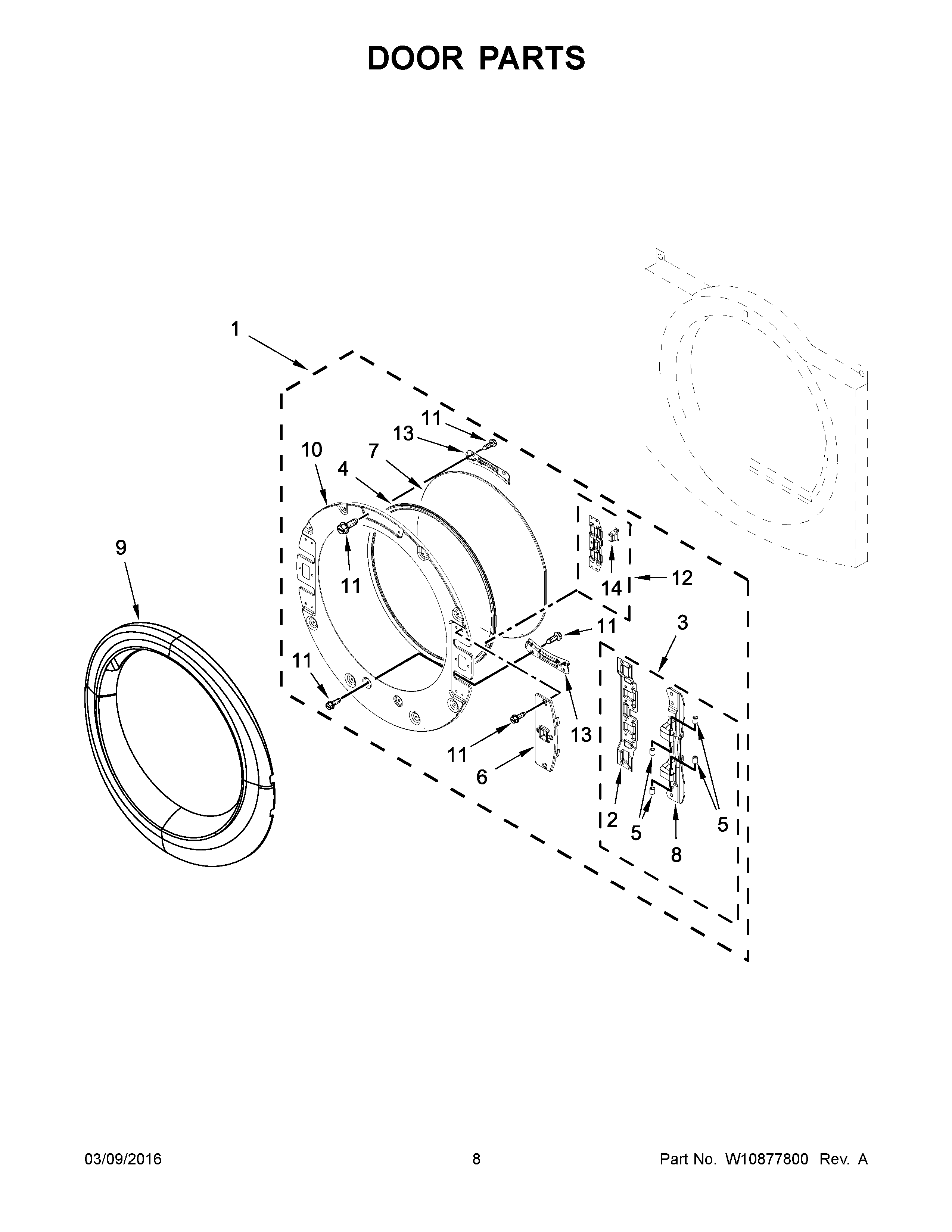

WGD90HEFW0 05 – DOOR PARTS

Products

PositionProduct
1DOOR ASSEMBLY, INNER
2HINGE
3HINGE
4W11126230 Whirlpool Seal
5WPW10208398 Whirlpool Hinge Pin Cap
6W10772469 Whirlpool Door Catch Cover
7W10749947 Whirlpool Window
8WPW10208419 Whirlpool Plate
9W11168739 Whirlpool Door
10DOOR, INNER
11SCREW
12WPW10208254 Whirlpool Catch
13W10208252 Whirlpool Retainer
14W11240283 Whirlpool Catch Assembly
