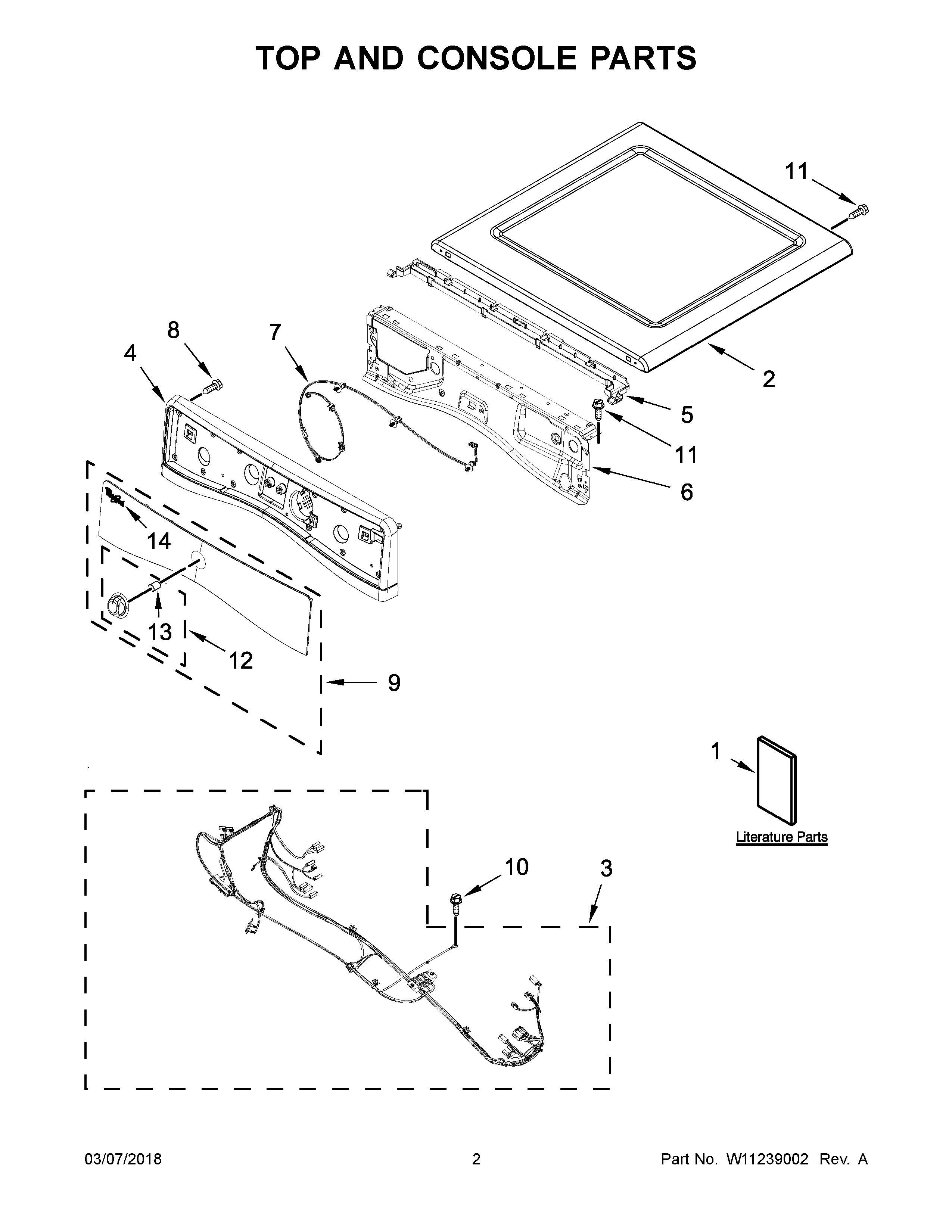

WGD90HEFW1 02 – TOP AND CONSOLE PARTSadmin2025-04-26T11:24:21+00:00WGD90HEFW1 02 – TOP AND CONSOLE PARTS ProductsPositionProduct1USE AND CARE GUIDE1BTECH SHEET1DQUICK START GUIDE1CWIRING DIAGRAM1AINSTALLATION INSTRUCTIONS2WPW10208383 Whirlpool Top Panel2AWPW10460919 Whirlpool Top3HARNESS, MAIN WIRING4WPW10391519 Whirlpool Console4AW10876224 Whirlpool Console5WPW10653575 Whirlpool Channel6W11480682 Whirlpool Bracket7W10837344 Whirlpool Wire Harness8WP489463 Whirlpool Refrigerator Screw9W10919212 Whirlpool Control Panel9AW10919215 Whirlpool Control Panel10WP693995 Whirlpool Screw11WP488729 Whirlpool Refrigerator Door Screw12W10875909 Whirlpool Timer Knob13WP8536939 Whirlpool Spring Clip14AWPW10393264 Whirlpool Refrigerator Nameplate14W11178521 Whirlpool Dishwasher Nameplate
