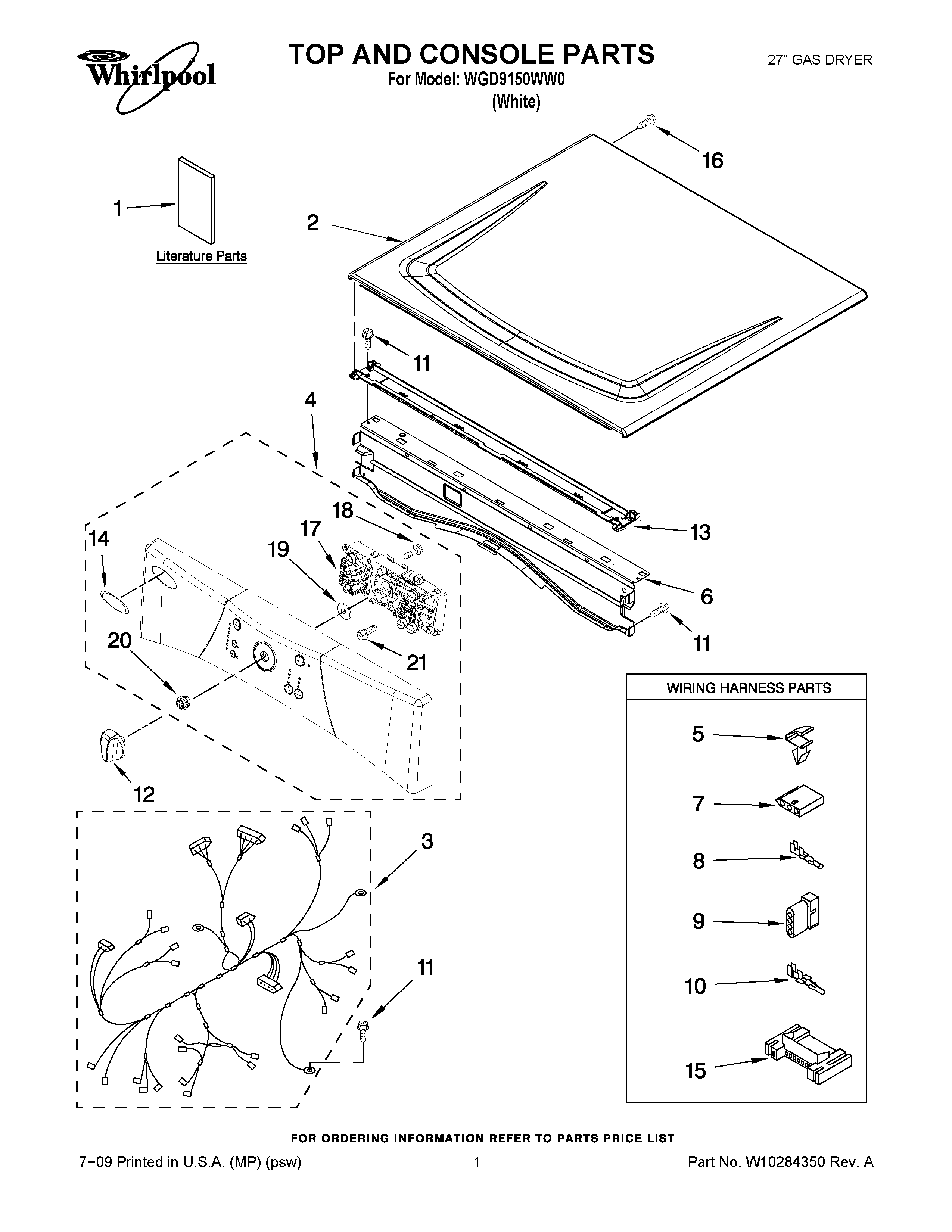

WGD9150WW0 01 – TOP AND CONSOLE PARTS

WGD9150WW0 01 – TOP AND CONSOLE PARTS

Written by

in

WGD9150WW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
1TECH SHEET
2WPW10336080 Whirlpool Top Assembly
3W10251443 Whirlpool Wire Harness
4PANEL, CONSOLE
5WP3394427 Whirlpool Clip
6WP8565237 Whirlpool Bracket Assembly
7353424 Whirlpool Connector
8WP94614 Whirlpool Terminal
93936144 Whirlpool Connector
10WP596797 Whirlpool Terminal
11WP488729 Whirlpool Refrigerator Door Screw
12WPW10236098 Whirlpool Knob Assembly
13WPW10266747 Whirlpool Channel
14Medallion
153395683 Whirlpool Connector
17ASSEMBLY, USER INTERFACE
18Screw, 2-28 x 1/2
19SEAL, USER INTERFACE
20BUSHING, SHAFT KNOB
21W10006580 Whirlpool Screw
