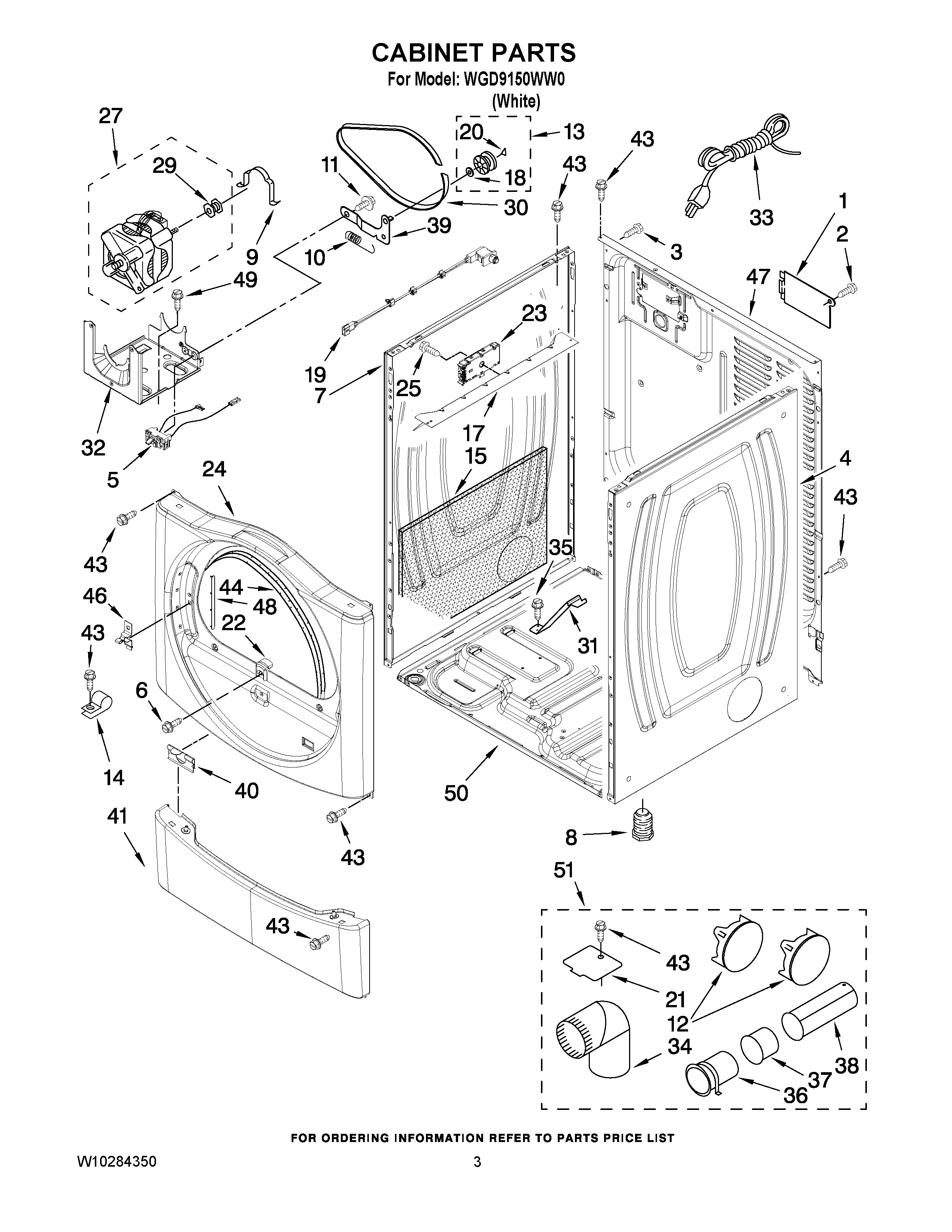

WGD9150WW0 02 – CABINET PARTS

WGD9150WW0 02 – CABINET PARTS

Written by

in

WGD9150WW0 02 – CABINET PARTS

Products

PositionProduct
1W10819767 Whirlpool Cover
2WP90767 Whirlpool Screw
3W10850756 Whirlpool Screw
4W10542714 Whirlpool Panel
5WPW10411937 Whirlpool Switch
6WP308685 Whirlpool Microwave Screw
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13279640 Whirlpool Dryer Idler Pulley Kit
143978776 Whirlpool Bracket
15W10123956 Whirlpool Sound Absorber
17WP8563727 Whirlpool Bracket
18WPW10121334 Whirlpool Washer
19W10128087 Whirlpool Door Switch
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10354249 Whirlpool Cover
228580015 Whirlpool Ramp
23CONTROL BOARD
24WPL 8580257
27279787 Whirlpool Dryer Drive Motor
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31W10181903 Whirlpool Bracket
32W11481730 Whirlpool Bracket
33W11628810 Whirlpool Power Cord
34WPW10416072 Whirlpool Elbow
35WP693995 Whirlpool Screw
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39W10837240 Whirlpool Dryer Idler Pulley
40W11295573 Whirlpool Clip
41WP8540621 Whirlpool Toe Panel
43WP488729 Whirlpool Refrigerator Door Screw
44WP3387242 Whirlpool Seal
46WP8565122 Whirlpool Strike Assembly
47Panel, Rear
48W10085210 Whirlpool Label
49SCREW
50W11215531 Whirlpool Base
51W10470674 Whirlpool Dryer Side Vent Exhaust Kit
