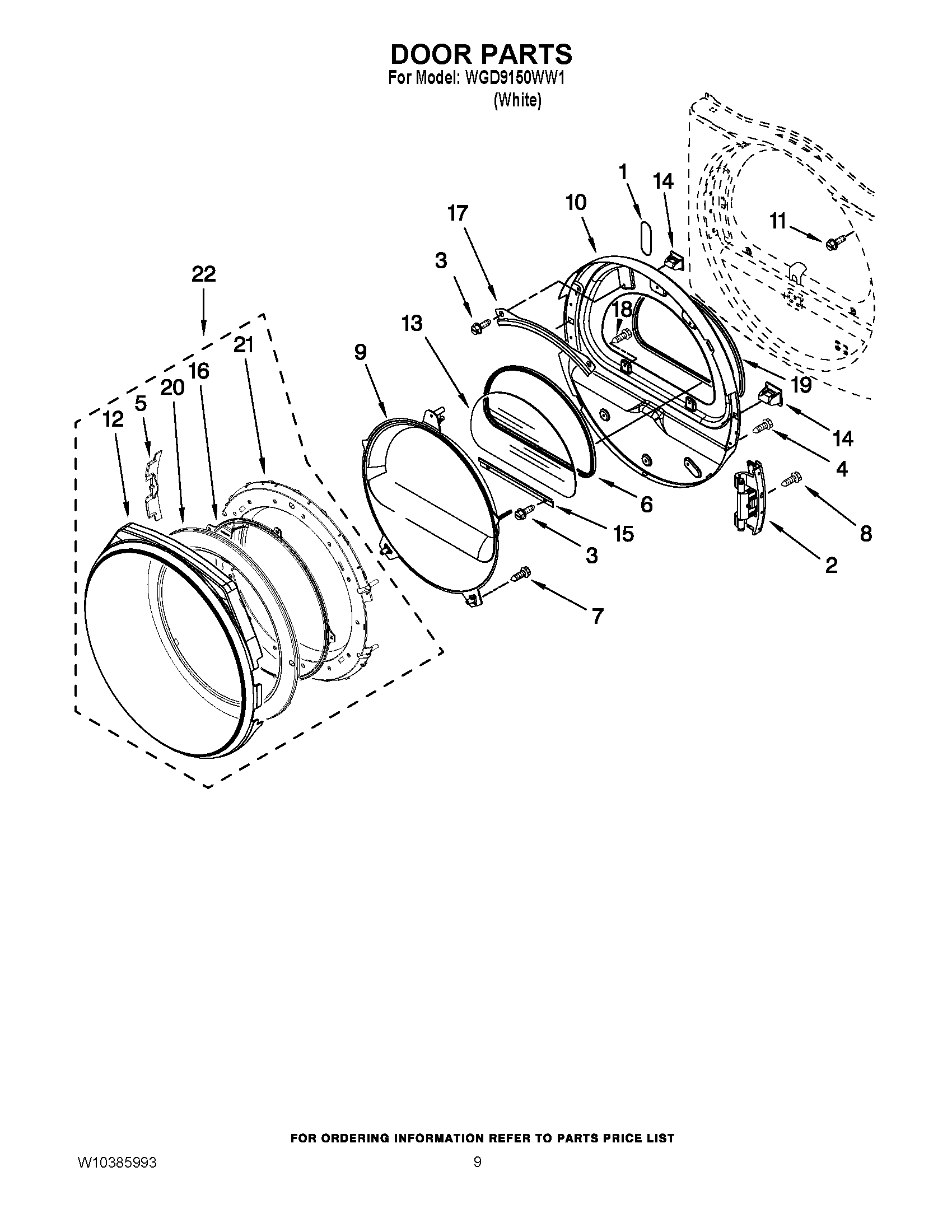

WGD9150WW1 05 – DOOR PARTS

Products

Position	Product
1	WPW10256915 Whirlpool Label
2	ASSEMBLY, DOOR HINGE
3	WP3373329 Whirlpool Dishwasher Screw
4	W11116979 Whirlpool Screw
5	COVER, HINGE (WHITE)
6	W11706993 Whirlpool Seal
7	WP8534022 Whirlpool Screw
8	WPW10159996 Whirlpool Screw
9	SCREEN, DOOR
10	W11690171 Whirlpool Door Assembly
11	WP355515 Whirlpool Screw
12	TRIM, DOOR RING OUTER (WHITE)
13	WPW10286878 Whirlpool Window
14	279570 Whirlpool Dryer Door Latch Kit
15	W10822054 Whirlpool Retainer
16	DOOR INTERMEDIATE ROTATIONAL
17	8519356 Whirlpool Retainer
18	SCREW
19	WPW10163915 Whirlpool Door Seal
20	TRIM-DOOR INNER RING (NOT SERVICEABLE SEPARATELY, ORDER ITEM. 22)
21	DOOR, INTERMEDIATE STATIONARY
22	OUTER DOOR ASSEMBLY
