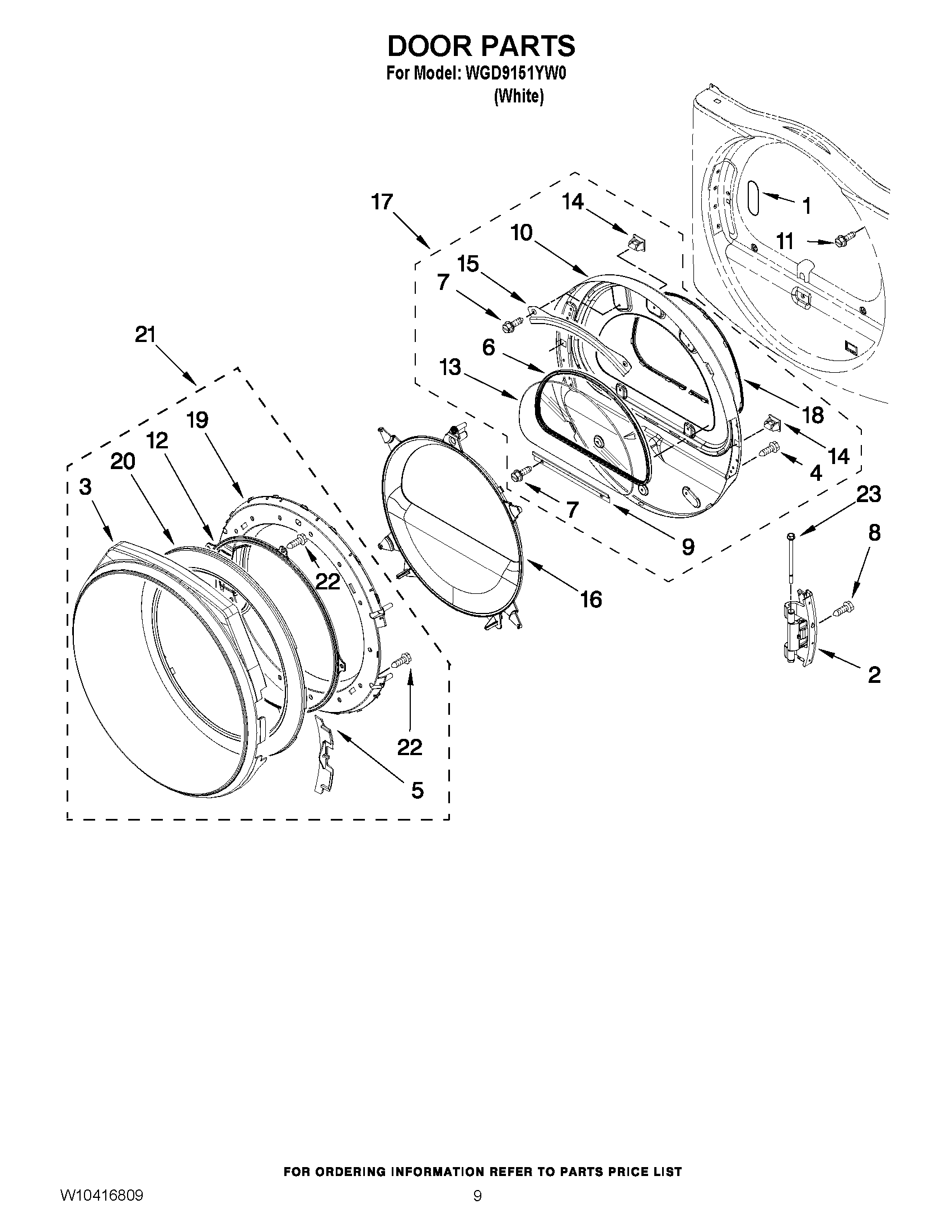

WGD9151YW0 05 – DOOR PARTS

WGD9151YW0 05 – DOOR PARTS

Written by

in

WGD9151YW0 05 – DOOR PARTS

Products

PositionProduct
1WPW10256915 Whirlpool Label
2Door, Hinge Assembly
3TRIM RING, OUTER DOOR (WHITE)
4W11116979 Whirlpool Screw
5COVER, HINGE (WHITE)
6W11706993 Whirlpool Seal
7WP3373329 Whirlpool Dishwasher Screw
8WPW10159996 Whirlpool Screw
9W10822054 Whirlpool Retainer
10W11690171 Whirlpool Door Assembly
11WP355515 Whirlpool Screw
13WPW10286878 Whirlpool Window
14279570 Whirlpool Dryer Door Latch Kit
158519356 Whirlpool Retainer
16DOOR, INTERMEDIATE STATIONARY
17INNER DOOR ASSEMBLY
18WPW10163915 Whirlpool Door Seal
19DOOR INTERMEDIATE ROTATIONAL
20CABINET (NOT A SERVICEABLE PART)
21DOOR ASSEMBLY (OUTER)
22SCREW
238565087 Whirlpool Screw
