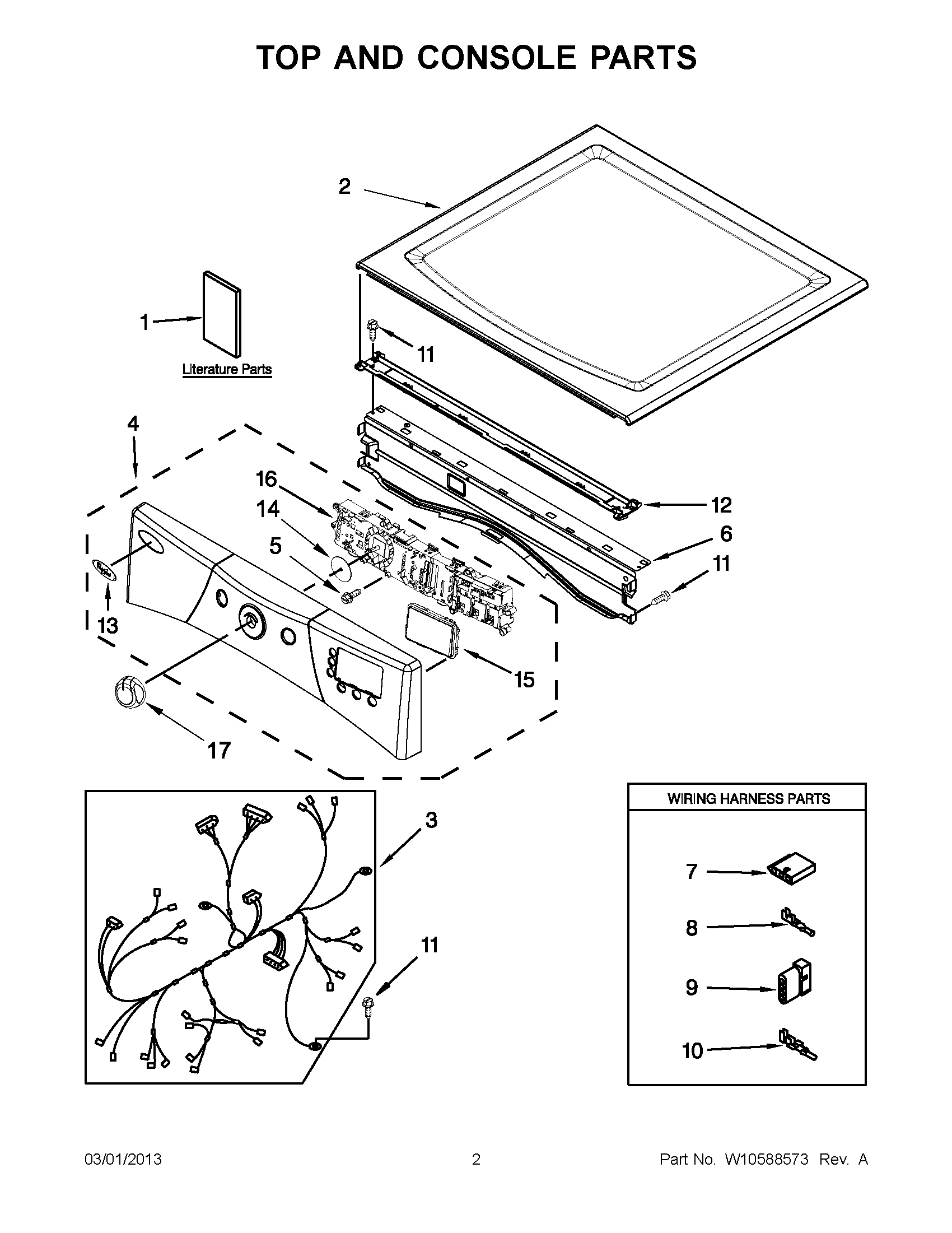

WGD9151YW1 01 – TOP AND CONSOLE PARTS

WGD9151YW1 01 – TOP AND CONSOLE PARTS

Written by

in

WGD9151YW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
2WPW10336080 Whirlpool Top Assembly
3HARNESS, MAIN
4PANEL, CONSOLE
5W10006580 Whirlpool Screw
6WP8565237 Whirlpool Bracket Assembly
7353424 Whirlpool Connector
8WP94614 Whirlpool Terminal
93936144 Whirlpool Connector
10WP596797 Whirlpool Terminal
11WP488729 Whirlpool Refrigerator Door Screw
12WPW10266747 Whirlpool Channel
13BADGE
14SEAL, USER INTERFACE
15WINDOW, DISPLAY
16ASSEMBLY, USER INTERFACE
17WPW10416463 Whirlpool Knob
