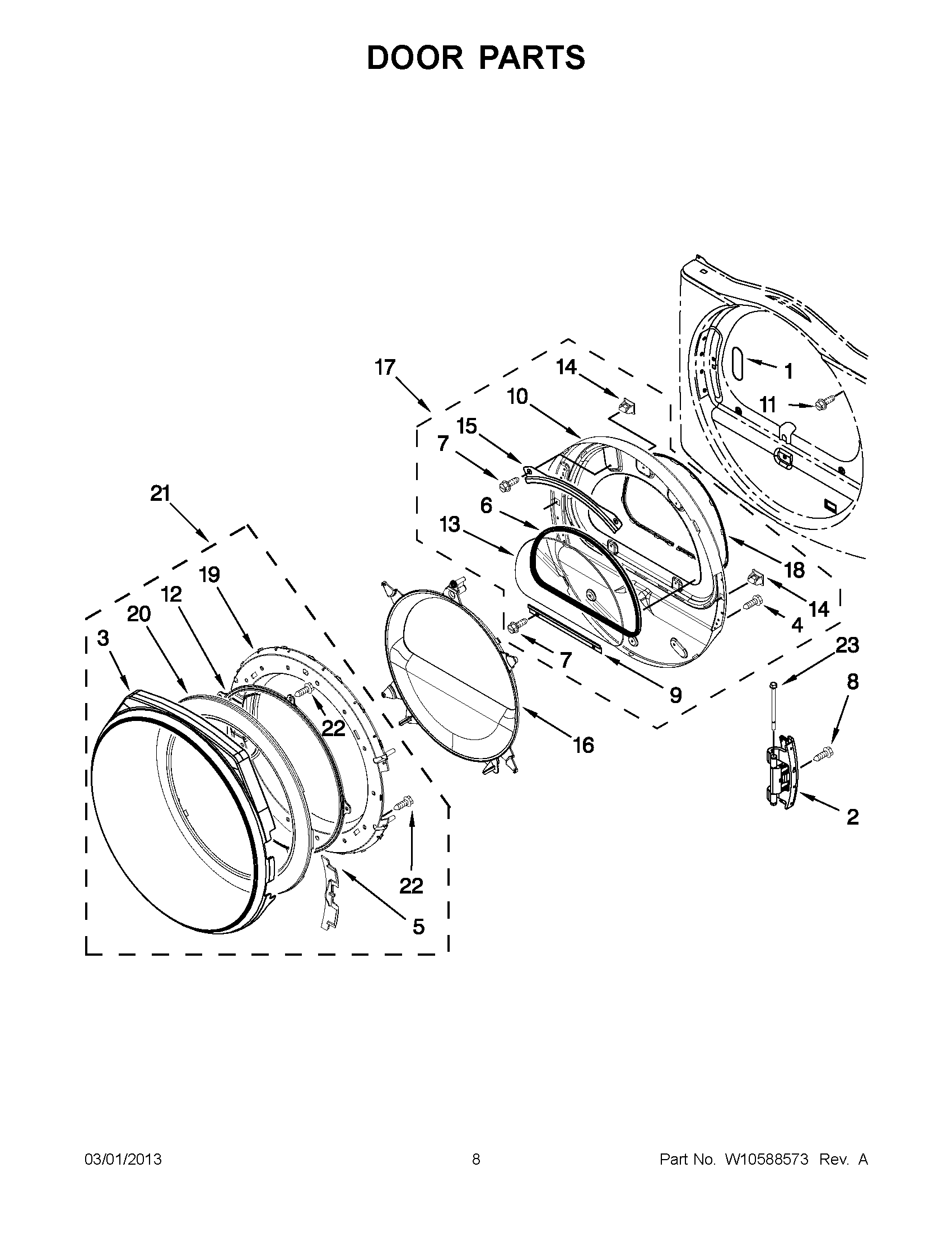

WGD9151YW1 04 – DOOR PARTS

Products

Position	Product
1	WPW10256915 Whirlpool Label
2	Door, Hinge Assembly
3	TRIM RING, OUTER DOOR (WHITE)
4	W11116979 Whirlpool Screw
5	COVER, HINGE (WHITE)
6	W11706993 Whirlpool Seal
7	WP3373329 Whirlpool Dishwasher Screw
8	WPW10159996 Whirlpool Screw
9	W10822054 Whirlpool Retainer
10	W11690171 Whirlpool Door Assembly
11	WP355515 Whirlpool Screw
13	WPW10286878 Whirlpool Window
14	279570 Whirlpool Dryer Door Latch Kit
15	8519356 Whirlpool Retainer
16	DOOR, INTERMEDIATE STATIONARY
17	ASSEMBLY, INNER DOOR
18	WPW10163915 Whirlpool Door Seal
19	DOOR INTERMEDIATE ROTATIONAL
20	CABINET (NOT A SERVICEABLE PART)
21	DOOR ASSEMBLY (OUTER)
22	SCREW
23	8565087 Whirlpool Screw
