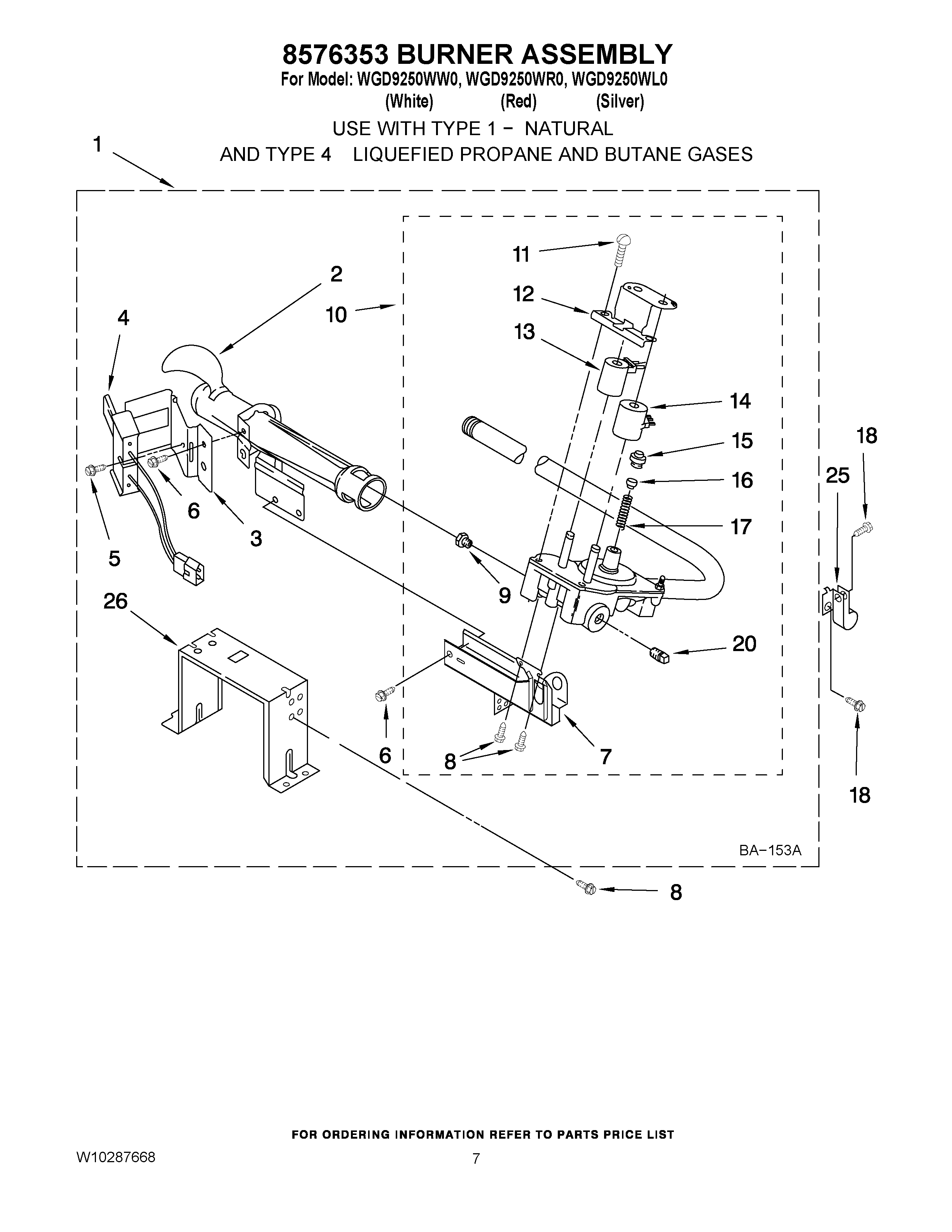

WGD9250WL0 04 – 8576353 BURNER ASSEMBLY

Products

Position	Product
NI	W11581317 Whirlpool LP Gas Connector
1	280119 Whirlpool Gas Burner
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	Base, Burner
8	WP693995 Whirlpool Screw
9	WP15418 Whirlpool Gas Orifice
9	ORIFICE, BURNER (TYPE 4 (BUTANE))
9	WP229742 Whirlpool Gas Orifice
10	WPW10118347 Whirlpool Gas Valve
11	694421 Whirlpool Screw Assembly
12	694538 Whirlpool Bracket
14	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15	WP694424 Whirlpool Limiter
16	WP694423 Whirlpool Regulator
17	WP694422 Whirlpool Spring
18	WP488729 Whirlpool Refrigerator Door Screw
20	W10295523 Whirlpool Plug
25	3387561 Whirlpool Clamp
26	Bracket, Support
