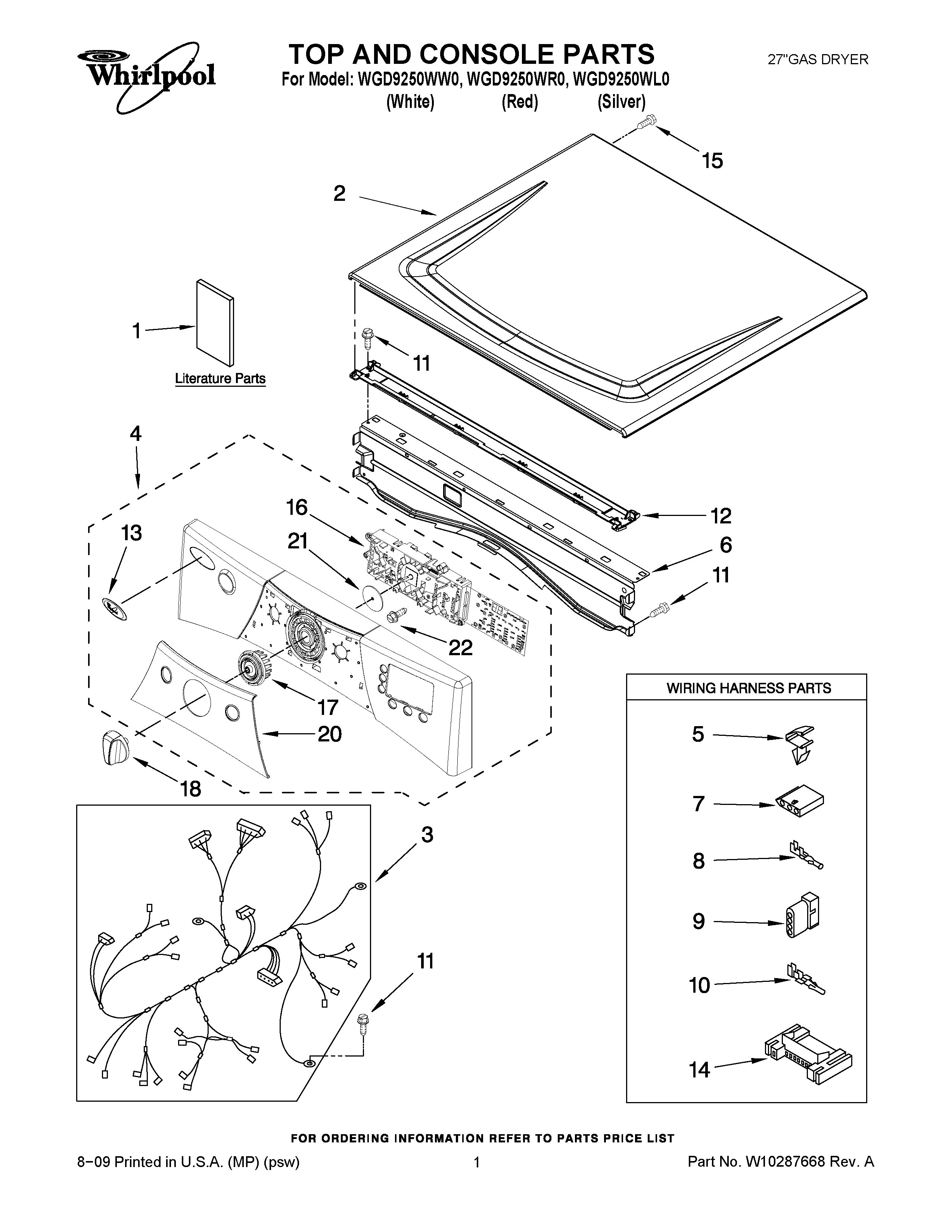

WGD9250WR0 01 – TOP AND CONSOLE PARTS

WGD9250WR0 01 – TOP AND CONSOLE PARTS

Written by

in

WGD9250WR0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
1TECH SHEET
2WPW10336080 Whirlpool Top Assembly
2WPW10336091 Whirlpool Top
2TOP (MAGNA RED)
3W10251443 Whirlpool Wire Harness
4PANEL, CONSOLE (INCLUDES, ITEM. 13) (WHITE)
4PANEL, CONSOLE (INCLUDES, ITEM. 13) (RED)
4PANEL, CONSOLE (INCLUDES, ITEM. 13) (MERCURY)
5WP3394427 Whirlpool Clip
6WP8565237 Whirlpool Bracket Assembly
7353424 Whirlpool Connector
8WP94614 Whirlpool Terminal
93936144 Whirlpool Connector
10WP596797 Whirlpool Terminal
11WP488729 Whirlpool Refrigerator Door Screw
12WPW10266747 Whirlpool Channel
13Medallion
143395683 Whirlpool Connector
15Screw, 2-28 x 1/2
16ASSEMBLY, USER INTERFACE
17W10237301 Whirlpool Ring
18WPW10215781 Whirlpool Knob
18WPW10247262 Whirlpool Knob
20COVER, CENTER (WHITE)
20COVER, CENTER (MERCURY)
20COVER, CENTER (RED)
21SEAL, USER INTERFACE
22W10006580 Whirlpool Screw
