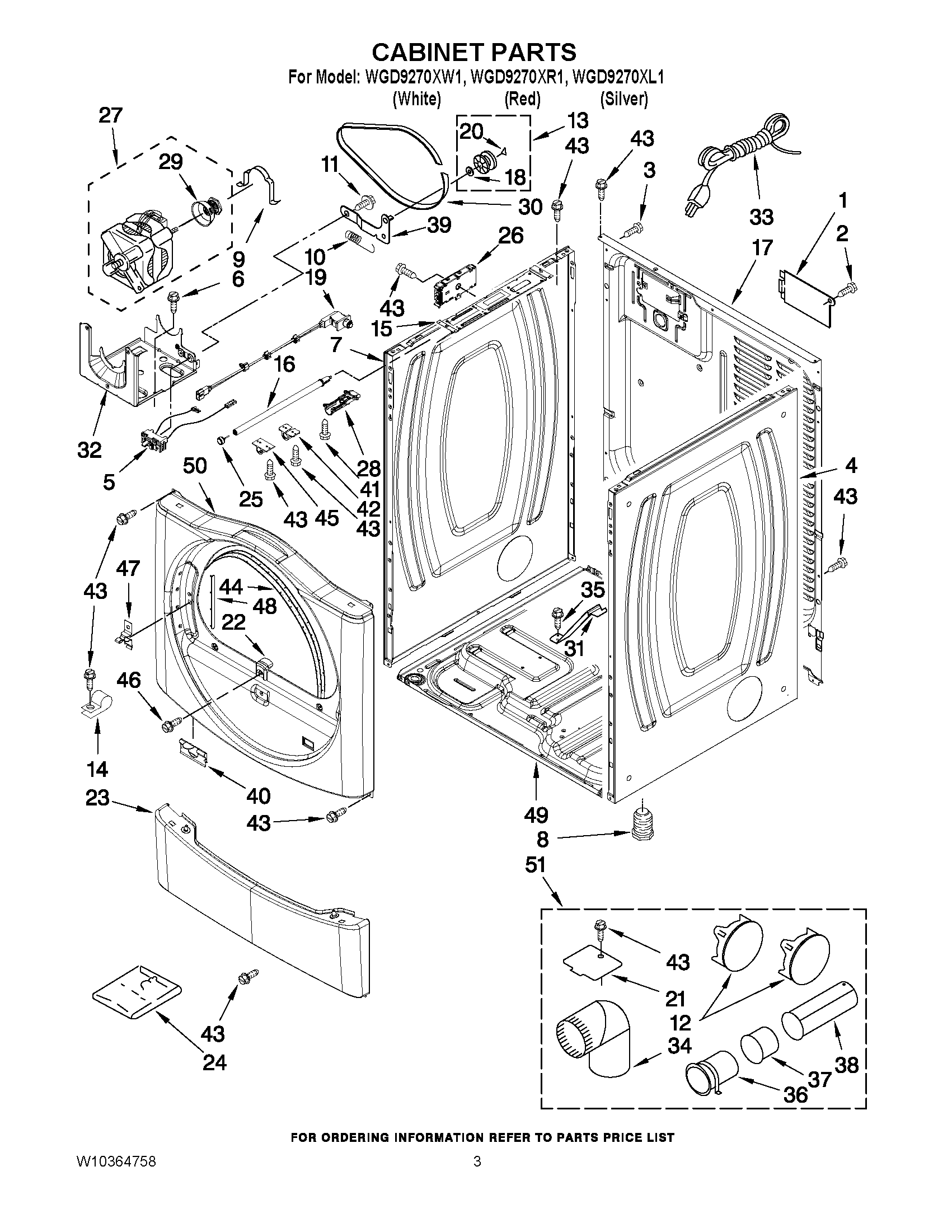

WGD9270XL1 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
NI	W10331132 Whirlpool Plug
1	W10819767 Whirlpool Cover
2	WP90767 Whirlpool Screw
3	W10850756 Whirlpool Screw
4	W10542714 Whirlpool Panel
4	PANEL, SIDE (R.H.) (RED)
5	WPW10411937 Whirlpool Switch
6	SCREW
7	PANEL, SIDE (L.H.) (RED)
7	W10542715 Whirlpool Panel
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	279640 Whirlpool Dryer Idler Pulley Kit
14	3978776 Whirlpool Bracket
15	BRACKET, CONTROL POGO
16	POGO BAR ASSEMBLY
17	PANEL, REAR
19	W10318609 Whirlpool Dryer Door Switch
20	WPW10121334 Whirlpool Washer
21	WPW10354249 Whirlpool Cover
22	8580015 Whirlpool Ramp
23	W10251210 Whirlpool Toe Panel
23	PANEL, TOE (RED)
23	WP8540621 Whirlpool Toe Panel
24	8572546 Whirlpool Washer Duet Sport Epic Stack Kit
25	END CAP
26	WPW10405846-includeCORE Whirlpool WPW10405846 Refrigerator Electronic Control Board + Core
27	279787 Whirlpool Dryer Drive Motor
28	HOUSING ASSEMBLY
29	W10837625 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	W10181903 Whirlpool Bracket
32	W11481730 Whirlpool Bracket
33	W11628810 Whirlpool Power Cord
34	WPW10416072 Whirlpool Elbow
35	WP693995 Whirlpool Screw
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
39	W10837240 Whirlpool Dryer Idler Pulley
40	W11295573 Whirlpool Clip
41	WP489069 Whirlpool Compactor Screw
42	BUSHING-SLEEVE (STOP)
43	WP488729 Whirlpool Refrigerator Door Screw
44	WP3387242 Whirlpool Seal
45	BUSHING-SLEEVE (REAR)
46	WP308685 Whirlpool Microwave Screw
47	WP8565122 Whirlpool Strike Assembly
48	W10085210 Whirlpool Label
48	WPW10085230 Whirlpool Label Assembly
49	W11215531 Whirlpool Base
50	WPL W10251204
50	WPL 8580257
50	WPL W10251203
