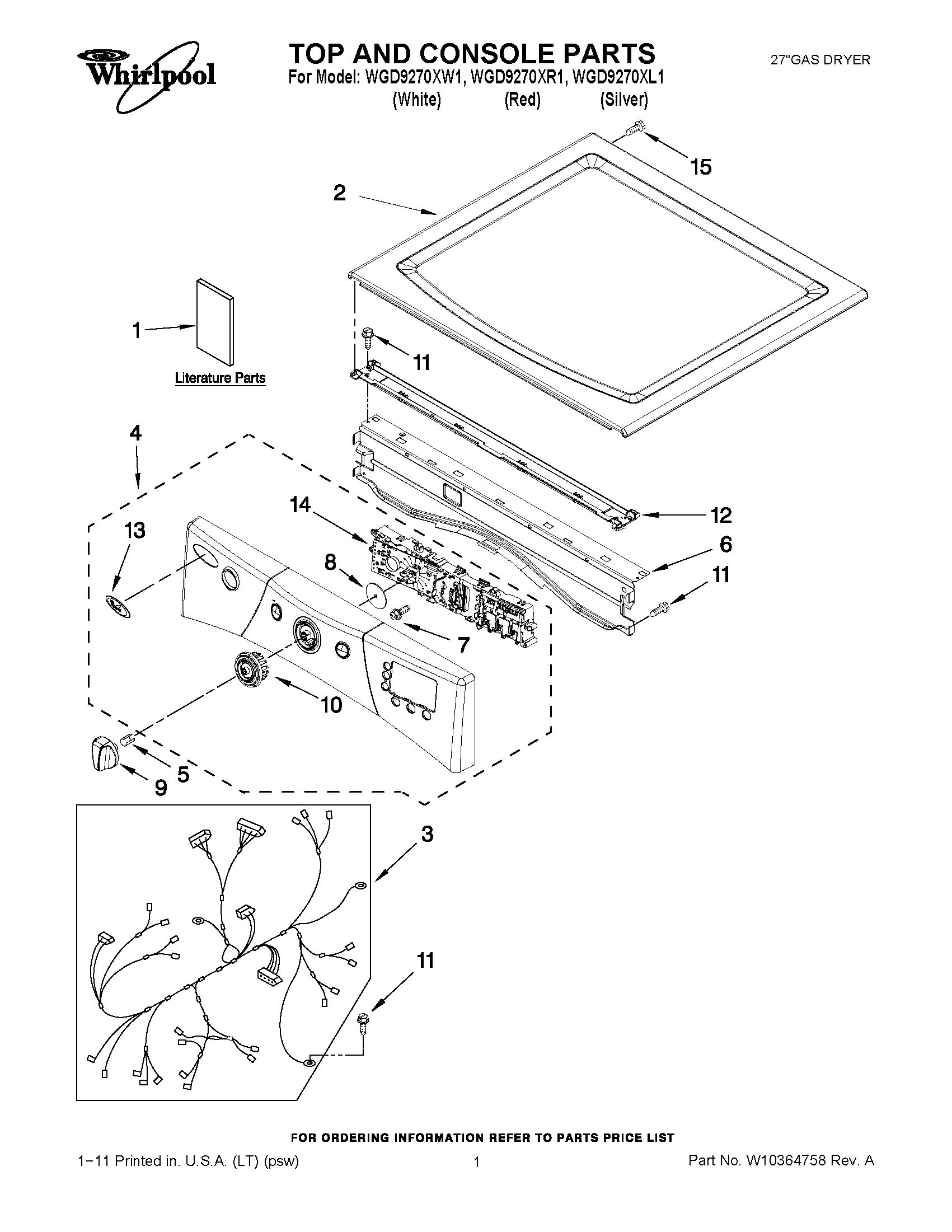

WGD9270XR1 01 – TOP AND CONSOLE PARTS

WGD9270XR1 01 – TOP AND CONSOLE PARTS

Written by

in

WGD9270XR1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
1TECH SHEET
2WPW10336091 Whirlpool Top
2WPW10336080 Whirlpool Top Assembly
2TOP (RED)
3W10278758 Whirlpool Wire Harness
4WPW10215463 Whirlpool Console Assembly
4PANEL, CONSOLE (WHITE)
4PANEL, CONSOLE (SILVER)
5W10153920 Whirlpool Clip
6WP8565237 Whirlpool Bracket Assembly
7W10006580 Whirlpool Screw
8SEAL, USER INTERFACE
9WPW10215781 Whirlpool Knob
9WPW10247262 Whirlpool Knob
10W10237301 Whirlpool Ring
11WP488729 Whirlpool Refrigerator Door Screw
12WPW10266747 Whirlpool Channel
13Medallion
14WPW10215475 Whirlpool Electronic Control Board
15Screw, 2-28 x 1/2
