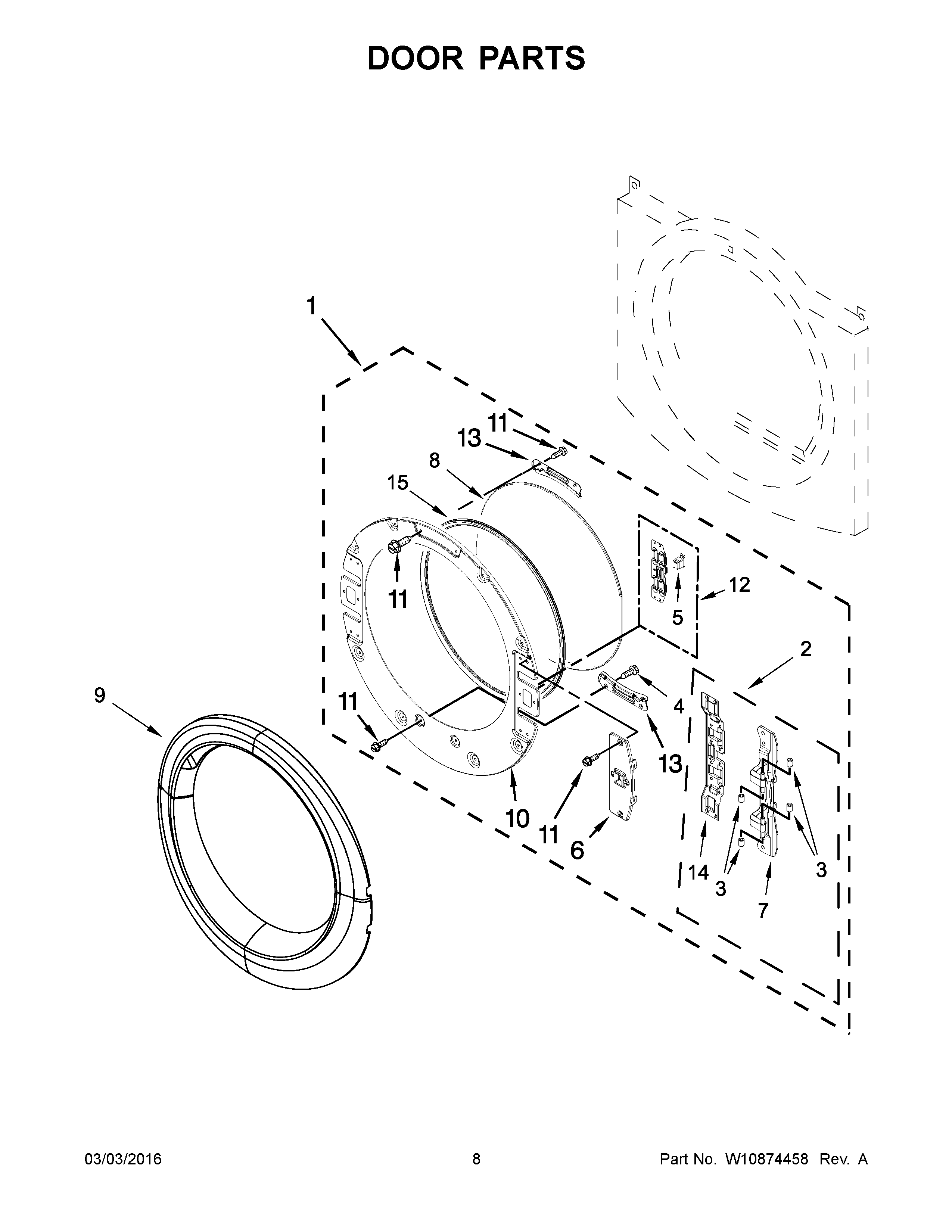

WGD92HEFBD0 05 – DOOR PARTS

WGD92HEFBD0 05 – DOOR PARTS

Written by

in

WGD92HEFBD0 05 – DOOR PARTS

Products

PositionProduct
1DOOR ASSEMBLY, INNER
2HINGE
3WPW10208398 Whirlpool Hinge Pin Cap
4SCREW
5W11240283 Whirlpool Catch Assembly
6W10772469 Whirlpool Door Catch Cover
7HINGE
8W10749947 Whirlpool Window
9W11168739 Whirlpool Door
10DOOR, INNER
11SCREW
12WPW10208254 Whirlpool Catch
13W10208252 Whirlpool Retainer
14WPW10208419 Whirlpool Plate
15W11126230 Whirlpool Seal
