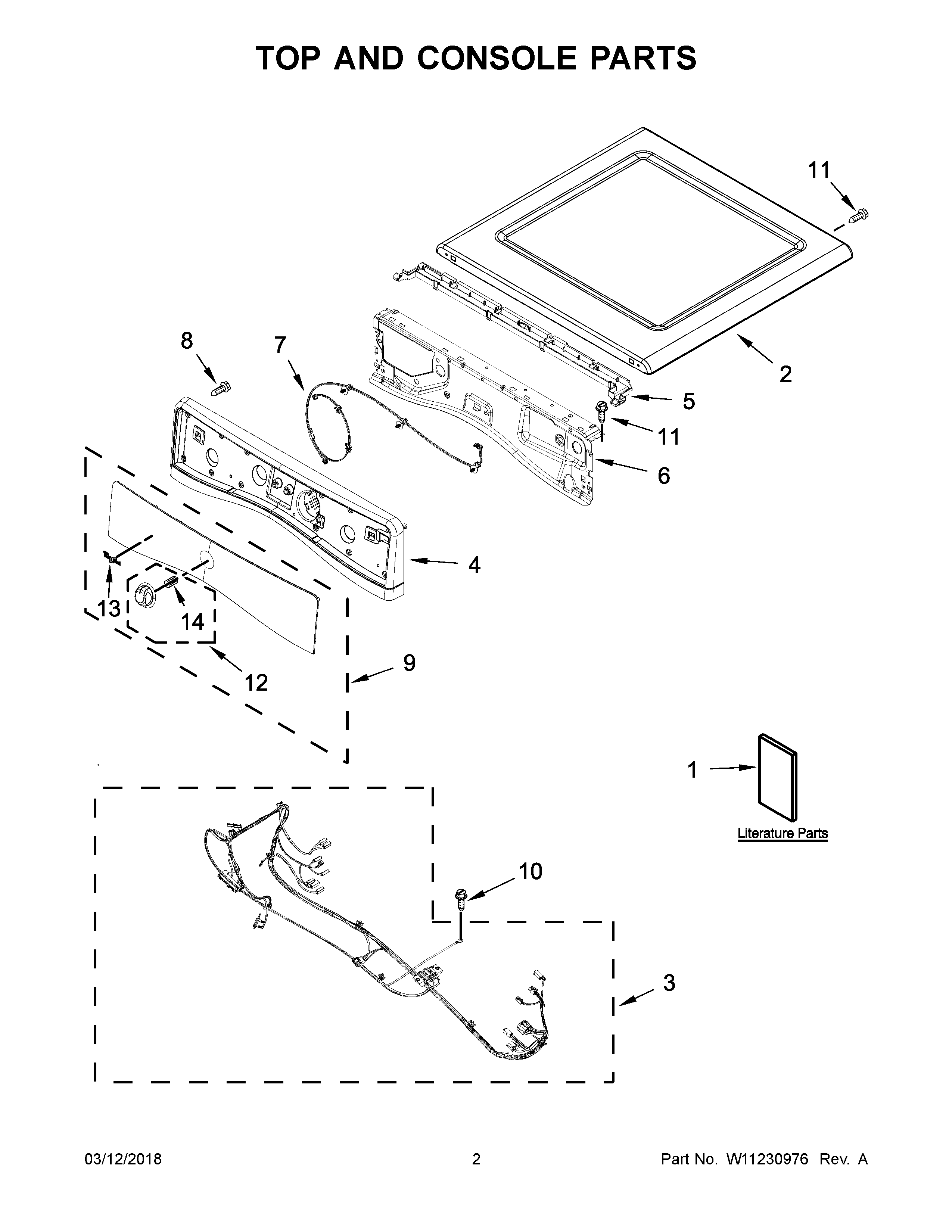

WGD92HEFBD1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1BINSTALLATION INSTRUCTIONS
1ATECH SHEET
1CQUICK START GUIDE
2CWPW10316282 Whirlpool Top Assembly
2AWPW10460919 Whirlpool Top
2BW10628221 Whirlpool Top
2WPW10208383 Whirlpool Top Panel
3HARNESS, MAIN WIRING
4BW10876286 Whirlpool Console
4WPW10391519 Whirlpool Console
4CW10875910 Whirlpool Console Assembly
4AW10876224 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W10837344 Whirlpool Wire Harness
8W10853898 Whirlpool Screw
9W10919216 Whirlpool Control Panel
9AW10919217 Whirlpool Control Panel
9CW10919218 Whirlpool Control Panel
9BASSEMBLY, OVERLAY (BLACK)
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10875909 Whirlpool Timer Knob
13AWPW10393264 Whirlpool Refrigerator Nameplate
13W11178521 Whirlpool Dishwasher Nameplate
14WP8536939 Whirlpool Spring Clip
