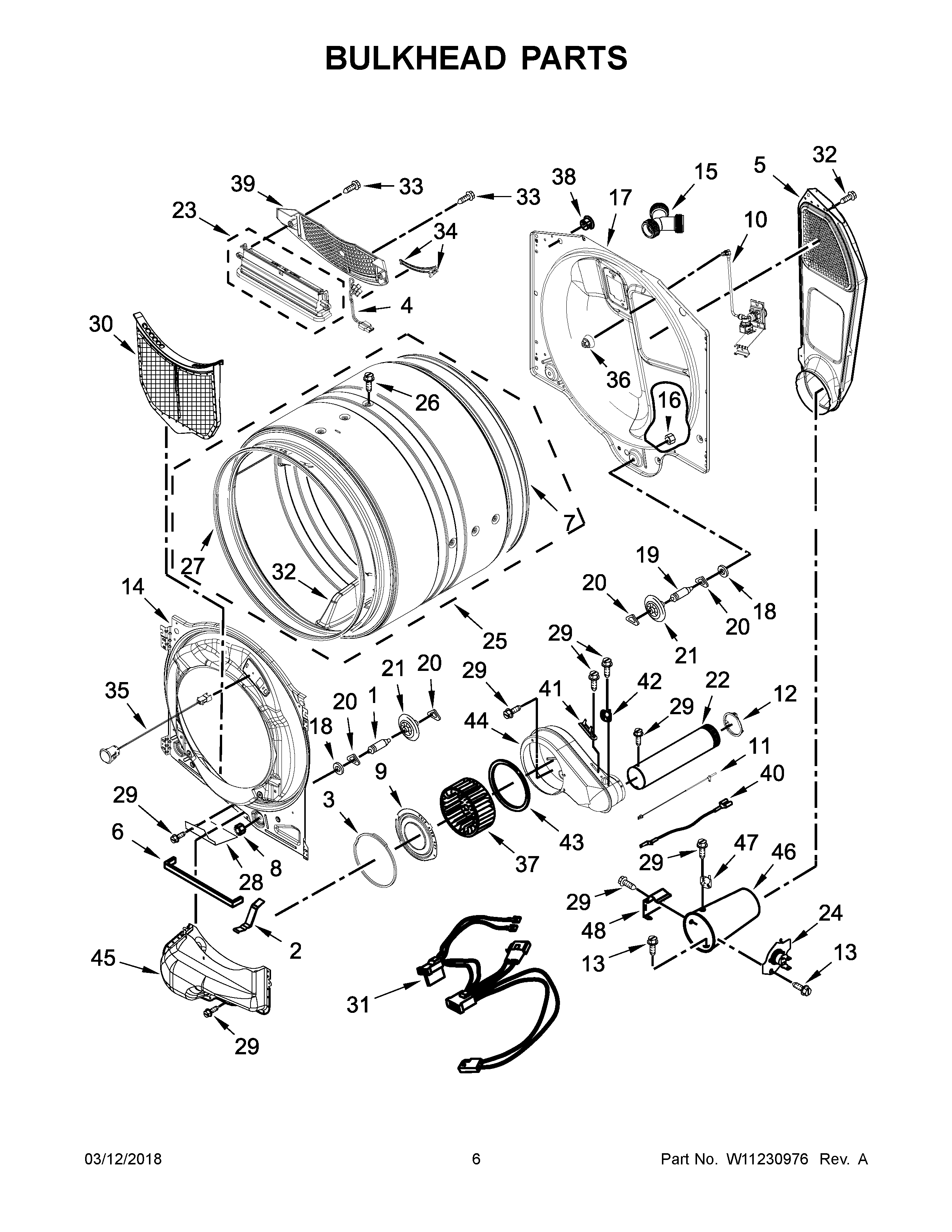

WGD92HEFBD1 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	W10414388 Whirlpool Clip
3	W10211899 Whirlpool Seal
4	WPW10298258 Whirlpool Wire Harness
5	WPW10293765 Whirlpool Air Duct
6	W11676493 Whirlpool Seal Assembly
7	280114 Whirlpool Dryer Drum Seal
8	WPW10080210 Whirlpool Nut
9	W10211901 Whirlpool Cover Assembly
10	W11216837 Whirlpool Valve
11	W11396709 Whirlpool Gas Inlet Thermostat
12	WPW10344699 Whirlpool Collar
13	WP693995 Whirlpool Screw
14	W10673491 Whirlpool Bulkhead Assembly
15	WPW10336486 Whirlpool Connector
16	WPW10080190 Whirlpool Nut
17	W11299321 Whirlpool Bulkhead
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	WPW10342188 Whirlpool Exhaust Pipe
23	HOUSNG-DRYER LINT
24	WP8573713 Whirlpool Thermal Fuse
25	W10541657 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	W11193479 Whirlpool Seal
28	W11257251 Whirlpool Shield
29	WP488729 Whirlpool Refrigerator Door Screw
30	SCREEN – LINT. ALPHA W/FELT
31	W10708958 Whirlpool Wire Harness
32	W10280771 Whirlpool Drum Baffle
33	W11590579 Whirlpool Screw
34	WP3387223 Whirlpool Electrode Assembly
35	ASSEMBLY, DRUM LIGHT
36	W11230609 Whirlpool Nozzle
37	WP697772 Whirlpool Dryer Blower Wheel
38	8529007 Whirlpool Plug
39	W11125442 Whirlpool Outer Grille
40	W10525140 Whirlpool Wire Harness
41	FUSE-THRML
42	WP8577274 Whirlpool Dryer Thermistor
43	WP697770 Whirlpool Blower Cover Plate Seal
44	WPW10211911 Whirlpool Housing
45	WPW10211896 Whirlpool Duct Lint
46	WP8573824 Whirlpool Funnel
47	THRMST-FIX
48	WP338906 Whirlpool Dryer Gas Sensor
