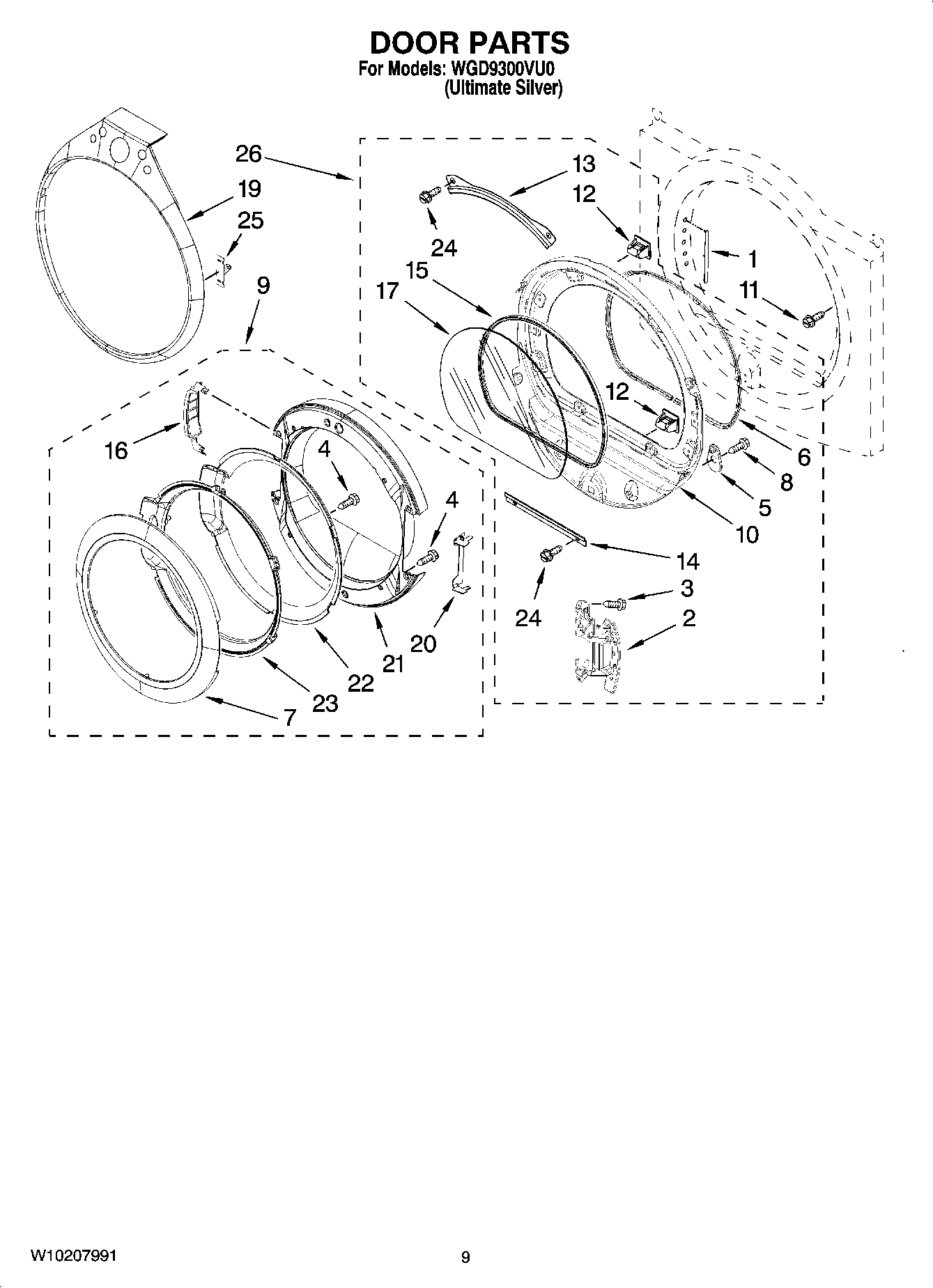

WGD9300VU0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	8579666ARP Whirlpool Door Kit
	ACCESSORY PARTS
	WPL 8212605
	8541503 Whirlpool Stacking Kit
	8212450A Whirlpool Dryer Rack Assembly
	ACCESSORY PARTS, KIT, HOLD DOWN
	4392067 Whirlpool Dryer Repair Kit
	350938 Whirlpool Spray Gun
	799344 Whirlpool Refrigerator Paint
1	WPW10085230 Whirlpool Label Assembly
2	WPW10310366 Whirlpool Hinge
3	WPW10159996 Whirlpool Screw
4	SCREW
5	Screw-Plug
6	WPW10139457 Whirlpool Door Seal
7	Handle, Ring Door (Silver)
8	Screw, 1/4-20 x 1/2
9	Door Assembly (Outer) (Silver)
10	Door Assembly (Inner) (Includes Illus. 12 & 18)
11	WP355515 Whirlpool Screw
12	279570 Whirlpool Dryer Door Latch Kit
13	8519356 Whirlpool Retainer
14	W10822054 Whirlpool Retainer
15	8579662 Whirlpool Seal
16	(Following Parts Not Included)
16	Cover-Hinge, Stationary (LH)
16	COVER HINGE (STATIONARY (RH))
17	WP8566254 Whirlpool Window Assembly
19	Tear-Drop Trim & Clip Assembly Clip Assembly
20	Door Shield
21	Door, Intermediate
22	Door Mask
23	Door Screen
24	WP3373329 Whirlpool Dishwasher Screw
25	WPW10129065 Whirlpool Clip
26	INNER DOOR ASSEMBLY
