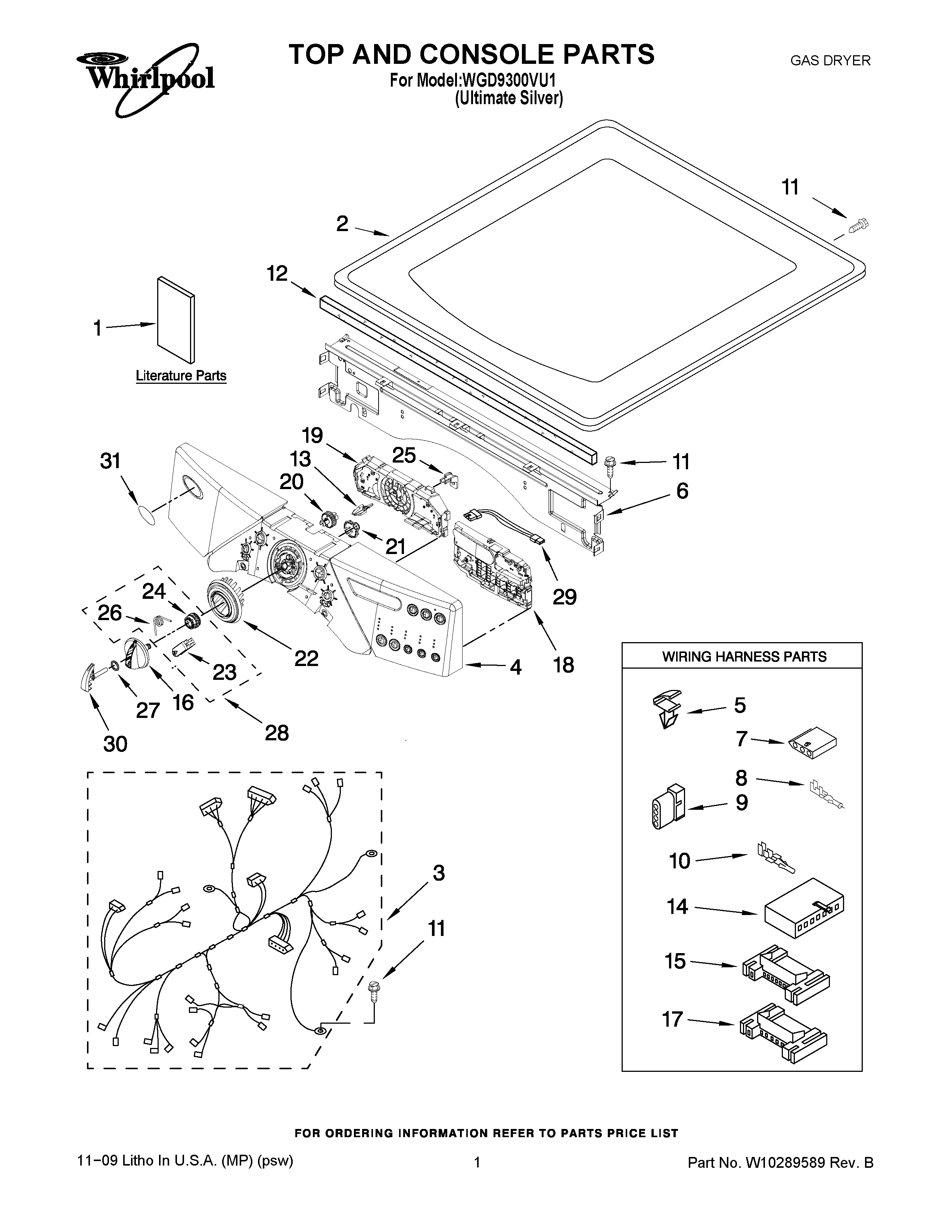

WGD9300VU1 01 – TOP AND CONSOLE PARTS

WGD9300VU1 01 – TOP AND CONSOLE PARTS

Written by

in

WGD9300VU1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION, INSTRUCTION
1USE & CARE GUIDE
1TECH SHEET
2Top (Ultimate Silver)
3W10111062 Whirlpool Wire Harness
4PANEL, CONSOLE ASSEMBLY
5WP3394427 Whirlpool Clip
6BRACKET, CONSOLE (INCLUDE, ITEM. 12)
7353424 Whirlpool Connector
8WP94614 Whirlpool Terminal
93936144 Whirlpool Connector
10WP596797 Whirlpool Terminal
11WP488729 Whirlpool Refrigerator Door Screw
12W10112267 Whirlpool Seal Assembly
13W10012480 Whirlpool WP Dishwasher Encoder Adapt Wheel
143936150 Whirlpool Connector
153395683 Whirlpool Connector
16CABINET (NOT A SERVICEABLE PART)
172203186 Whirlpool Connector
18USER-INTERFACE (RIGHT)
19WPW10279686 Whirlpool Electronic Control Board
20Encoder-Wheel
21Retainer-Snap
22KNOB, LIGHT RING (INCLUDES: ITEM 21)
23Rast, Wheel Assy. (Service Only With Item. 28)
24DETENT WHEEL
25W10112268 Whirlpool Clip
26Knob, Spring (Service Only With Item 28)
27O-RING, KNOB
28Encoder, Wheel Kit (Includes Items: 23, 24, & 26
29W10242906 Whirlpool Wire Harness
30CAP SHELL-KNOB
31Medallion
