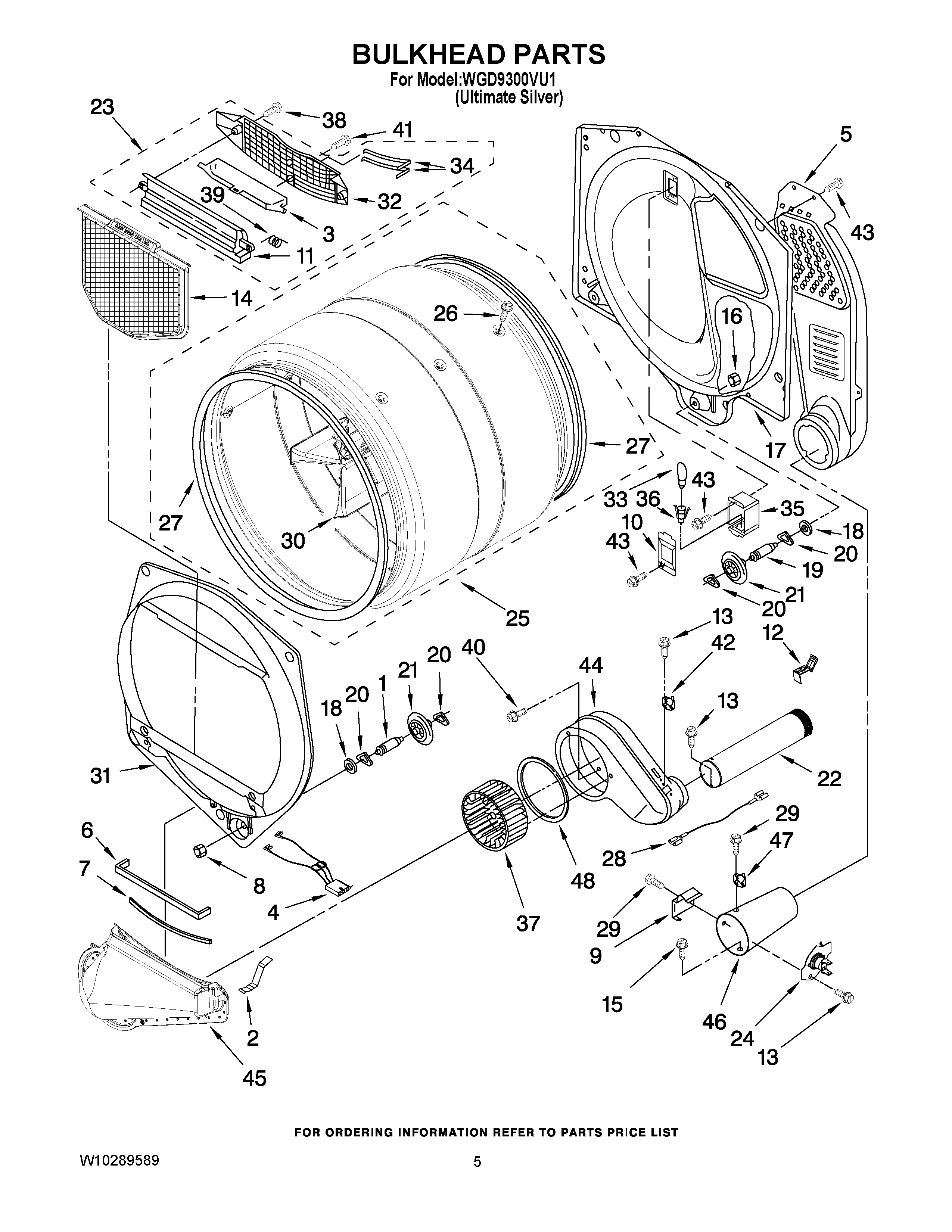

WGD9300VU1 03 – BULKHEAD PARTS
Written by
in
WGD9300VU1 03 – BULKHEAD PARTS
Products
Position
Product
1
SHAFT
2
WP8066208 Whirlpool Clip
3
W11222846 Whirlpool Door
4
WP3406653 Whirlpool Wire Harness
5
W11168650 Whirlpool Air Duct
6
WP697813 Whirlpool Seal
8
WPW10080210 Whirlpool Nut
9
WP338906 Whirlpool Dryer Gas Sensor
10
W11226088 Whirlpool Lens Assembly
11
W11129408 Whirlpool Out Housing
12
W11684573 Whirlpool Clip Assembly
13
WP90767 Whirlpool Screw
14
W10120998 Whirlpool Dryer Lint Screen Filter
15
WP693995 Whirlpool Screw
16
WPW10080190 Whirlpool Nut
17
WPW10080170 Whirlpool Bulkhead Assembly
18
W11236646 Whirlpool Washer Assembly
19
SHAFT
20
WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21
WPW10314173 Whirlpool Dryer Drum Support Wheel
22
279936 Whirlpool Exhaust Pipe
23
W10253353 Whirlpool Outer Housing
24
WP8573713 Whirlpool Thermal Fuse
25
W10545924 Whirlpool Drum Assembly
26
W10853898 Whirlpool Screw
27
280114 Whirlpool Dryer Drum Seal
28
JUMPER, TCO HIGH LIMIT
30
WPW10113136 Whirlpool Drum Baffle
31
WPL W10252304
32
W11086603 Whirlpool Dryer Link Screen Air Grille
33
WP22002263 Whirlpool Dryer 10W Light Bulb
34
WP3387223 Whirlpool Electrode Assembly
35
8578825 Whirlpool Bracket
36
W11222979 Whirlpool Socket
37
WP697772 Whirlpool Dryer Blower Wheel
38
WP3387230 Whirlpool Screw
39
WP3394986 Whirlpool Spring
40
WP489463 Whirlpool Refrigerator Screw
42
WP8577274 Whirlpool Dryer Thermistor
43
WP488729 Whirlpool Refrigerator Door Screw
44
W10888146 Whirlpool Housing
45
WPW10128606 Whirlpool Lint Duct
46
WP8573824 Whirlpool Funnel
47
WP8573028 Whirlpool Thermostat Assembly
48
WP697770 Whirlpool Blower Cover Plate Seal
←
