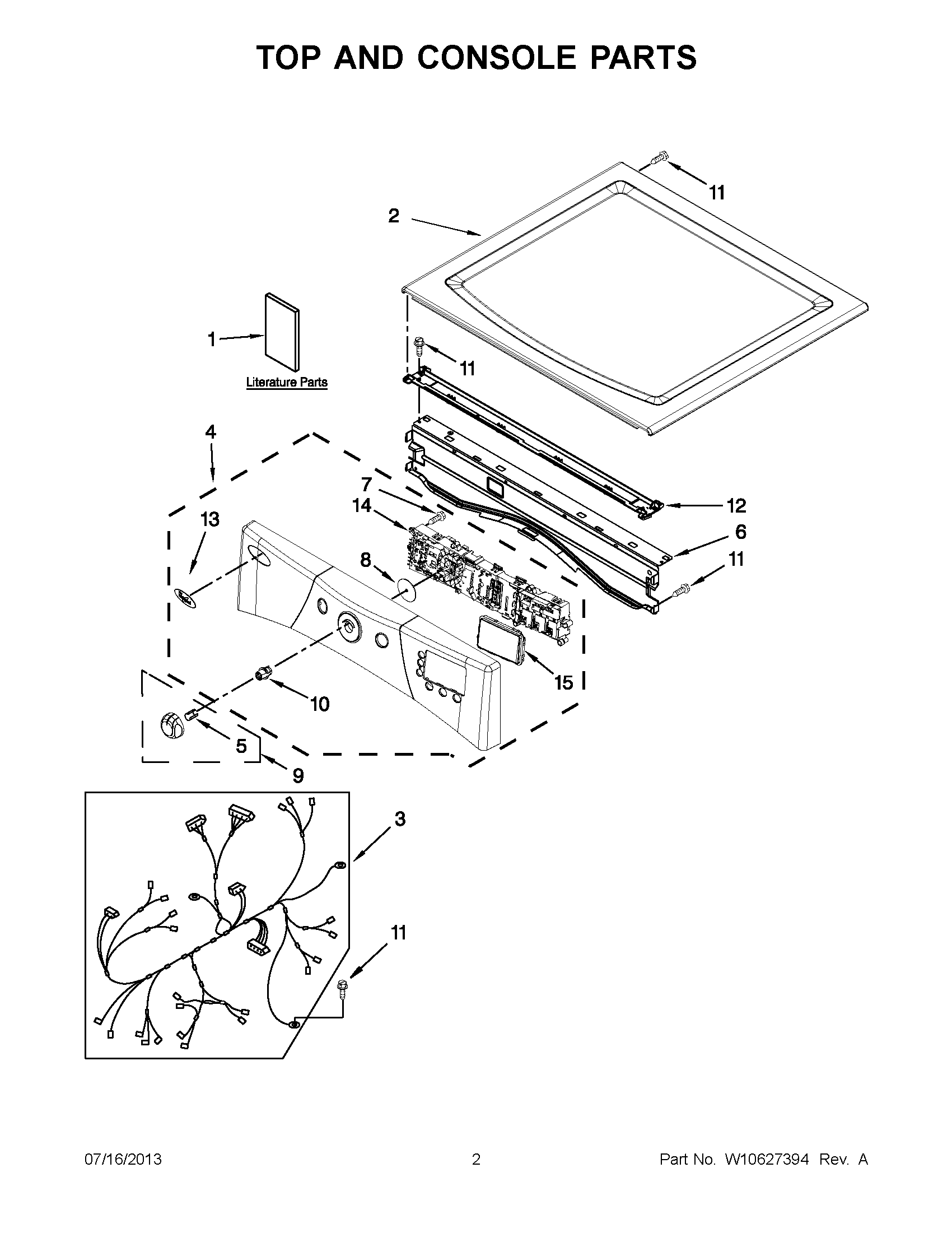

WGD9371YW2 01 – TOP AND CONSOLE PARTS

WGD9371YW2 01 – TOP AND CONSOLE PARTS

Written by

in

WGD9371YW2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1WIRING DIAGRAM
1INSTALLATION INSTRUCTIONS
1TECH SHEET
2WPW10336080 Whirlpool Top Assembly
2WPW10336091 Whirlpool Top
3HARNESS, WIRING
4PANEL, CONSOLE (WHITE)
4PANEL, CONSOLE (SILVER)
5WP8536939 Whirlpool Spring Clip
6WP8565237 Whirlpool Bracket Assembly
7W10006580 Whirlpool Screw
8SEAL, USER INTERFACE
9WPW10251394 Whirlpool Knob
10BUSHING, SHAFT KNOB
11WP488729 Whirlpool Refrigerator Door Screw
12WPW10266747 Whirlpool Channel
13BADGE
14WPW10387234 Whirlpool Electronic Control Board + Core
15WINDOW, DISPLAY
