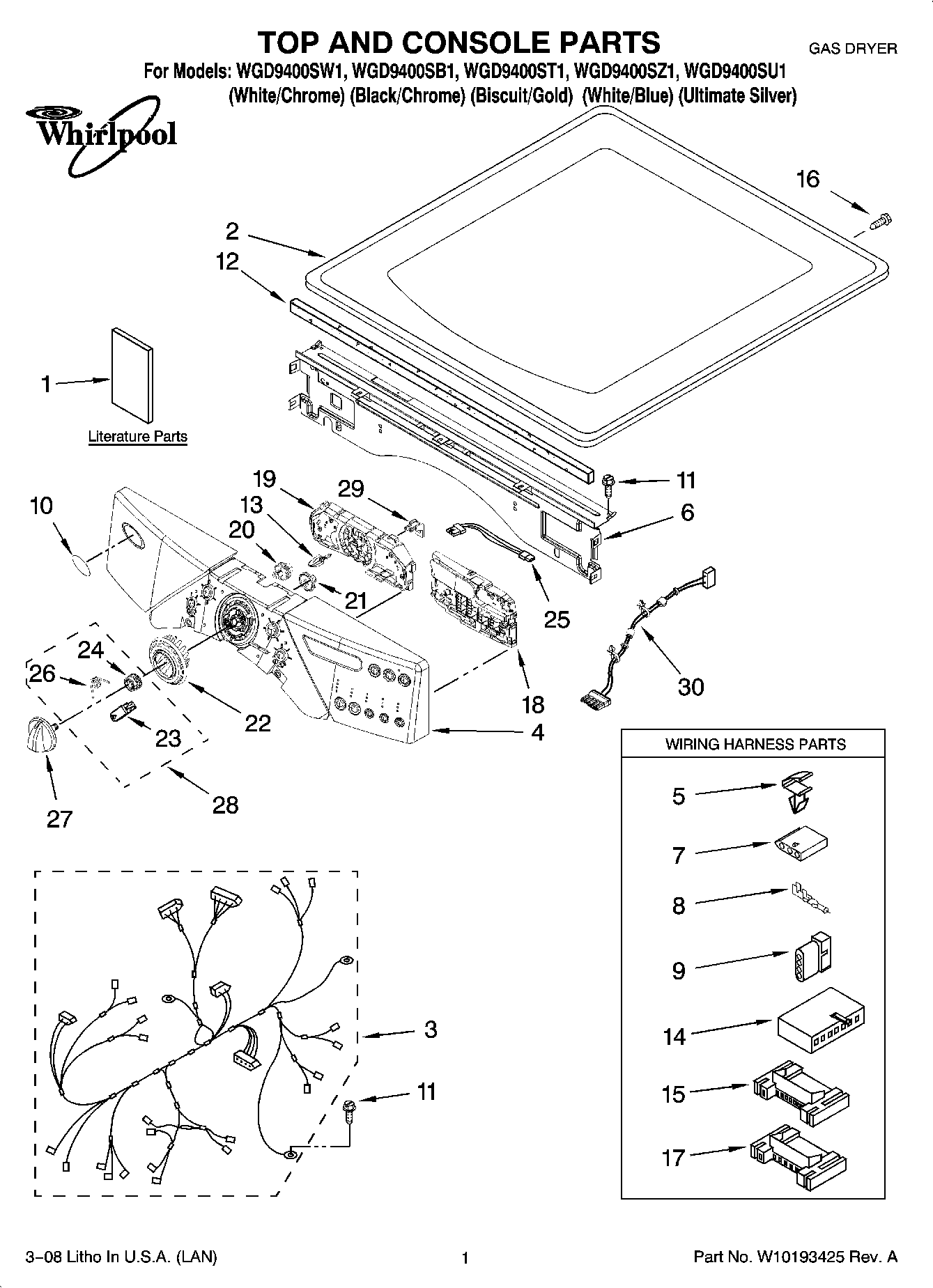

WGD9400SB1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	TECH SHEET
1	USE & CARE GUIDE
1	GUIDE, QUICK START
2	Top (Black/Chrome)
2	TOP (BISCUIT)
2	Top (Ultimate Silver)
2	Top (White)
3	W10111011 Whirlpool Wire Harness
4	Panel, Console (Includes Illus: 20,21,22,27,28.) (White)
4	Panel, Console (Includes Illus: 20,21,22,27,28.) (Biscuit)
4	Panel, Console (Includes Illus: 20,21,22,27,28.) (White/Blue)
4	Panel, Console (Includes Illus: 20,21,22,27,28.) (Black)
4	Panel, Console (Includes Illus: 20,21,22,27,28.)
5	WP3394427 Whirlpool Clip
6	Bracket, Console (Includes No.12)
7	353424 Whirlpool Connector
8	WP94614 Whirlpool Terminal
9	3936144 Whirlpool Connector
10	Medallion
11	WP488729 Whirlpool Refrigerator Door Screw
12	W10112267 Whirlpool Seal Assembly
13	W10012480 Whirlpool WP Dishwasher Encoder Adapt Wheel
14	3936150 Whirlpool Connector
15	3395683 Whirlpool Connector
16	Screw, 8-18 x 1/2
17	2203186 Whirlpool Connector
18	User Interface (Right)
19	User Interface (Center) (Includes: Illus. 13)
20	Encoder-Wheel
21	Retainer-Snap
22	KNOB, LIGHT RING (INCLUDES: ITEM 21)
23	Rast, Wheel Assy. (Service Only With Item. 28)
24	Detent Wheel (Service Only With Illus. 28)
25	Harness, Communication
26	Knob, Spring (Service Only With Item 28)
27	WPL W10116706
27	Knob, Control (Includes: Item. 21) (Ultimate Silver)
27	Knob, Control (Includes: Item. 21) (White)
27	Knob, Control (Includes: Item. 21) (Biscuit)
27	Knob, Control (Black/Chrome (Includes: Item. 21))
28	Encoder, Wheel Kit (Includes Items: 23, 24, & 26
29	W10112268 Whirlpool Clip
30	WPL W10111020
