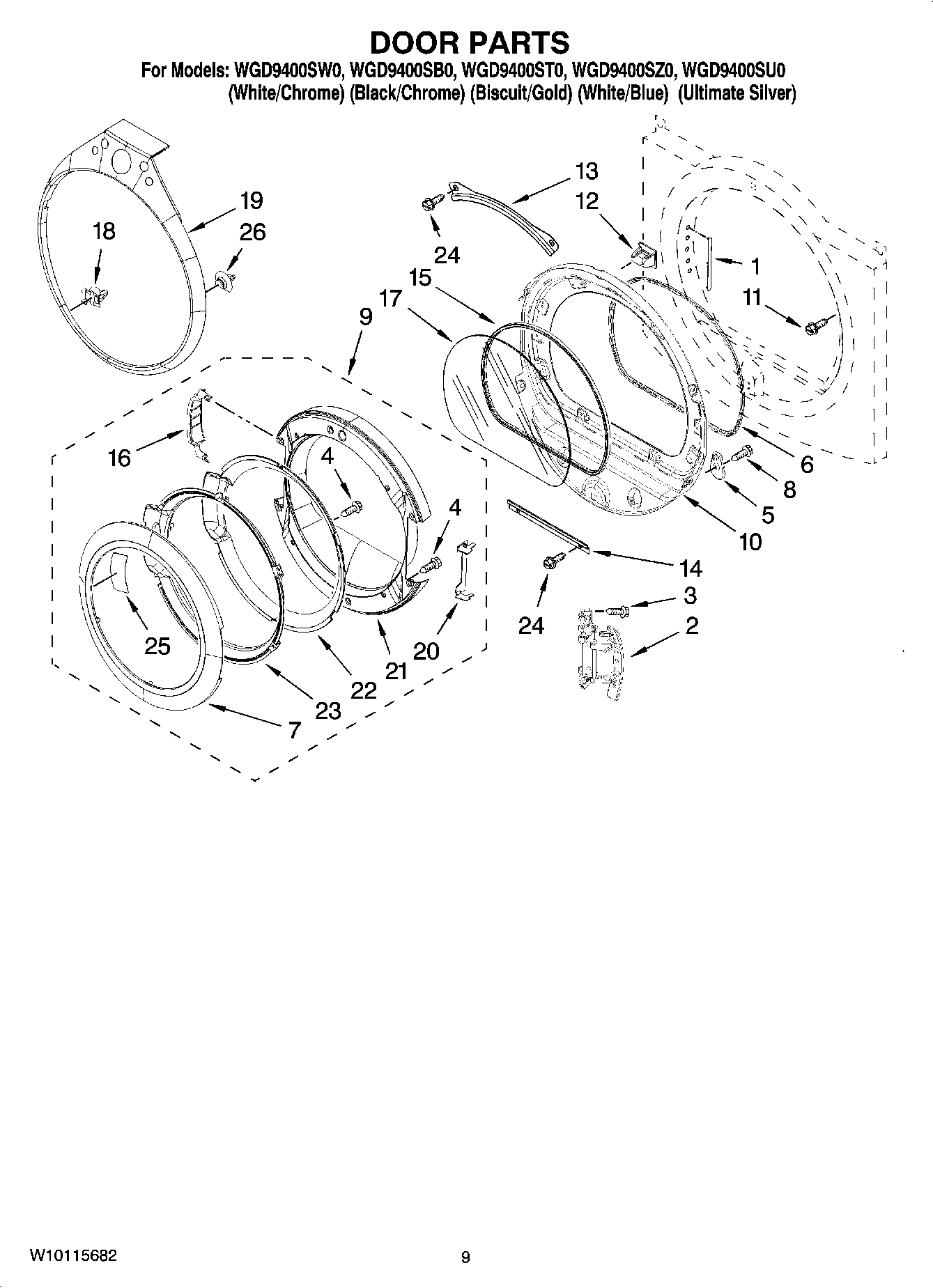

WGD9400ST0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

WGD9400ST0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

WGD9400ST0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
8541503 Whirlpool Stacking Kit
8212450A Whirlpool Dryer Rack Assembly
ACCESSORY PARTS, KIT, HOLD DOWN
WPL 8212605
8579666ARP Whirlpool Door Kit
4392067 Whirlpool Dryer Repair Kit
WPL 786032
WPL 786020
PAINT, TOUCH-UP (1/2oz.) (Black)
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPL ARI165765A
1W10085210 Whirlpool Label
1WPW10085230 Whirlpool Label Assembly
2WPW10310366 Whirlpool Hinge
3Screw, 10-24 x 3/64
4SCREW
5Screw-Plug
6WPW10139457 Whirlpool Door Seal
7Handle, Ring & Pad Assembly (Gold)
7Handle, Ring & Pad Assembly (Chrome)
7Handle, Ring & Pad Assembly (Silver)
7Handle, Ring & Pad Assembly (Gold)
8WP308685 Whirlpool Microwave Screw
9Door Assembly (Outer) (White/Blue)
9Door Assembly (Outer)
9Door Assembly (Outer) (Gold)
10Door Assembly (Inner) (Includes Illus. 12 & 18)
11WP355515 Whirlpool Screw
12WP3389441 Whirlpool Door Catch
138519356 Whirlpool Retainer
14W10822054 Whirlpool Retainer
15Gasket, Window
16Cover-Hinge, Stationary (RH)
16Following Parts Not Included
16Cover-Hinge, Stationary (LH)
17WP8566254 Whirlpool Window Assembly
18WPW10129065 Whirlpool Clip
19Tear-drop Trim & Clip Assembly (Biscuit)
19Tear-drop Trim & Clip Assembly (Black)
19Tear-drop Trim & Clip Assembly (White/Blue)
19Tear-drop Trim & Clip Assembly (Ultimate Silver)
19Tear-drop Trim & Clip Assembly (Chrome)
20Door Shield
21Door-Intermediate
22Door Mask
23Door Screen
24WP3373329 Whirlpool Dishwasher Screw
25W10121607 Whirlpool Cushion
26Clip-Trim (6)
