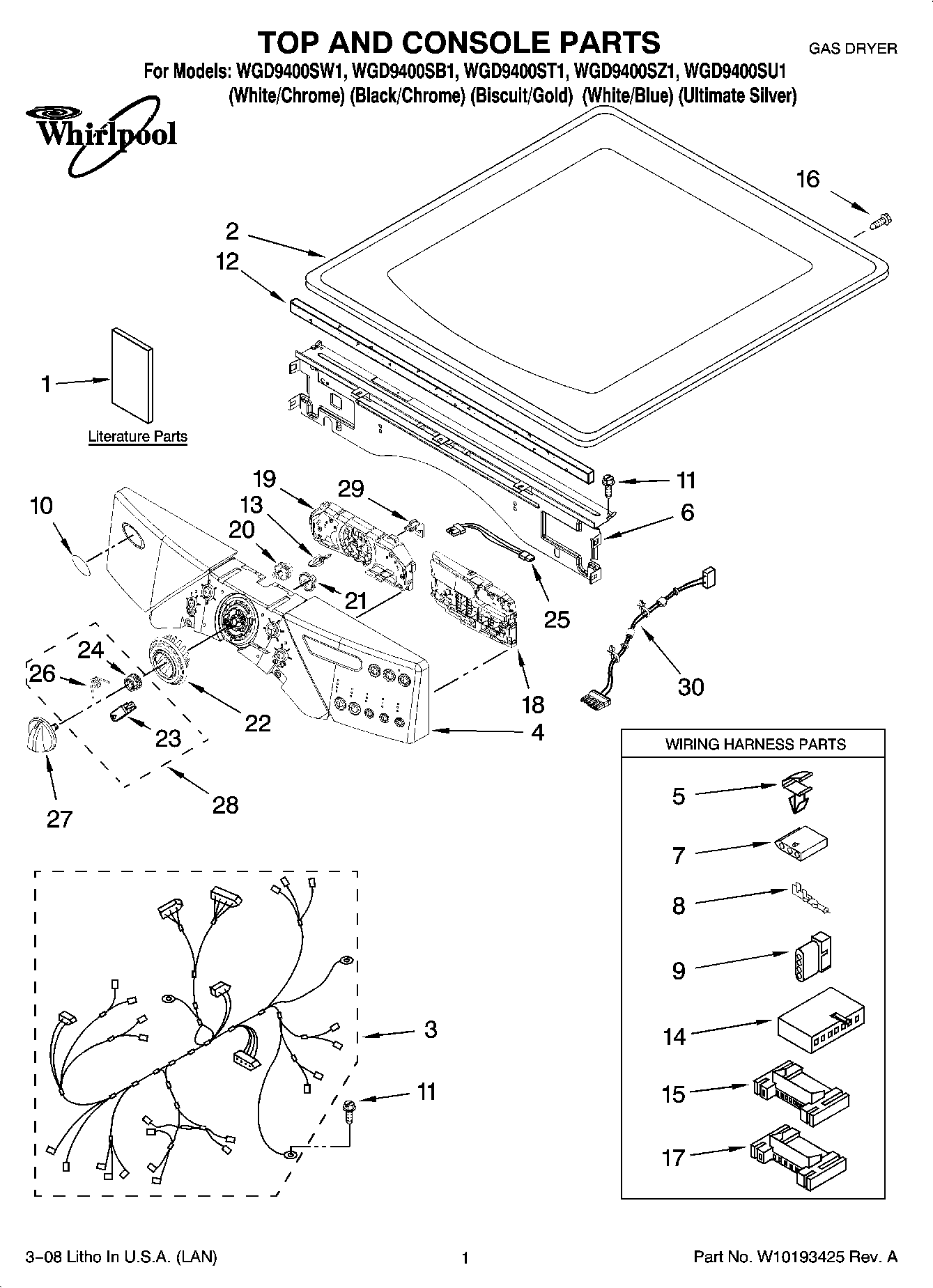

WGD9400ST1 01 – TOP AND CONSOLE PARTS

WGD9400ST1 01 – TOP AND CONSOLE PARTS

Written by

in

WGD9400ST1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1USE & CARE GUIDE
1GUIDE, QUICK START
2Top (Black/Chrome)
2TOP (BISCUIT)
2Top (Ultimate Silver)
2Top (White)
3W10111011 Whirlpool Wire Harness
4Panel, Console (Includes Illus: 20,21,22,27,28.) (White)
4Panel, Console (Includes Illus: 20,21,22,27,28.) (Biscuit)
4Panel, Console (Includes Illus: 20,21,22,27,28.) (White/Blue)
4Panel, Console (Includes Illus: 20,21,22,27,28.) (Black)
4Panel, Console (Includes Illus: 20,21,22,27,28.)
5WP3394427 Whirlpool Clip
6Bracket, Console (Includes No.12)
7353424 Whirlpool Connector
8WP94614 Whirlpool Terminal
93936144 Whirlpool Connector
10Medallion
11WP488729 Whirlpool Refrigerator Door Screw
12W10112267 Whirlpool Seal Assembly
13W10012480 Whirlpool WP Dishwasher Encoder Adapt Wheel
143936150 Whirlpool Connector
153395683 Whirlpool Connector
16Screw, 8-18 x 1/2
172203186 Whirlpool Connector
18User Interface (Right)
19User Interface (Center) (Includes: Illus. 13)
20Encoder-Wheel
21Retainer-Snap
22KNOB, LIGHT RING (INCLUDES: ITEM 21)
23Rast, Wheel Assy. (Service Only With Item. 28)
24Detent Wheel (Service Only With Illus. 28)
25Harness, Communication
26Knob, Spring (Service Only With Item 28)
27WPL W10116706
27Knob, Control (Includes: Item. 21) (Ultimate Silver)
27Knob, Control (Includes: Item. 21) (White)
27Knob, Control (Includes: Item. 21) (Biscuit)
27Knob, Control (Black/Chrome (Includes: Item. 21))
28Encoder, Wheel Kit (Includes Items: 23, 24, & 26
29W10112268 Whirlpool Clip
30WPL W10111020
