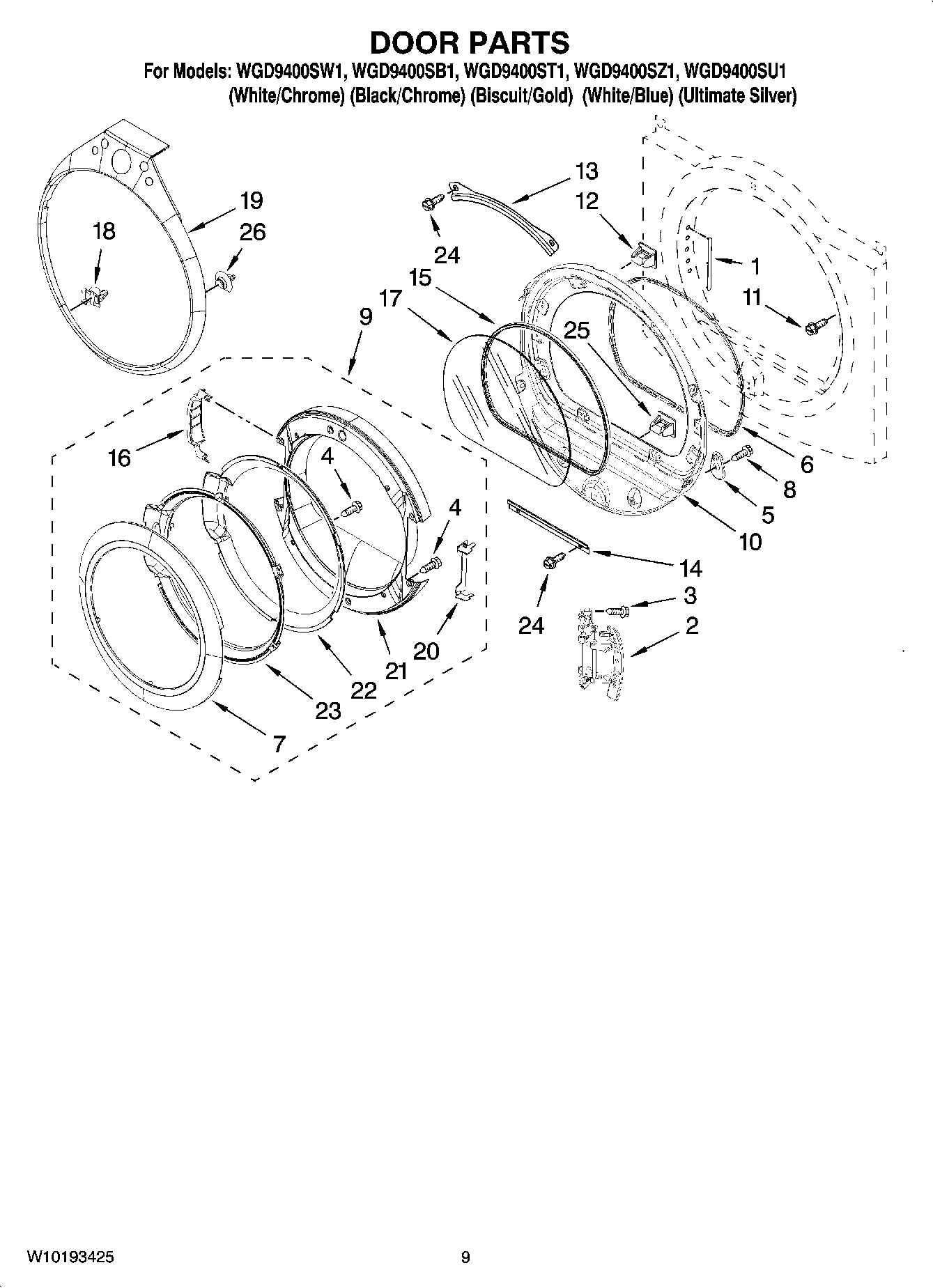

WGD9400ST1 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

WGD9400ST1 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

WGD9400ST1 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL 786032
4392067 Whirlpool Dryer Repair Kit
WPL ARI165768A
8579666ARP Whirlpool Door Kit
ACCESSORY PARTS, KIT, HOLD DOWN
8212450A Whirlpool Dryer Rack Assembly
8541503 Whirlpool Stacking Kit
WPL 8212605
WPL 786020
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
72032 Whirlpool Touch Up Paint Black
350938 Whirlpool Spray Gun
1W10085210 Whirlpool Label
1WPW10085230 Whirlpool Label Assembly
2WPW10310366 Whirlpool Hinge
3WPW10159996 Whirlpool Screw
4SCREW
5Screw-Plug
6WPW10139457 Whirlpool Door Seal
7Handle, Ring Door (Silver)
7HANDLE, RING ASSEMBLY (WHITE/BLUE)
7Handle, Ring Door (Gold)
8WP308685 Whirlpool Microwave Screw
9Door Assembly (Outer) (White/Blue)
9Door Assembly (Outer) (Silver)
9Door Assembly (Outer) (Gold)
10Door Assembly (Inner) (Includes Illus. 12 & 18)
11WP355515 Whirlpool Screw
12279570 Whirlpool Dryer Door Latch Kit
138519356 Whirlpool Retainer
14W10822054 Whirlpool Retainer
158579662 Whirlpool Seal
16(Following Parts Not Included)
16Cover-Hinge, Stationary (LH)
16COVER HINGE (STATIONARY (RH))
17WP8566254 Whirlpool Window Assembly
18WPW10129065 Whirlpool Clip
19Tear-drop Trim & Clip Assembly (White/Blue)
19Tear-drop Trim & Clip Assembly (Biscuit)
19Tear-drop Trim & Clip Assembly (Black)
19Tear-drop Trim & Clip Assembly (Ultimate Silver)
19Tear-drop Trim & Clip Assembly (White)
20Door Shield
21Door, Intermediate
22Door Mask
23Door Screen
24WP3373329 Whirlpool Dishwasher Screw
26Clip-Trim (6)
