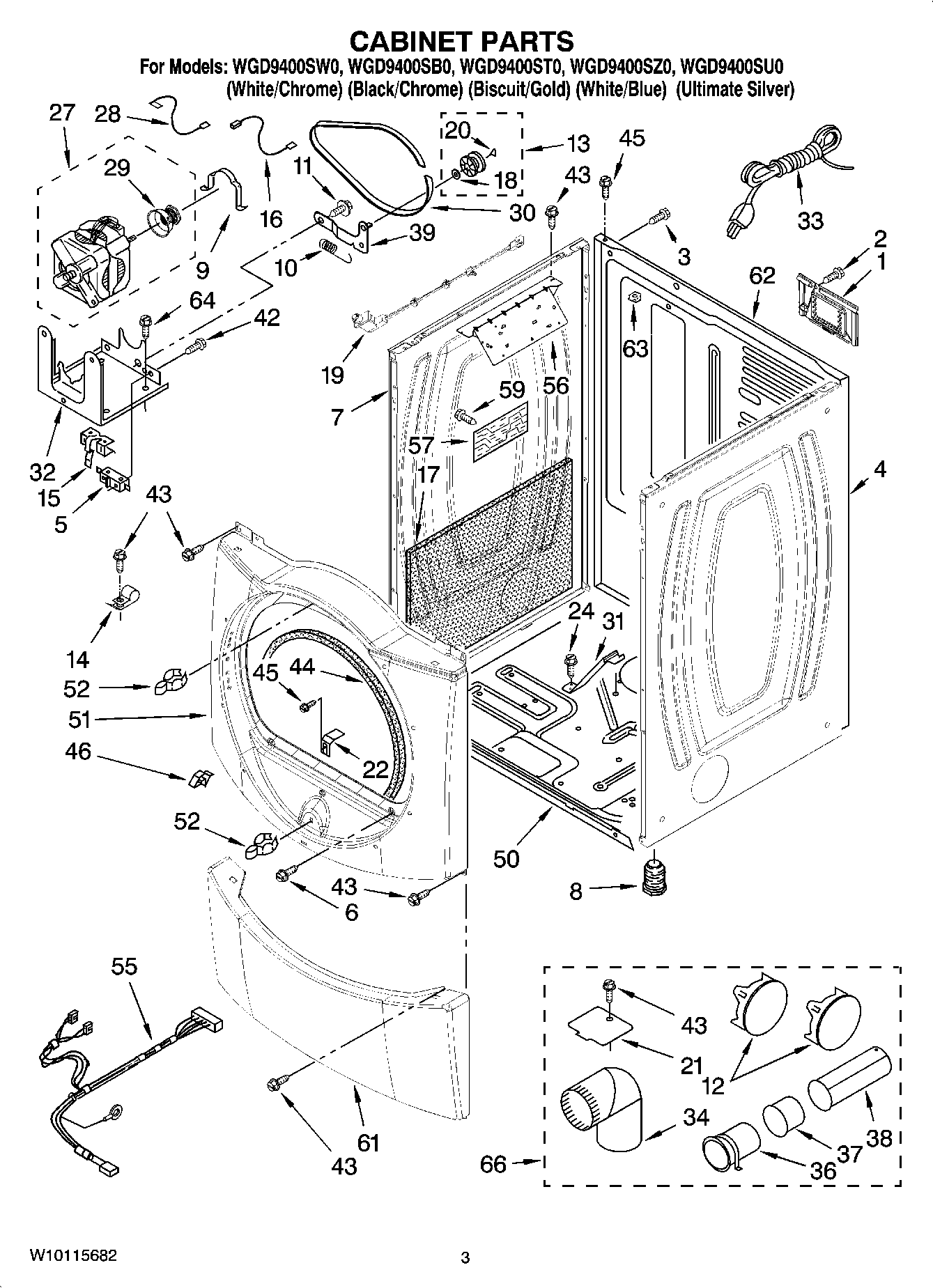

WGD9400SW0 02 – CABINET PARTS

WGD9400SW0 02 – CABINET PARTS

Written by

in

WGD9400SW0 02 – CABINET PARTS

Products

PositionProduct
1W10819767 Whirlpool Cover
2WP90767 Whirlpool Screw
3W10850756 Whirlpool Screw
4Panel, Side (R.H.) (Ultimate Silver)
4Panel, Side (R.H.) (Black)
4Panel, Side (R.H.) (Biscuit)
4Panel, Side (R.H.)
5279782 Whirlpool Lid Switch
6WP308685 Whirlpool Microwave Screw
7Panel, Side (L.H.)
7Panel, Side (L.H.) (Biscuit)
7Panel, Side (L.H.) (Black)
7Panel, Side (L.H.)
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
12Top (Silver)
13279640 Whirlpool Dryer Idler Pulley Kit
143978776 Whirlpool Bracket
15WP8066120 Whirlpool Lever Assembly
16Wire, Belt Switch
17Sound Panel
18WPW10121334 Whirlpool Washer
19Assembly, Door Switch
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10354249 Whirlpool Cover
22Ramp, Door
24WP693995 Whirlpool Screw
27279787 Whirlpool Dryer Drive Motor
283398948 Whirlpool Wire
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31W10181903 Whirlpool Bracket
32WP3387118 Whirlpool Base Assembly
33W11628810 Whirlpool Power Cord
34WPW10416072 Whirlpool Elbow
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39W10837240 Whirlpool Dryer Idler Pulley
42WP98129 Whirlpool Screw
43WP488729 Whirlpool Refrigerator Door Screw
44WP3387242 Whirlpool Seal
46W11295573 Whirlpool Clip
50Base, Cabinet
51WPL 8578940
51WPL 8577910
51WPL 8578936
51WPL 8578388
52279570 Whirlpool Dryer Door Latch Kit
55W10181464 Whirlpool Wire Harness
56WP8563727 Whirlpool Bracket
57Control Board
593400826 Whirlpool Screw
61WPL W10116273
61WPL W10116277
61Toe, Panel
61WPL W10116272
62WPL 8519219
63WP692400 Whirlpool Nut
64SCREW
64WPL ARI165776A
66W10470674 Whirlpool Dryer Side Vent Exhaust Kit
