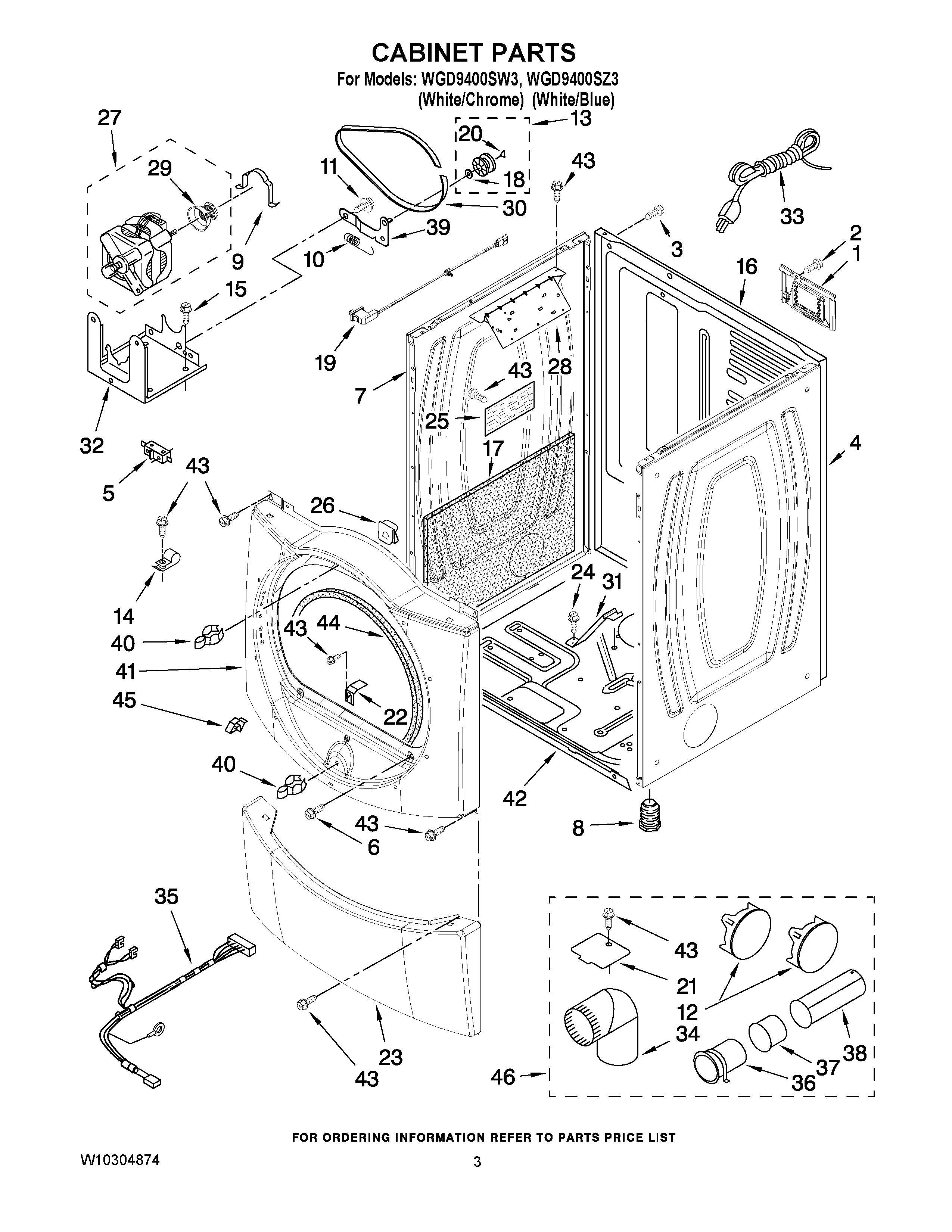

WGD9400SZ3 02 – CABINET PARTS

Products

Position	Product
1	W10819767 Whirlpool Cover
2	WP90767 Whirlpool Screw
3	W10850756 Whirlpool Screw
5	WPW10411937 Whirlpool Switch
6	WP308685 Whirlpool Microwave Screw
7	W11233548 Whirlpool Panel
8	49621 Whirlpool Leveling Feet
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	279640 Whirlpool Dryer Idler Pulley Kit
14	3978776 Whirlpool Bracket
15	SCREW
16	PANEL, REAR
17	W10123956 Whirlpool Sound Absorber
18	WPW10121334 Whirlpool Washer
19	W10128087 Whirlpool Door Switch
21	WPW10354249 Whirlpool Cover
22	Ramp, Door
23	TOE-PANEL (WHITE)
24	WP693995 Whirlpool Screw
25	CONTROL BOARD
26	Clip, Mounting (2)
27	279787 Whirlpool Dryer Drive Motor
28	WP8563727 Whirlpool Bracket
29	W10837625 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	W10181903 Whirlpool Bracket
32	W11481730 Whirlpool Bracket
33	W11628810 Whirlpool Power Cord
34	WPW10416072 Whirlpool Elbow
35	HARNESS, DIGITAL INTERFACE
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
39	W10837240 Whirlpool Dryer Idler Pulley
40	279570 Whirlpool Dryer Door Latch Kit
41	WPL W10180423
42	BASE, CABINET
43	WP488729 Whirlpool Refrigerator Door Screw
44	WP3387242 Whirlpool Seal
45	W11295573 Whirlpool Clip
46	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
