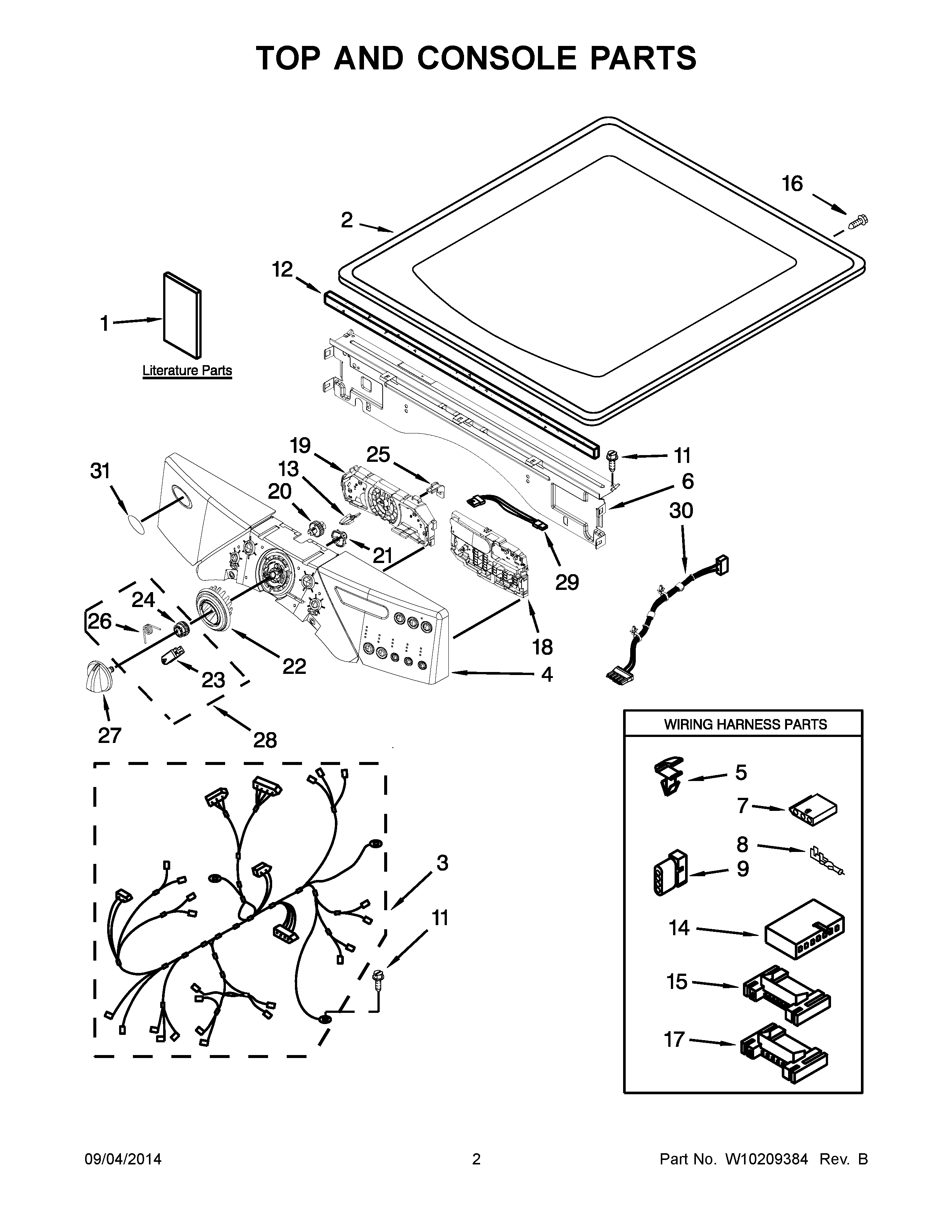

WGD9400VE0 02 – TOP AND CONSOLE PARTS
Written by
in
WGD9400VE0 02 – TOP AND CONSOLE PARTS
Products
Position
Product
1A
TECH SHEET
1B
GUIDE, QUICK START
1
USE & CARE GUIDE
2
TOP (SAPPHIRE)
3
W10111011 Whirlpool Wire Harness
4
PANEL, CONSOLE
5
WP3394427 Whirlpool Clip
6
Bracket, Console (Includes No.12)
7
353424 Whirlpool Connector
8
WP94614 Whirlpool Terminal
9
3936144 Whirlpool Connector
10
WP596797 Whirlpool Terminal
12
W10112267 Whirlpool Seal Assembly
13
W10012480 Whirlpool WP Dishwasher Encoder Adapt Wheel
14
3936150 Whirlpool Connector
15
3395683 Whirlpool Connector
16
WP488729 Whirlpool Refrigerator Door Screw
17
2203186 Whirlpool Connector
18
USER INTERFACE (RIGHT)
19
USER INTERFACE (CENTER)
20
Encoder-Wheel
21
Retainer-Snap
22
KNOB, LIGHT RING (INCLUDES: ITEM 21)
23
Rast, Wheel Assy. (Service Only With Item. 28)
24
DETENT WHEEL
25
W10112268 Whirlpool Clip
26
Knob, Spring (Service Only With Item 28)
27
KNOB, CONTROL
28
Encoder, Wheel Kit (Includes Items: 23, 24, & 26
29
Harness, Communication
30
WPL W10111020
31
Medallion
←
