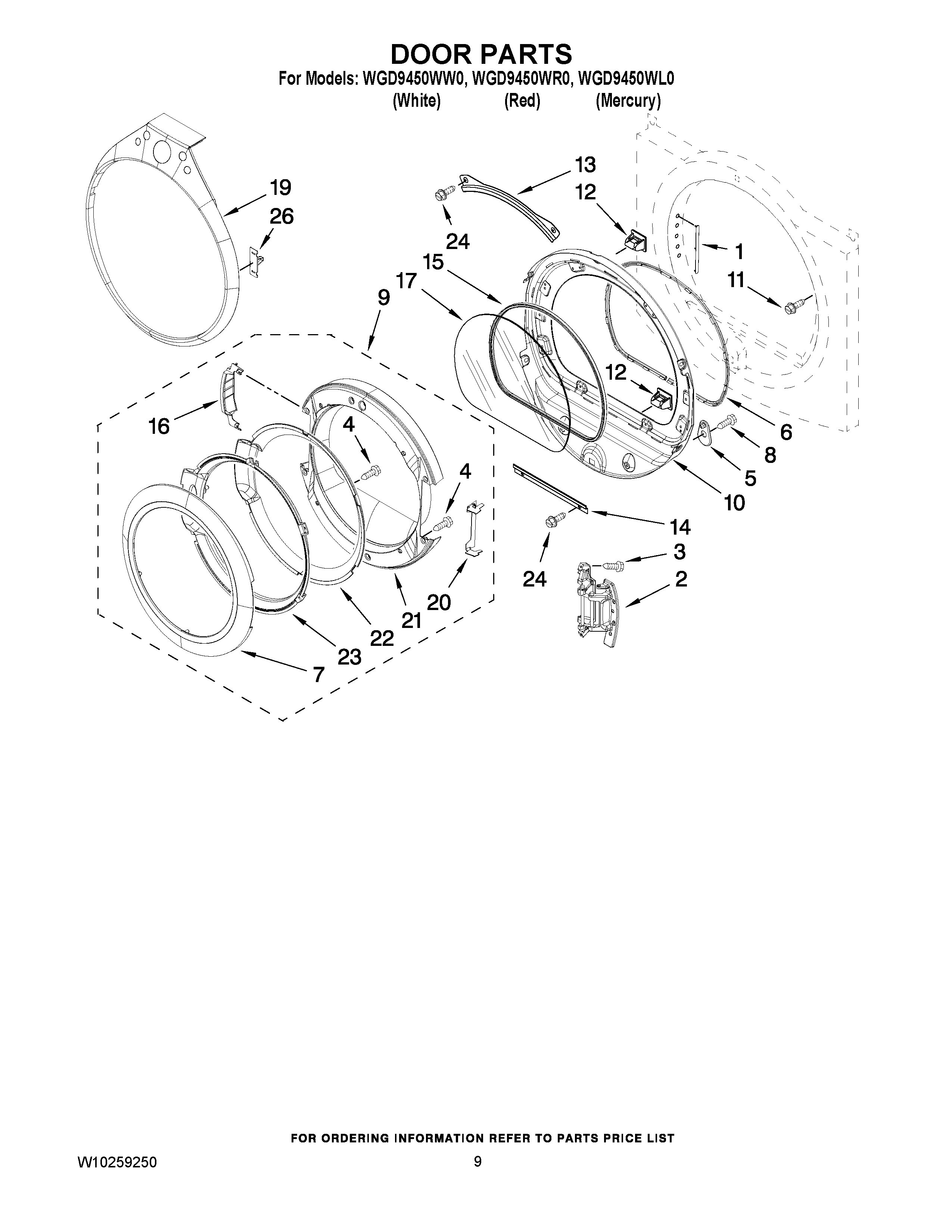

WGD9450WL0 05 – DOOR PARTS

Products

Position	Product
1	W10085210 Whirlpool Label
2	WPW10310366 Whirlpool Hinge
3	WPW10159996 Whirlpool Screw
4	SCREW
5	Screw-Plug
6	WPW10139457 Whirlpool Door Seal
7	Handle, Ring Door (Silver)
8	Screw, 1/4-20 x 1/2
9	Door Assembly (Outer) (Silver)
10	Door Assembly (Inner) (Includes Illus. 12 & 18)
11	WP355515 Whirlpool Screw
12	279570 Whirlpool Dryer Door Latch Kit
13	8519356 Whirlpool Retainer
14	W10822054 Whirlpool Retainer
15	8579662 Whirlpool Seal
16	COVER HINGE (STATIONARY (RH))
16	Cover-Hinge, Stationary (LH)
17	WP8566254 Whirlpool Window Assembly
19	TEAR-DROP TRIM & CLIP ASSEMBLY (RED)
19	TEAR-DROP TRIM & CLIP ASSEMBLY (WHITE)
19	TEAR-DROP TRIM & CLIP ASSEMBLY (MERCURY)
20	Door Shield
21	Door, Intermediate
22	Door Mask
23	Door Screen
24	WP3373329 Whirlpool Dishwasher Screw
26	WPW10129065 Whirlpool Clip
