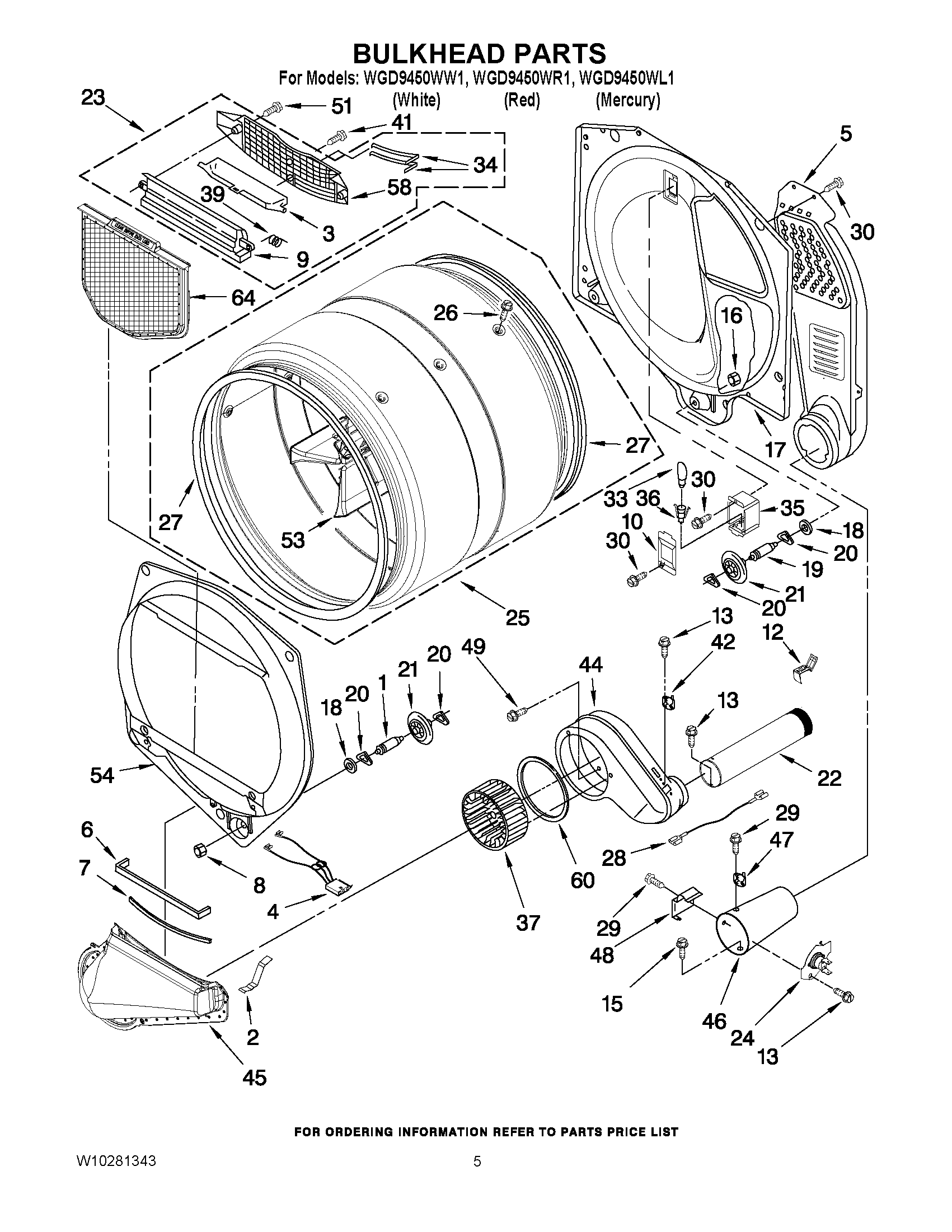

WGD9450WL1 03 – BULKHEAD PARTS

WGD9450WL1 03 – BULKHEAD PARTS

Written by

in

WGD9450WL1 03 – BULKHEAD PARTS

Products

PositionProduct
1SHAFT
2WP8066208 Whirlpool Clip
3W11222846 Whirlpool Door
4WP3406653 Whirlpool Wire Harness
5W11168650 Whirlpool Air Duct
6WP697813 Whirlpool Seal
8WPW10080210 Whirlpool Nut
9W11129408 Whirlpool Out Housing
10W11226088 Whirlpool Lens Assembly
12W11684573 Whirlpool Clip Assembly
13WP90767 Whirlpool Screw
15WP693995 Whirlpool Screw
16WPW10080190 Whirlpool Nut
17WPW10080170 Whirlpool Bulkhead Assembly
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
22279936 Whirlpool Exhaust Pipe
23W10253353 Whirlpool Outer Housing
24WP8573713 Whirlpool Thermal Fuse
25W10545924 Whirlpool Drum Assembly
26W10853898 Whirlpool Screw
27280114 Whirlpool Dryer Drum Seal
28JUMPER, TCO HIGH LIMIT
30WP488729 Whirlpool Refrigerator Door Screw
33WP22002263 Whirlpool Dryer 10W Light Bulb
34WP3387223 Whirlpool Electrode Assembly
358578825 Whirlpool Bracket
36W11700522 Whirlpool Socket
37WP697772 Whirlpool Dryer Blower Wheel
39WP3394986 Whirlpool Spring
42WP8577274 Whirlpool Dryer Thermistor
44W10888146 Whirlpool Housing
45WPW10128606 Whirlpool Lint Duct
46WP8573824 Whirlpool Funnel
47WP8573028 Whirlpool Thermostat Assembly
48WP338906 Whirlpool Dryer Gas Sensor
49WP489463 Whirlpool Refrigerator Screw
51WP3387230 Whirlpool Screw
53WPW10113136 Whirlpool Drum Baffle
54Bulkhead, Front
58W11086603 Whirlpool Dryer Link Screen Air Grille
60WP697770 Whirlpool Blower Cover Plate Seal
64W10120998 Whirlpool Dryer Lint Screen Filter
