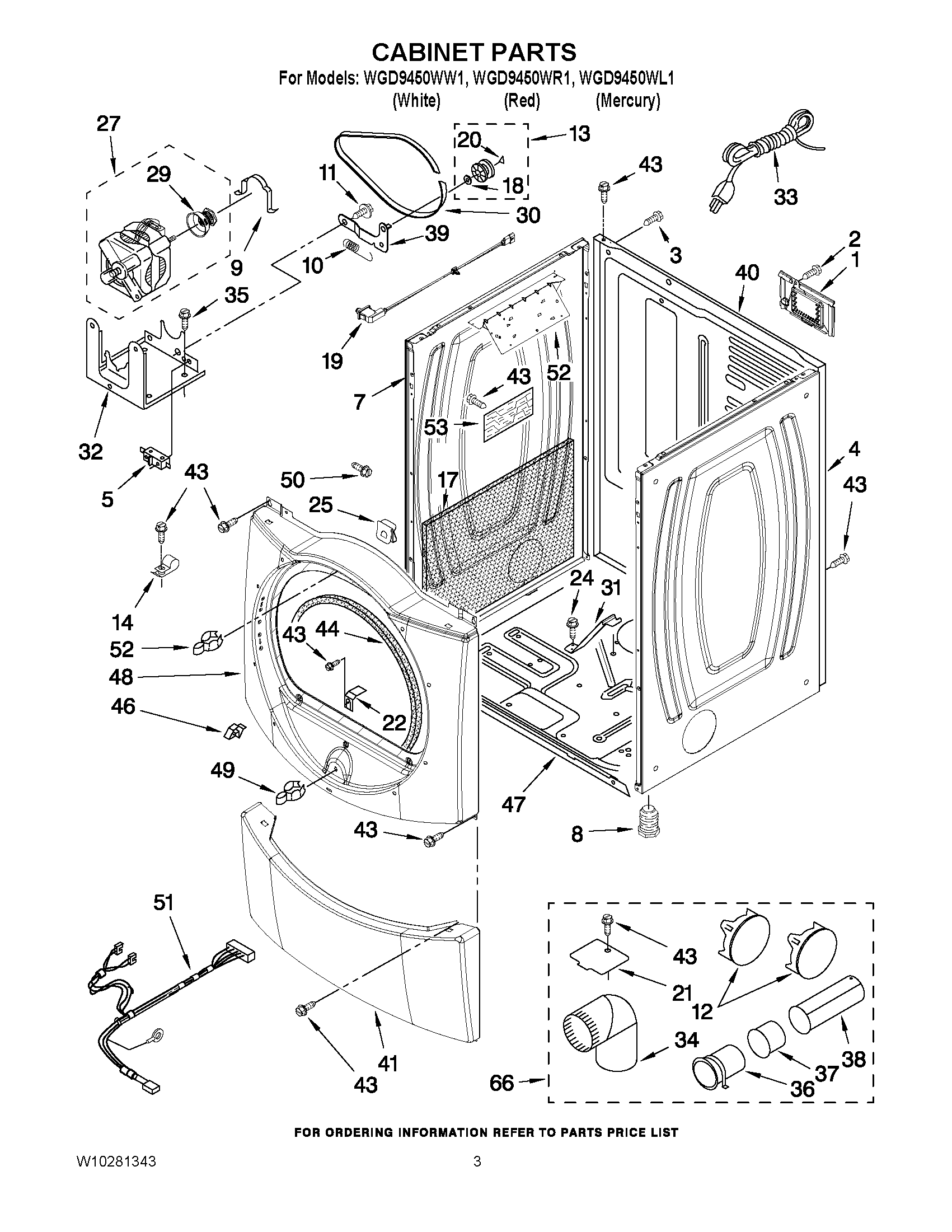

WGD9450WR1 02 – CABINET PARTS

Products

PositionProduct
NIW10470674 Whirlpool Dryer Side Vent Exhaust Kit
NI49621 Whirlpool Leveling Feet
1W10819767 Whirlpool Cover
2WP90767 Whirlpool Screw
3303776 Whirlpool Dishwasher Screw
4WPW10249725 Whirlpool Panel
4PANEL, SIDE (R.H.) (RED)
5279782 Whirlpool Lid Switch
7PANEL, SIDE (L.H.) (SILVER)
7W11233548 Whirlpool Panel
7PANEL, SIDE (L.H.) (RED)
9CLAMP
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13279640 Whirlpool Dryer Idler Pulley Kit
143978776 Whirlpool Bracket
17Sound Panel
18WPW10121334 Whirlpool Washer
19W10128087 Whirlpool Door Switch
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10354249 Whirlpool Cover
22Ramp, Door
24WP693995 Whirlpool Screw
25Clip, Mounting (2)
27279787 Whirlpool Dryer Drive Motor
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31W10181903 Whirlpool Bracket
32WP3387118 Whirlpool Base Assembly
33W11628810 Whirlpool Power Cord
34WPW10416072 Whirlpool Elbow
35SCREW
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39W10837240 Whirlpool Dryer Idler Pulley
40PANEL, REAR
41WPL W10249737
41WPL W10250673
41Toe, Panel
43WP488729 Whirlpool Refrigerator Door Screw
44WP3387242 Whirlpool Seal
46W11295573 Whirlpool Clip
47BASE, CABINET
48FRONT PANEL (INCLUDE, ITEM. 7) (MERCURY)
48FRONT PANEL (RED)
48WPL W10180423
49279570 Whirlpool Dryer Door Latch Kit
51W10181464 Whirlpool Wire Harness
52WP8563727 Whirlpool Bracket
53BOARD, CONTROL
