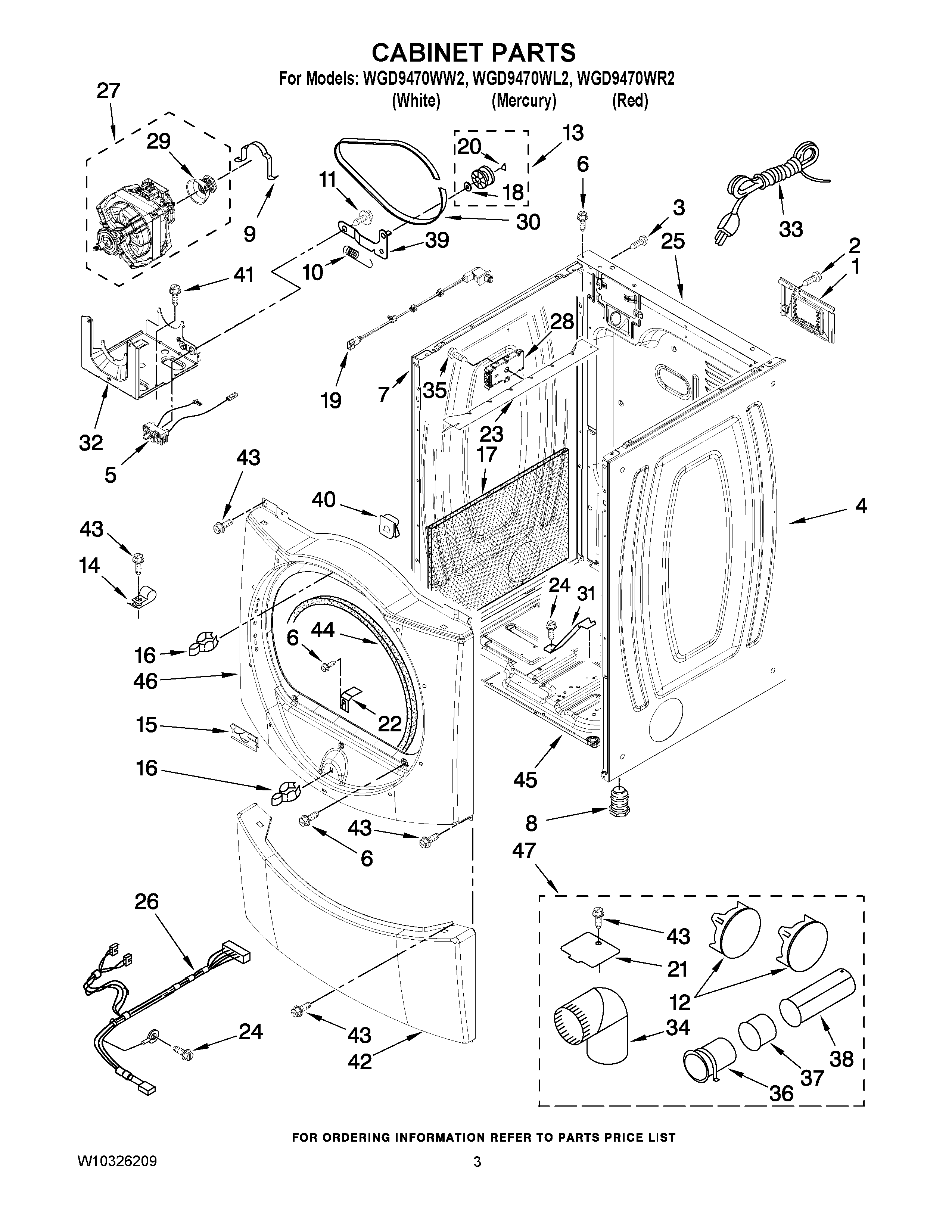

WGD9470WL2 02 – CABINET PARTS

WGD9470WL2 02 – CABINET PARTS

Written by

in

WGD9470WL2 02 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1W10819767 Whirlpool Cover
2WP90767 Whirlpool Screw
3W10850756 Whirlpool Screw
4PANEL, SIDE (R.H.) (RED)
4WPW10249725 Whirlpool Panel
5WPW10411937 Whirlpool Switch
6WP308685 Whirlpool Microwave Screw
7W11233548 Whirlpool Panel
7PANEL, SIDE (L.H.) (RED)
7PANEL, SIDE (L.H.) (SILVER)
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13279640 Whirlpool Dryer Idler Pulley Kit
143978776 Whirlpool Bracket
15W11295573 Whirlpool Clip
16279570 Whirlpool Dryer Door Latch Kit
17W10123956 Whirlpool Sound Absorber
18WPW10121334 Whirlpool Washer
19W10128087 Whirlpool Door Switch
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10354249 Whirlpool Cover
22Ramp, Door
23WP8563727 Whirlpool Bracket
24WP693995 Whirlpool Screw
25PANEL, REAR
26HARNESS, DIGITAL INTERFACE
27279787 Whirlpool Dryer Drive Motor
28CONTROL BOARD
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31W10181903 Whirlpool Bracket
32W11481730 Whirlpool Bracket
33W11628810 Whirlpool Power Cord
34WPW10416072 Whirlpool Elbow
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39W10837240 Whirlpool Dryer Idler Pulley
40Clip, Mounting (2)
41SCREW
42TOE-PANEL (WHITE)
42PANEL, TOE (RED)
42TOE PANEL (MERCURY)
43WP489463 Whirlpool Refrigerator Screw
44WP3387242 Whirlpool Seal
45BASE, CABINET
46WPL W10180423
46FRONT PANEL (RED)
46FRONT PANEL (INCLUDE, ITEM. 7) (MERCURY)
47W10470674 Whirlpool Dryer Side Vent Exhaust Kit
