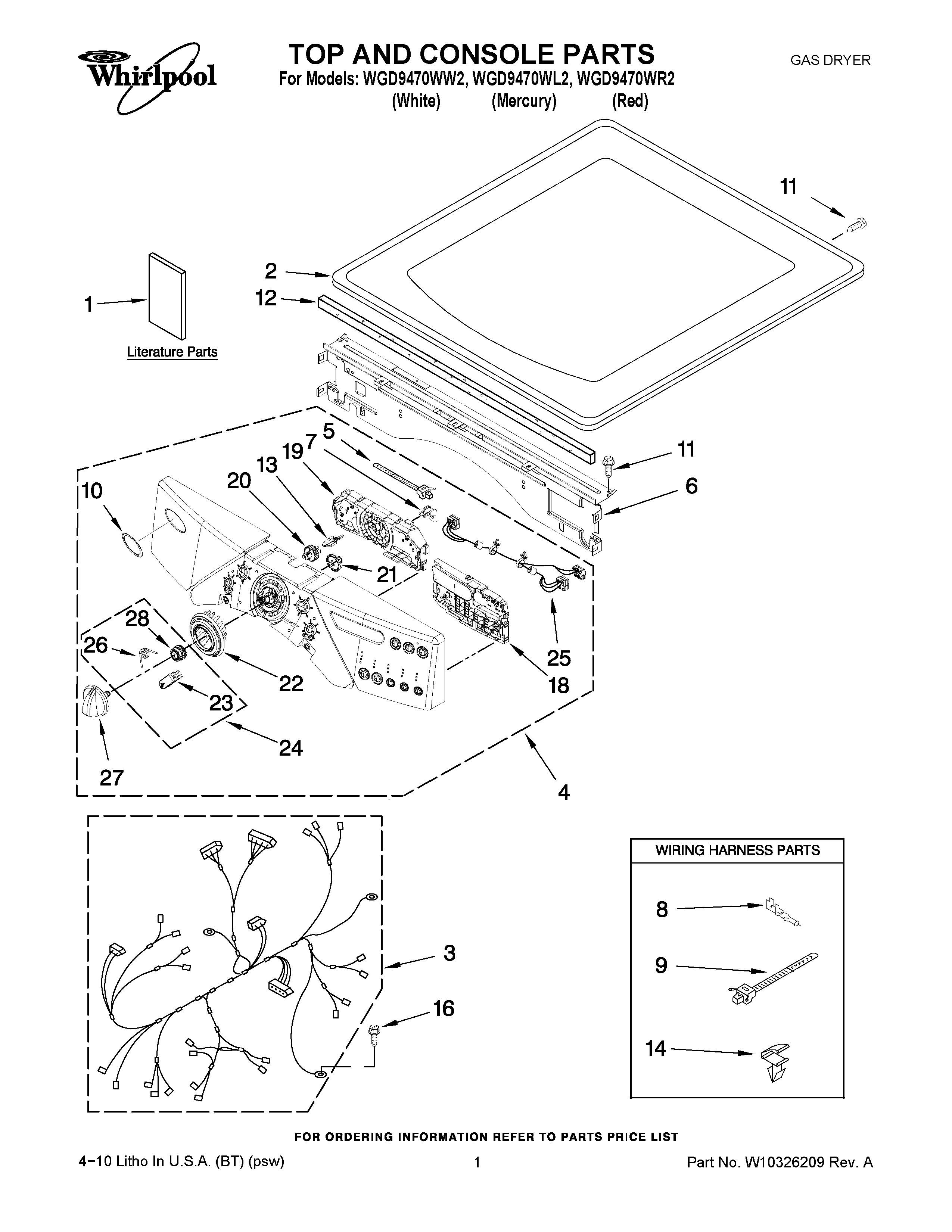

WGD9470WW2 01 – TOP AND CONSOLE PARTS

WGD9470WW2 01 – TOP AND CONSOLE PARTS

Written by

in

WGD9470WW2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1INSTALLATION, INSTRUCTION
1TECH SHEET
2Top (White)
2TOP (RED)
2TOP (MERCURY)
3W10111069 Whirlpool Wire Harness
4PANEL, CONSOLE (INCLUDE ITEMS, (WHITE)
4PANEL, CONSOLE (INCLUDE ITEMS, (MERCURY)
4PANEL, CONSOLE (INCLUDE ITEMS, 5,7,10,13,18,19, 20,21,22,24,25 & 27 ) (RED)
6BRACKET, CONSOLE (INCLUDE, ITEM. 12)
7W10112268 Whirlpool Clip
8WP94614 Whirlpool Terminal
9WP3391018 Whirlpool Wire Tie
10Medallion
11WP489463 Whirlpool Refrigerator Screw
12W10112267 Whirlpool Seal Assembly
13W10012480 Whirlpool WP Dishwasher Encoder Adapt Wheel
14WP3394427 Whirlpool Clip
16WP693995 Whirlpool Screw
18USER INTERFACE (RIGHT)
19USER-INTERFACE CENTER (INCLUDE, ITEM. 11 )
20Encoder-Wheel
21Retainer-Snap
22W10250089 Whirlpool Ring
23RAST, WHEEL ASSY. (SERVICE ONLY WITH ITEM. 24)
24Encoder, Wheel Kit (Includes Items: 23, 24, & 26
25W10242906 Whirlpool Wire Harness
26Knob, Spring (Service Only With Item 28)
27W10190685 Whirlpool Knob Assembly
28DETENT WHEEL (SERVICE ONLY WITH ITEM. 19 )
