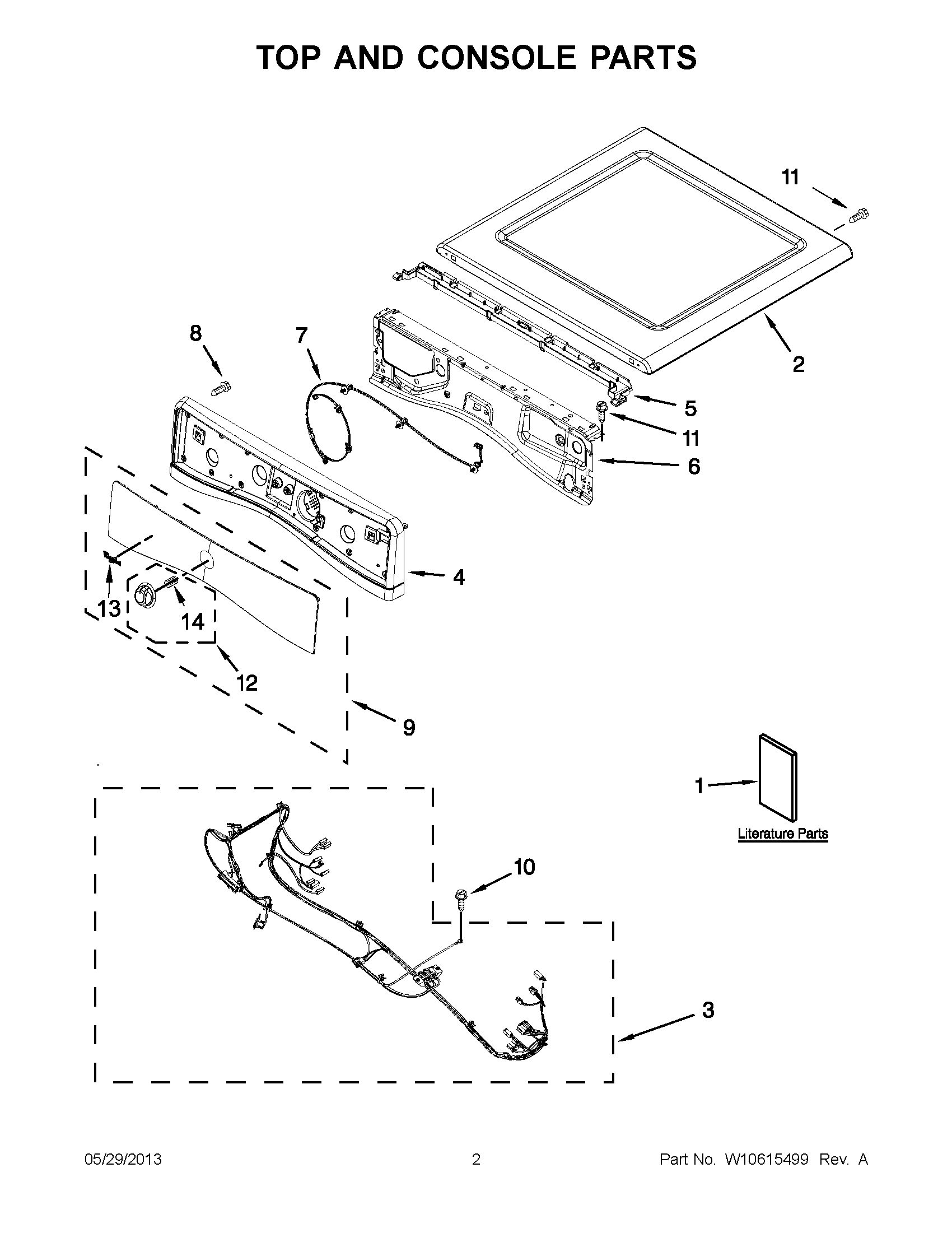

WGD94HEAC1 01 – TOP AND CONSOLE PARTS

WGD94HEAC1 01 – TOP AND CONSOLE PARTS

Written by

in

WGD94HEAC1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1OWNERS MANUAL
1INSTALLATION INSTRUCTIONS
1WIRING DIAGRAM
2WPW10208383 Whirlpool Top Panel
2WPW10460919 Whirlpool Top
3HARNESS, MAIN WIRING
4WPW10446407 Whirlpool Console
4WPW10463687 Whirlpool Console Assembly
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W10837344 Whirlpool Wire Harness
8W10853898 Whirlpool Screw
9WPW10446445 Whirlpool Control Panel
9WPW10446446 Whirlpool Control Panel
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12KNOB ASSEMBLY
13WPW10393264 Whirlpool Refrigerator Nameplate
13W11178521 Whirlpool Dishwasher Nameplate
14WP8536939 Whirlpool Spring Clip
